Rear Door Quarter Glass Removal/Installation

REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (Vehicles with power window system)

2. Remove the rear beltline molding.

3. Remove the regulator handle. (Vehicles with manual window system) Regulator Handle Removal

4. Remove the rear door trim. Service and Repair

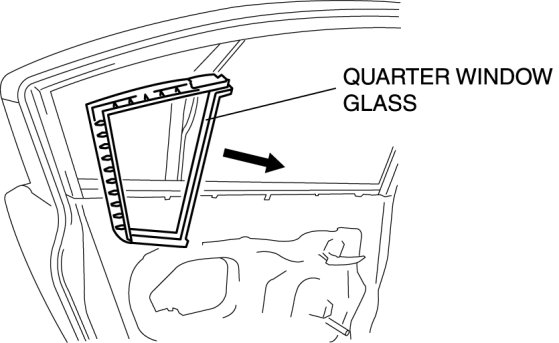

5. Remove the rear door quarter glass.






6. Install in the reverse order of removal.
