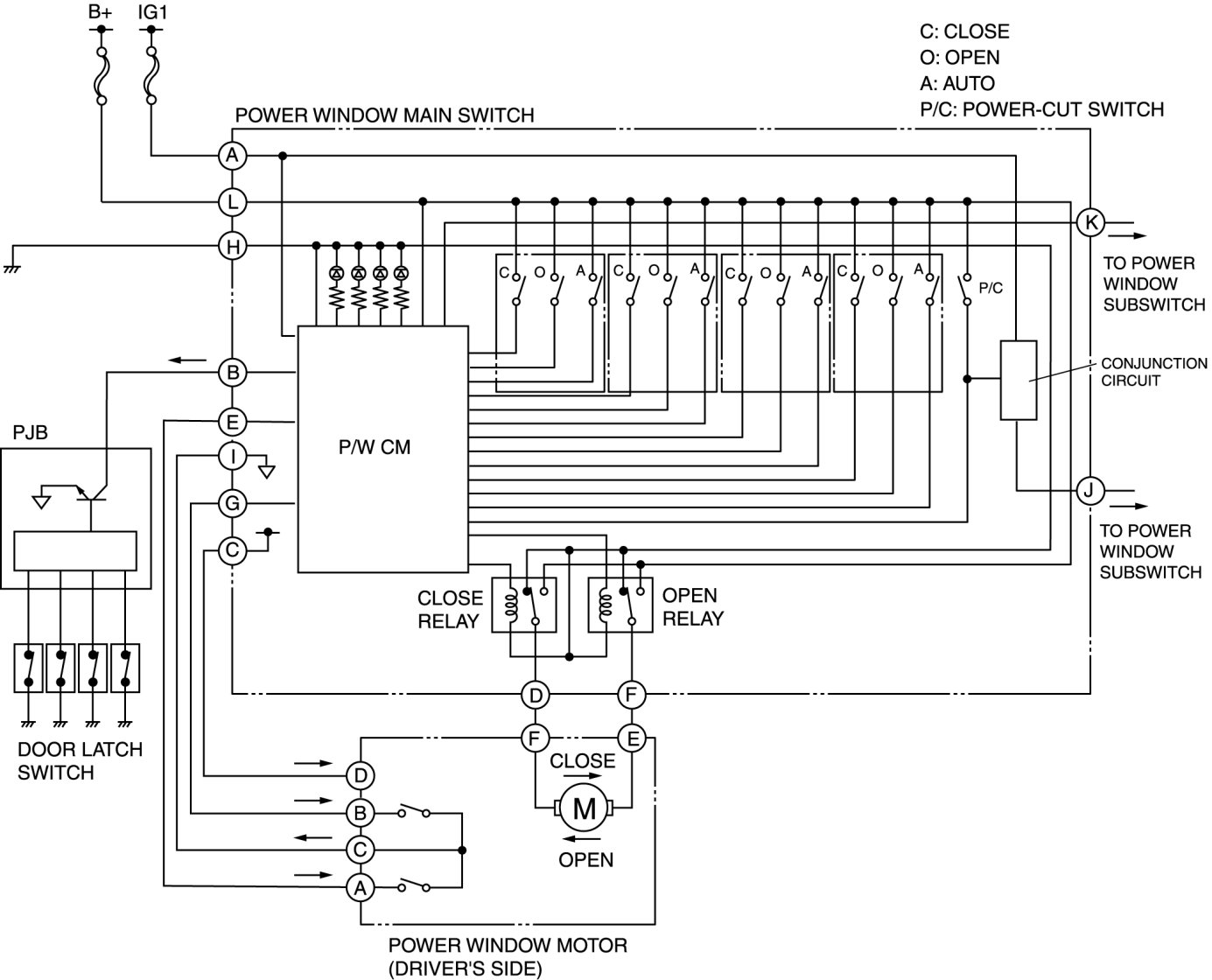

Power Window System Wiring Diagram [Power Window System]




POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEM]
