Component Tests and General Diagnostics




POWER WINDOW SYSTEM PRELIMINARY INSPECTION [POWER WINDOW SYSTEM]

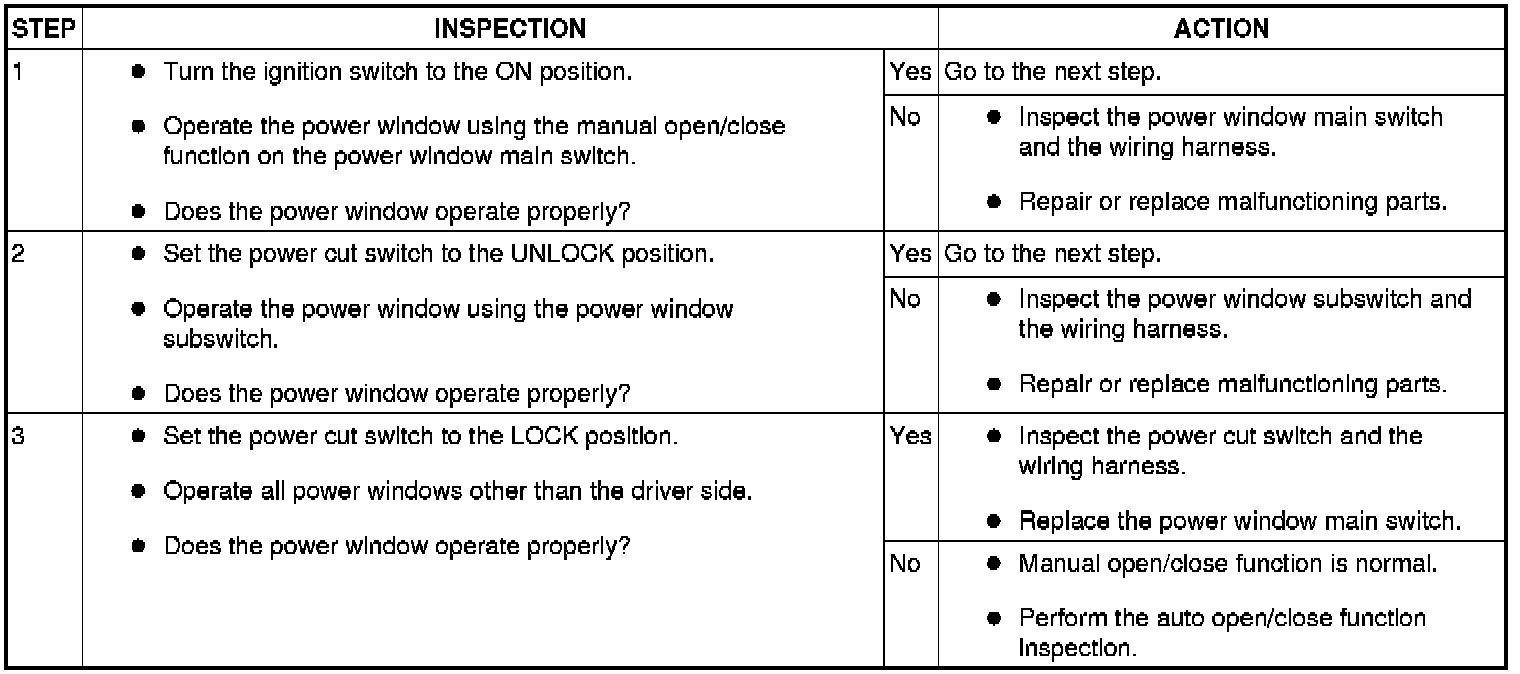

Manual Open/close Function Inspection

Step 1-Step 3:

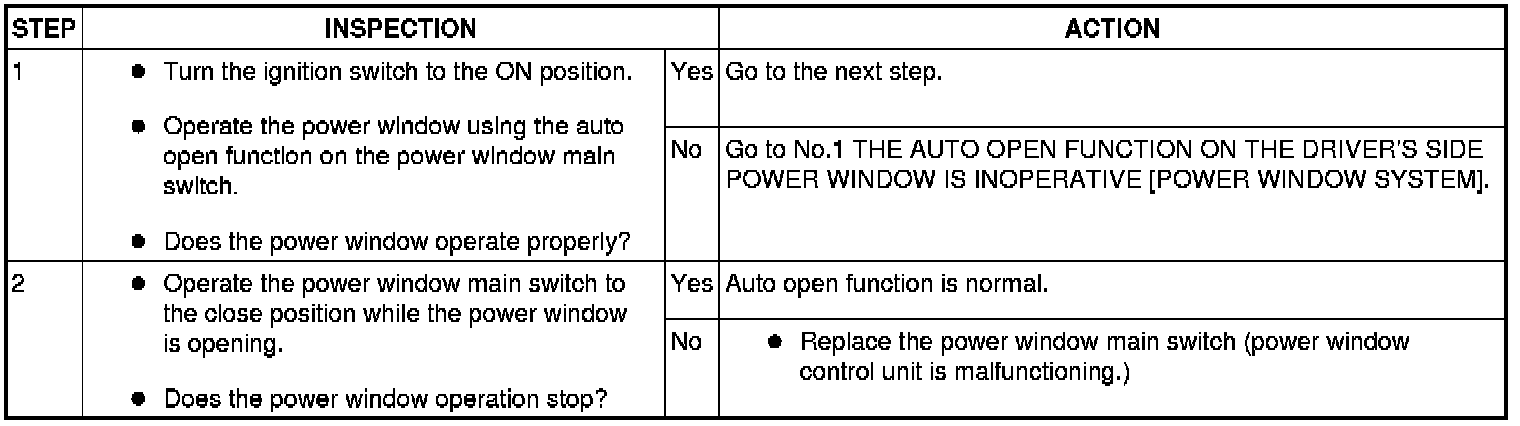

Auto Open Function (Driver's Side) Inspection

Step 1-Step 2:
