Power Window Subswitch Inspection

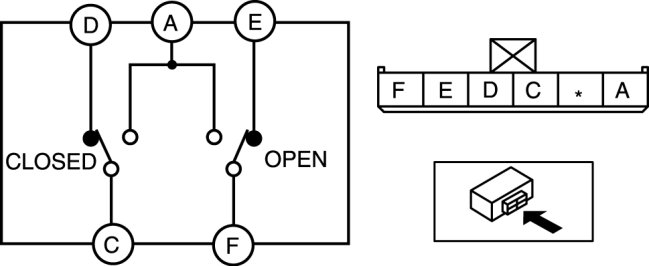

POWER WINDOW SUBSWITCH INSPECTION

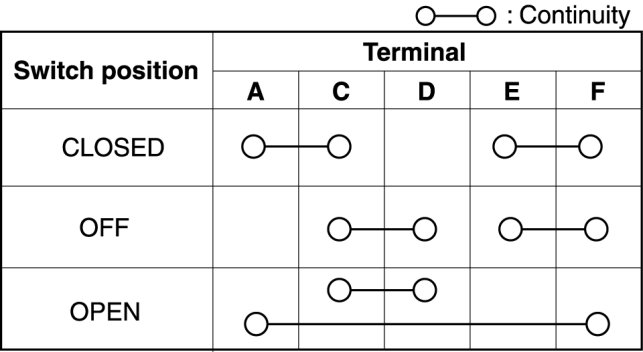

1. Verify continuity as indicated in the table.

- If not as indicated in the table, replace the power window subswitch.
