Connector Locations

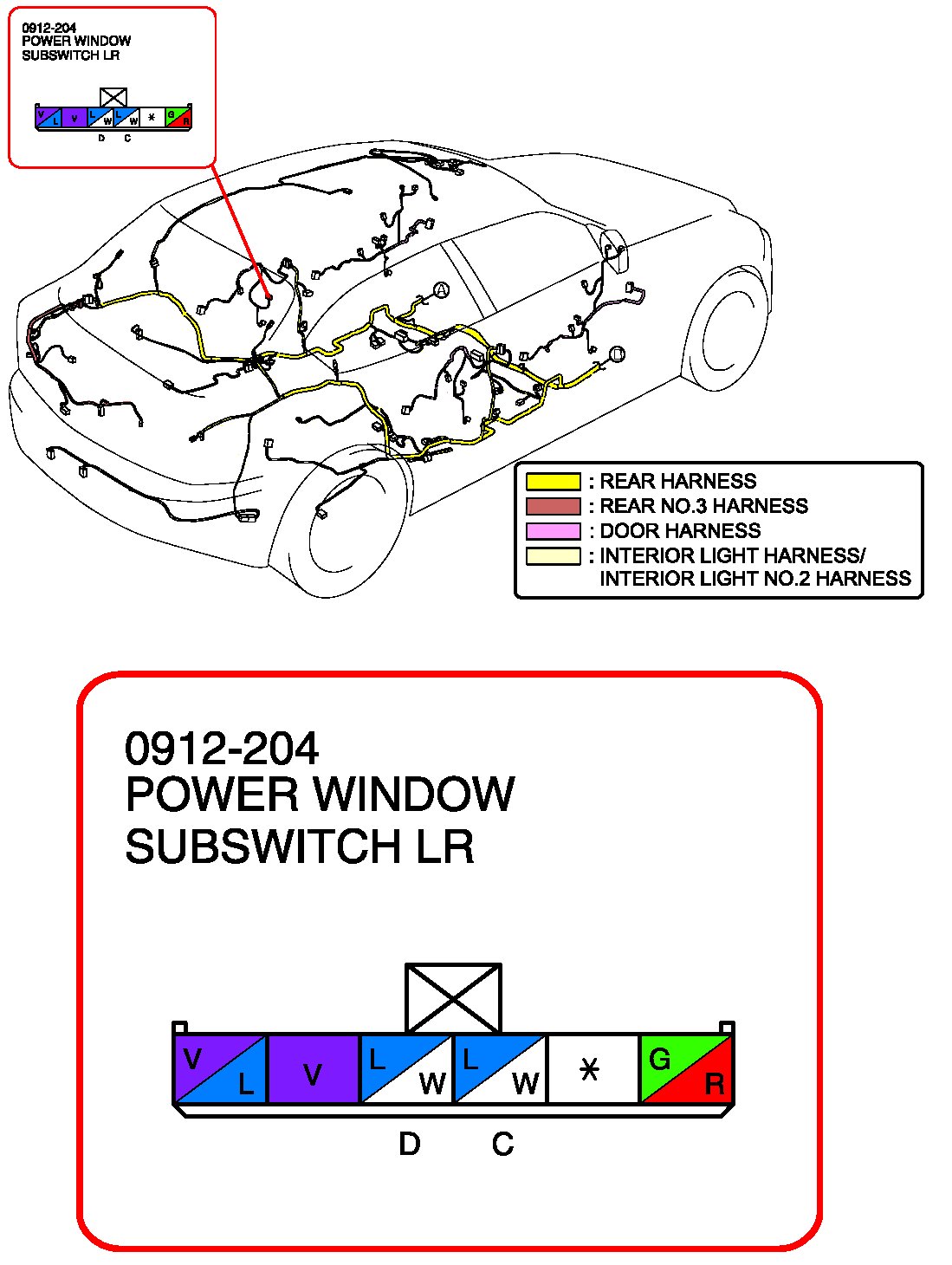

Power Window Subswitch LR:

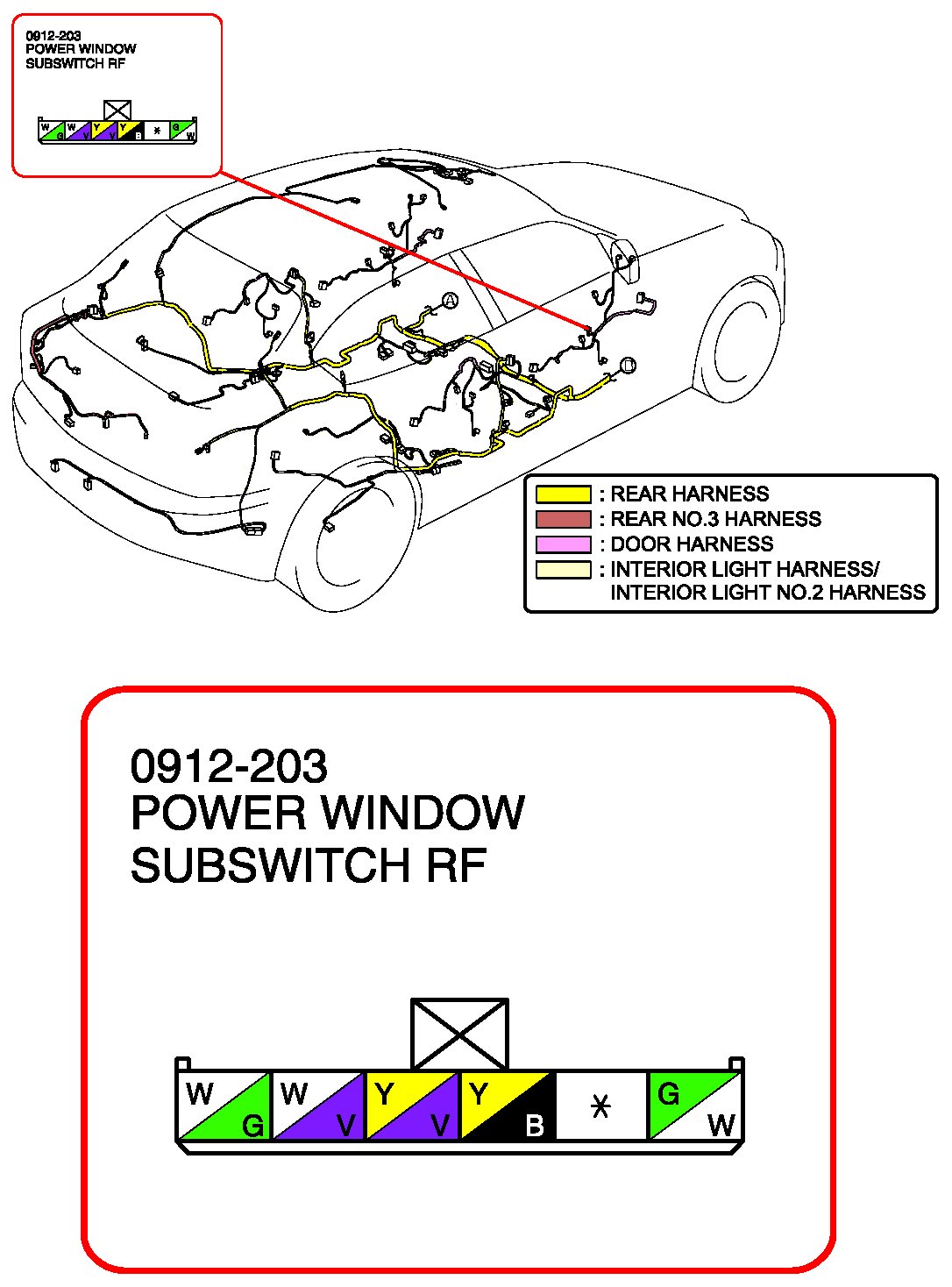

Power Window Subswitch RF:

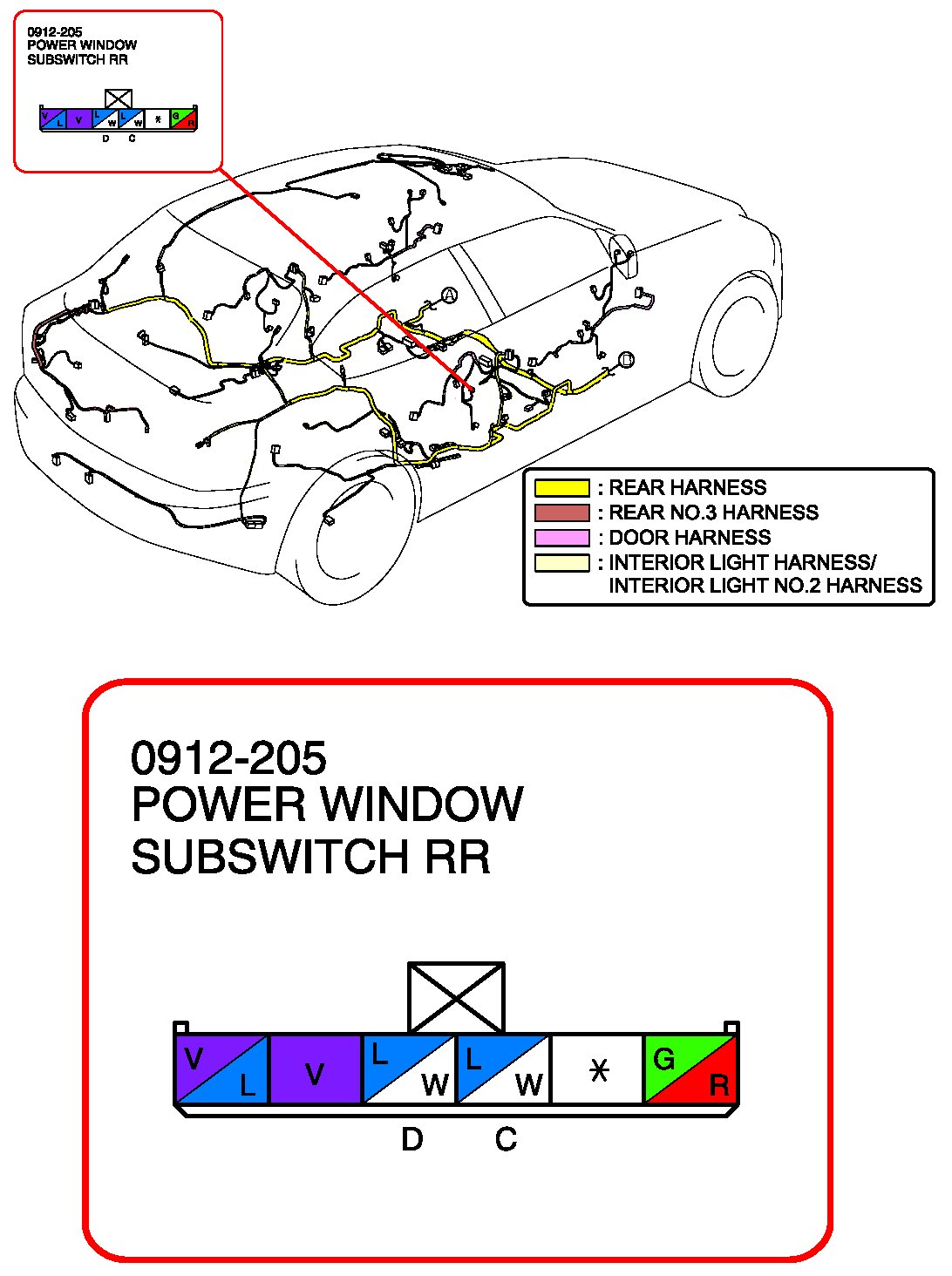

Power Window Subswitch RR:

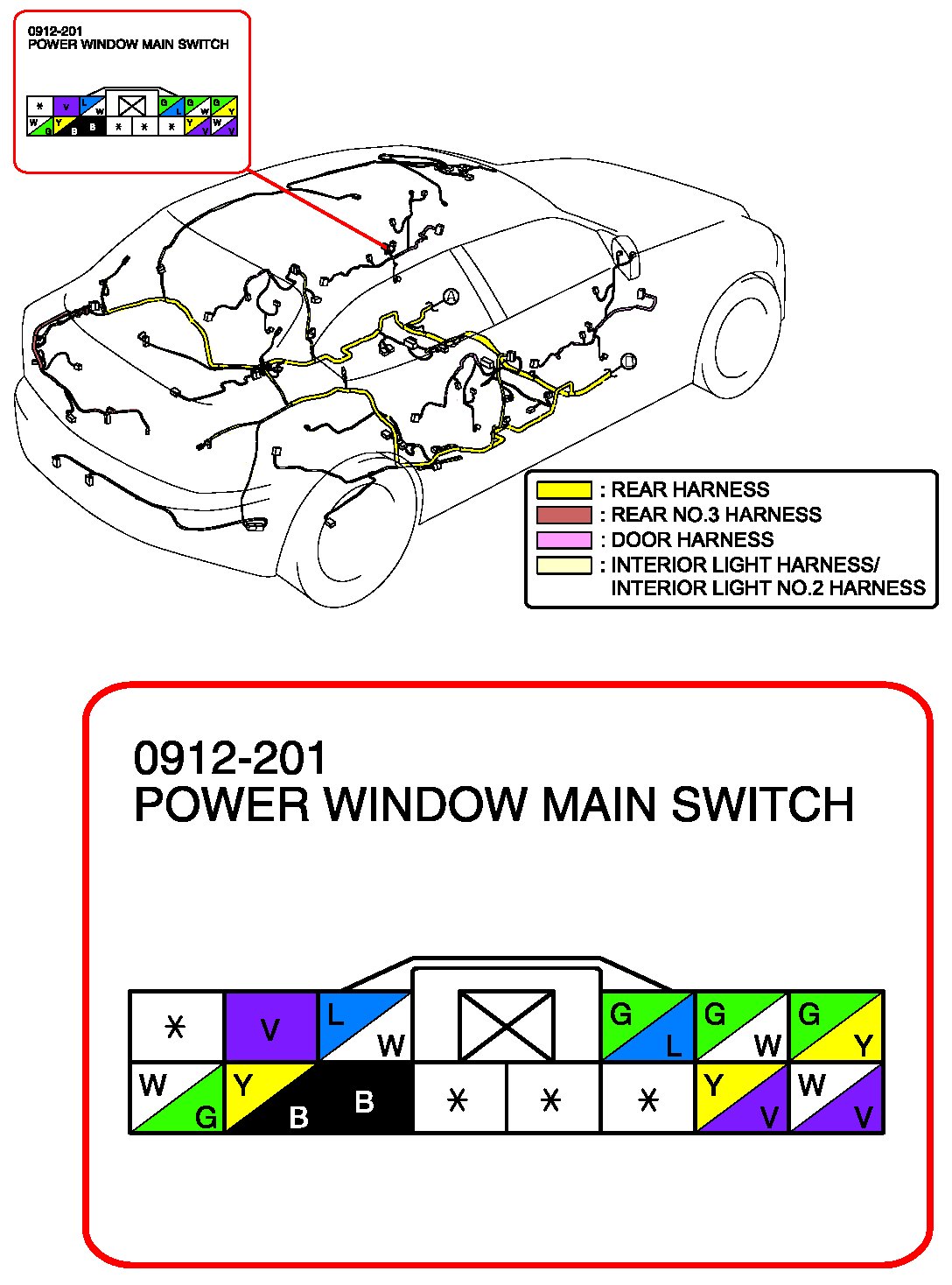

Power Window Main Switch:
