Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Overhaul >> Overhaul Procedures A26M-R >> Shift Component Disassembly/Assembly >> Shift Lever Shaft Bearing Assembly Note

Shift Lever Shaft Bearing Assembly Note

Shift Lever Shaft Bearing Assembly Note

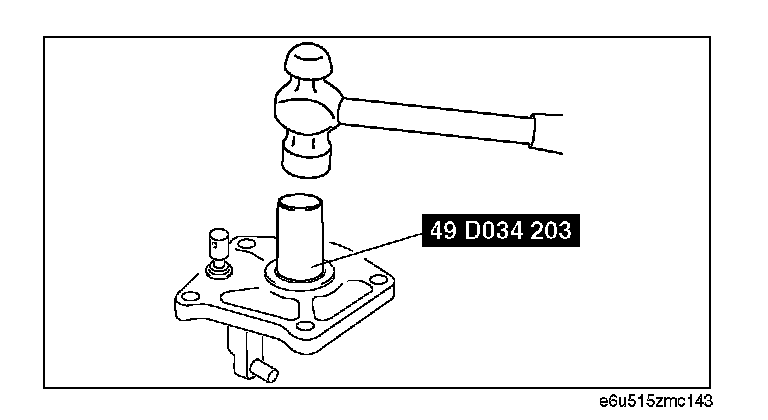

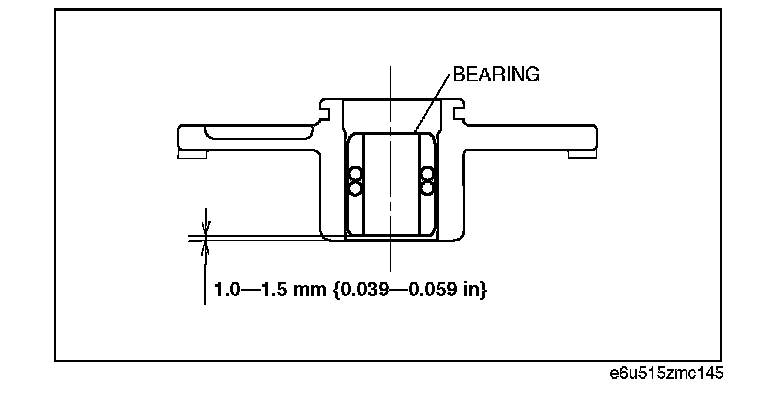

1. Install the bearing using the SST.
