Reverse Gear and Reverse Clutch Hub Disassembly Note

Reverse Gear and Reverse Clutch Hub Disassembly Note

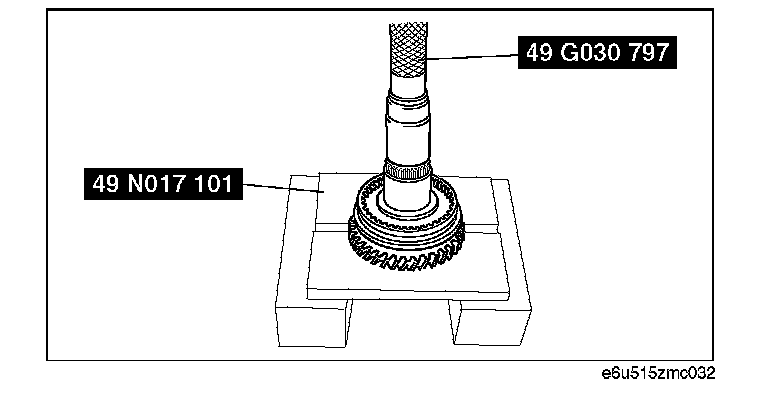

1. Using the SST and a press, remove the reverse gear and reverse clutch hub at the same time.
