6TH Synchronizer Ring Assembly Note

6th Synchronizer Ring Assembly Note

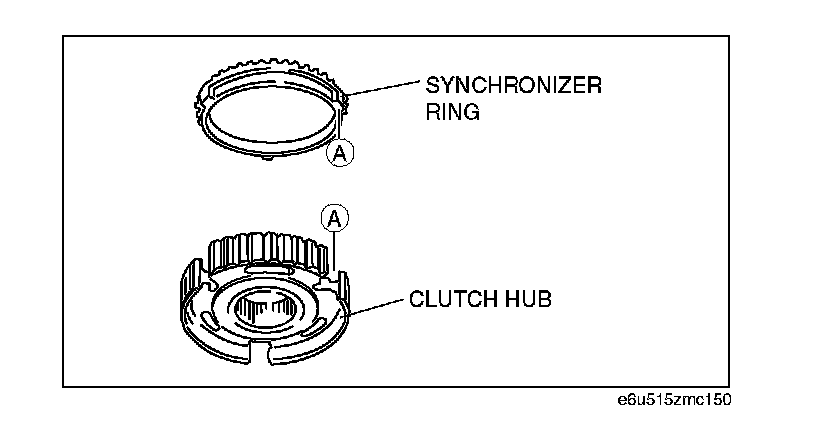

1. Place the 6th synchronizer ring.

Caution: Verify that the synchronizer ring and clutch hub are properly positioned.
