Secondary Shaft (No.1) Components Disassembly

SECONDARY SHAFT (NO.1) COMPONENTS DISASSEMBLY
1. Disassemble in the order shown in the figure.

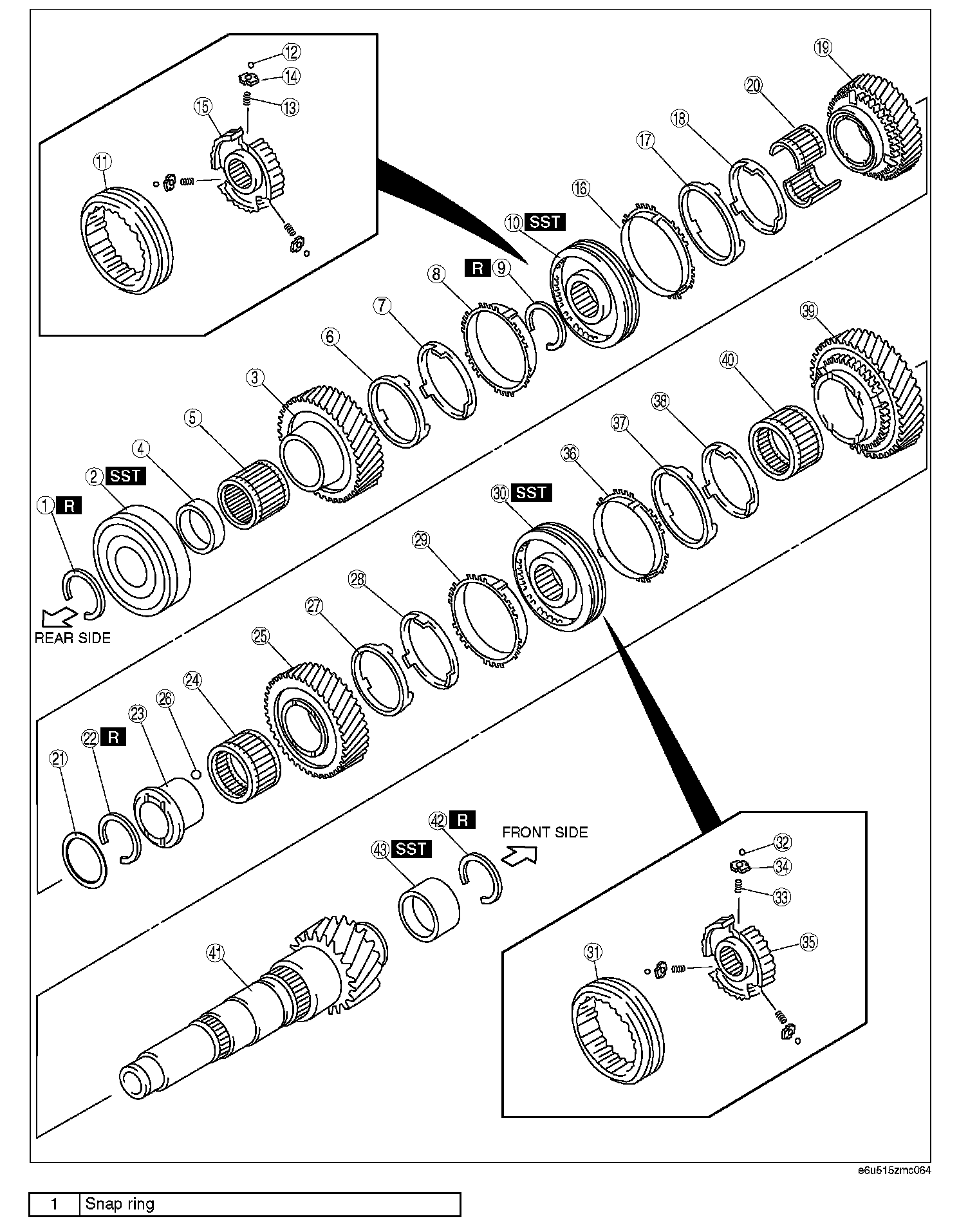

Secondary Shaft (No.1) Components Disassembly (Part 1):

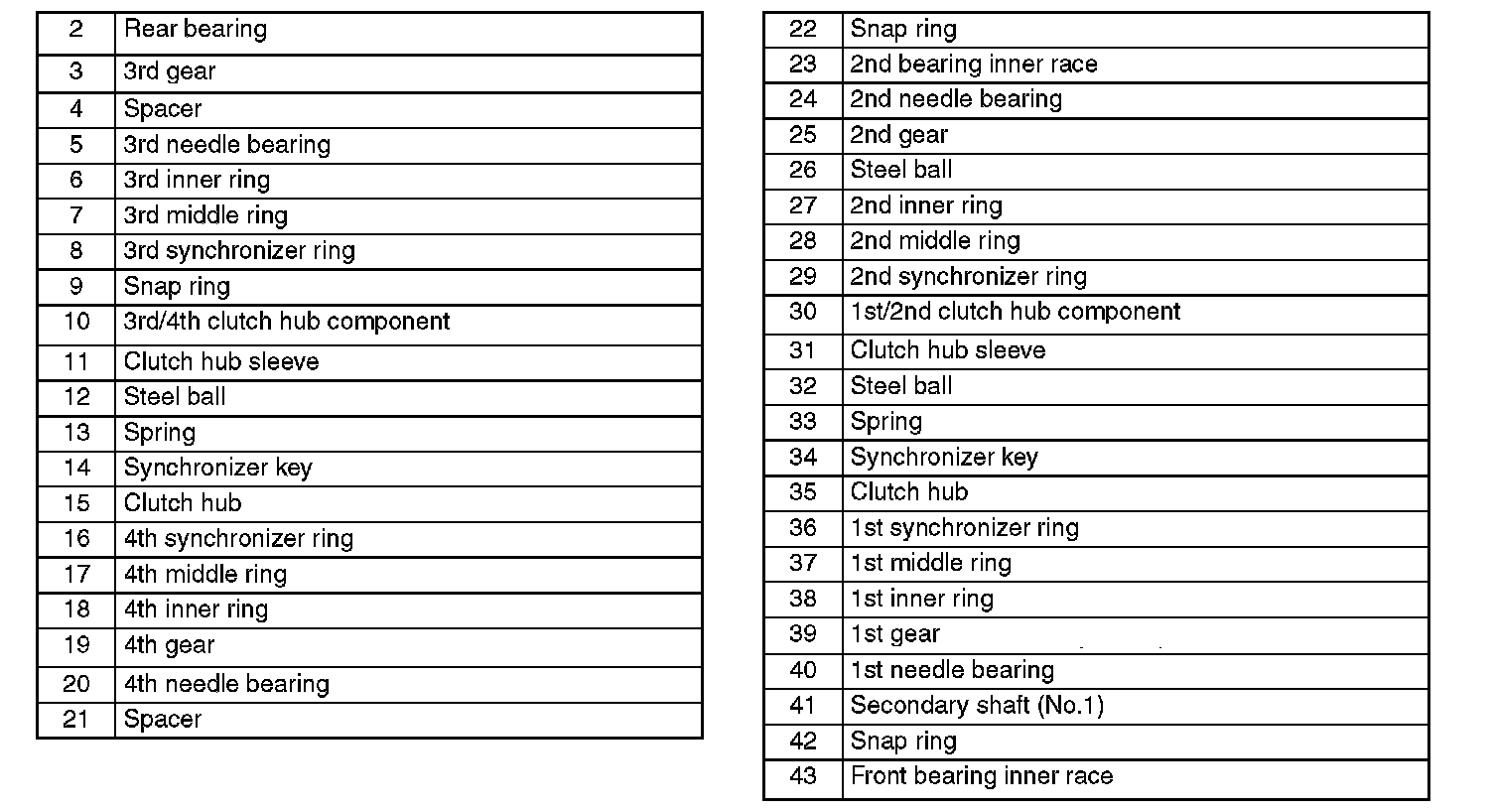

Secondary Shaft (No.1) Components Disassembly (Part 2):
