Secondary Shaft (No.1) Components Disassembly
>>
3RD/4TH Clutch Hub Component and 4TH Gear Disassembly Note
3RD/4TH Clutch Hub Component and 4TH Gear Disassembly Note
3rd/4th Clutch Hub Component and 4th Gear Disassembly Note
1.

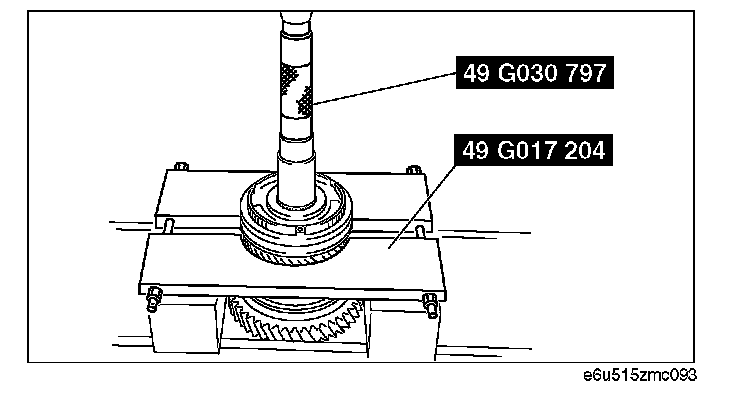

Remove the 4th gear and 3rd/4th clutch hub component at the same time using the SSTs and a press.
