3RD Gear Disassembly Note

3rd Gear Disassembly Note

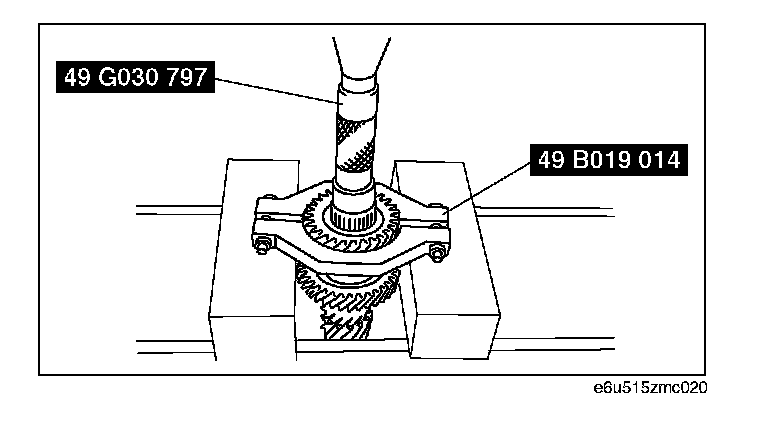

1. Remove the 3rd gear using the SSTs and a press.
