Differential Preinspection
Backlash Inspection

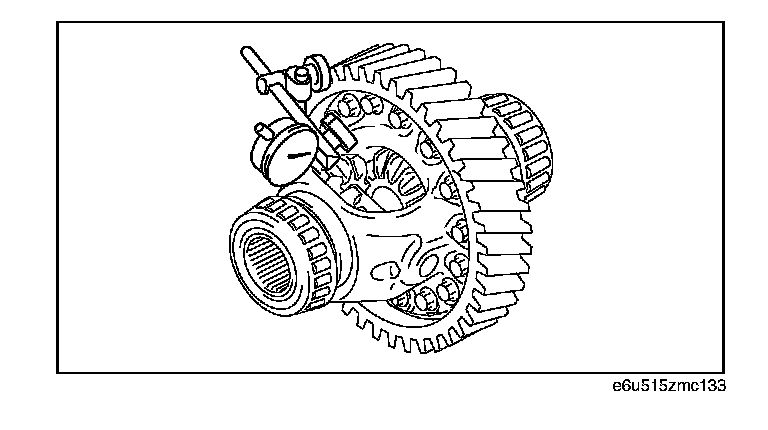

1. Measure the backlash of the side gear.
^ If not as specified, replace the differential gear case component.
Differential side gear backlash standard:
0.05 - 0.20 mm (0.0019 - 0.0078 in)
1. Measure the backlash of the side gear.
^ If not as specified, replace the differential gear case component.
Differential side gear backlash standard:
0.05 - 0.20 mm (0.0019 - 0.0078 in)
