FS5A-EL Transmission
>>
No.8 Does Not Shift To 5Gr
No.8 Does Not Shift To 5Gr
NO.8 DOES NOT SHIFT TO 5GR [FS5A-EL]
Description/Possible Cause:
Diagnostic procedure

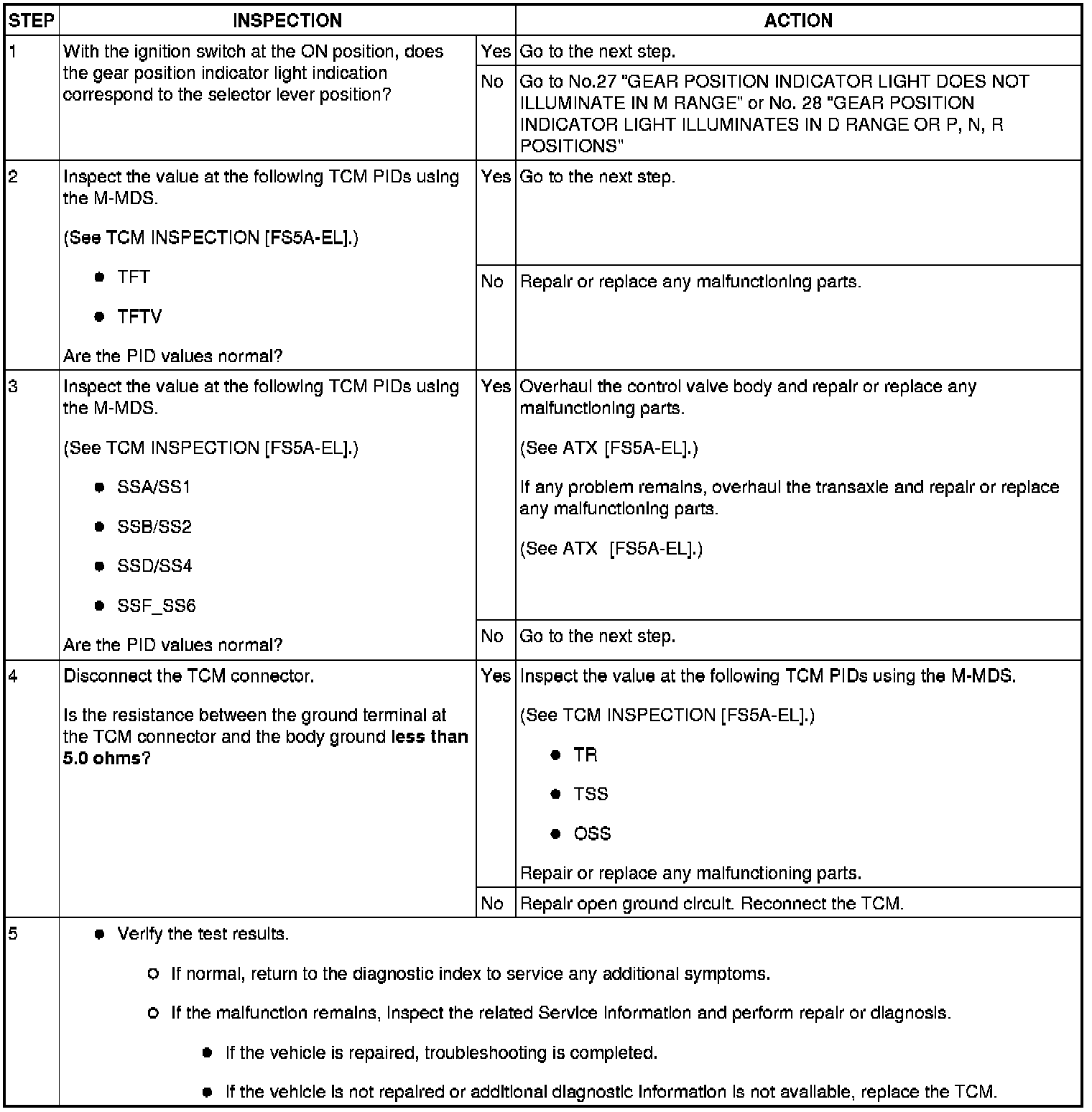

Step 1-Step 5:
