FS5A-EL Transmission
>>
No.29 Does Not Upshift In M Range
No.29 Does Not Upshift In M Range
NO.29 DOES NOT UPSHIFT IN M RANGE [FS5A-EL]

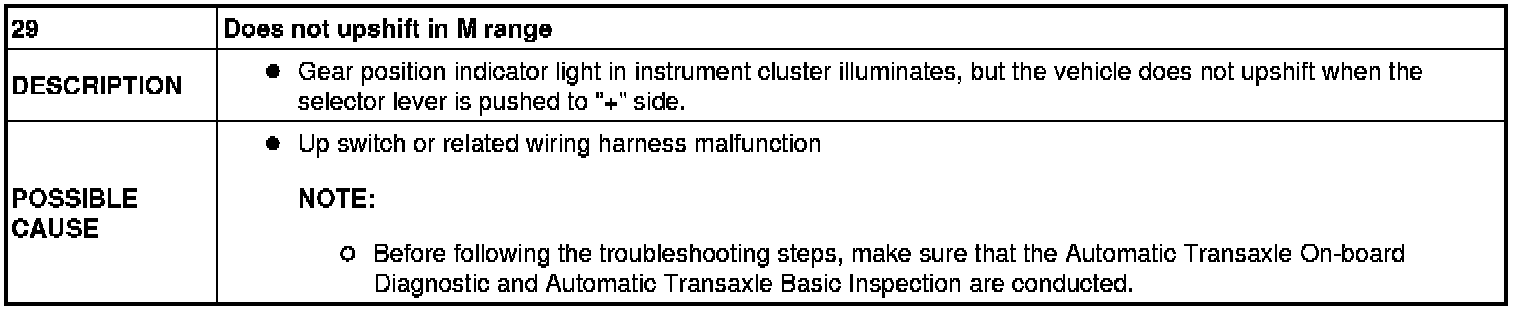

Description/Possible Cause:

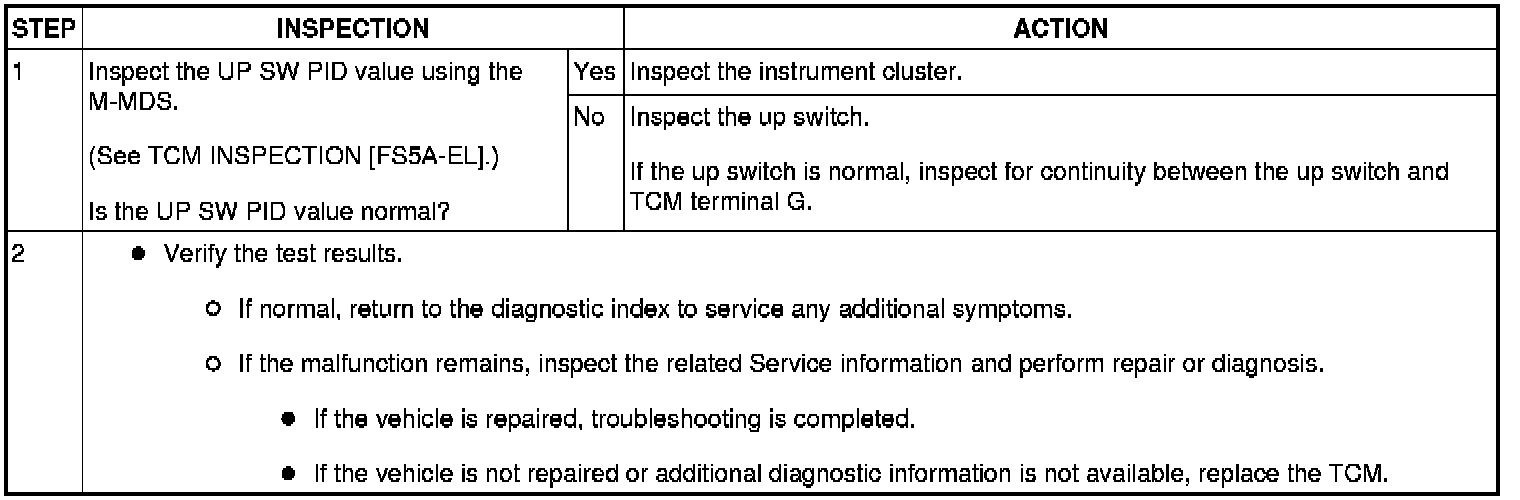

Diagnostic procedure
Step 1-Step 2:
