FS5A-EL Transmission
>>
No.27 Gear Position Indicator Light Does Not Illuminate In D Or M Range
No.27 Gear Position Indicator Light Does Not Illuminate In D Or M Range
NO.27 GEAR POSITION INDICATOR LIGHT DOES NOT ILLUMINATE IN D OR M RANGE [FS5A-EL]
Description/Possible Cause:

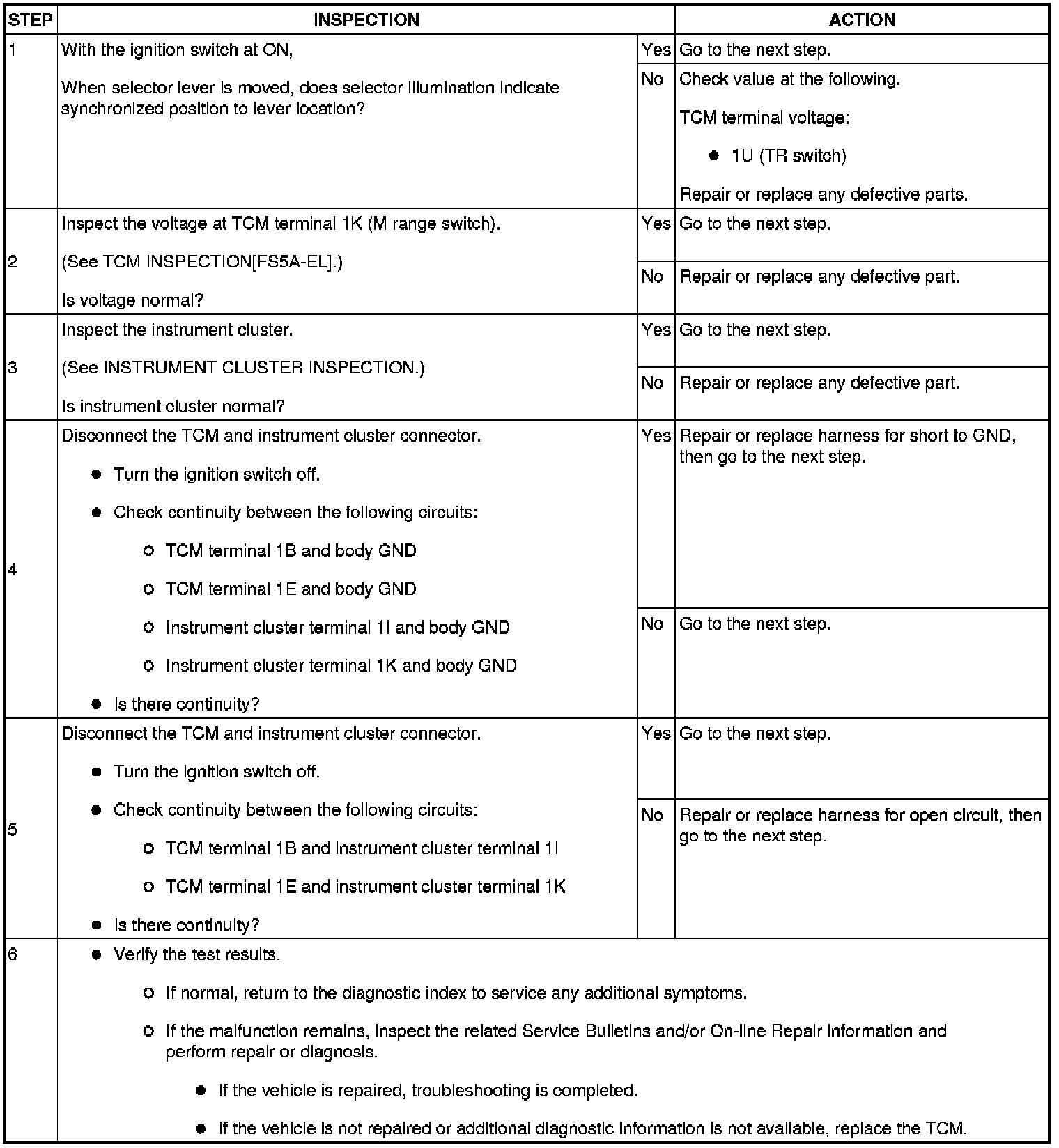

Diagnostic procedure
Step 1-Step 6:
