Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FS5A-EL Transmission >> No.18 Excessive Shift Shock Is Felt When Upshifting And Downshifting

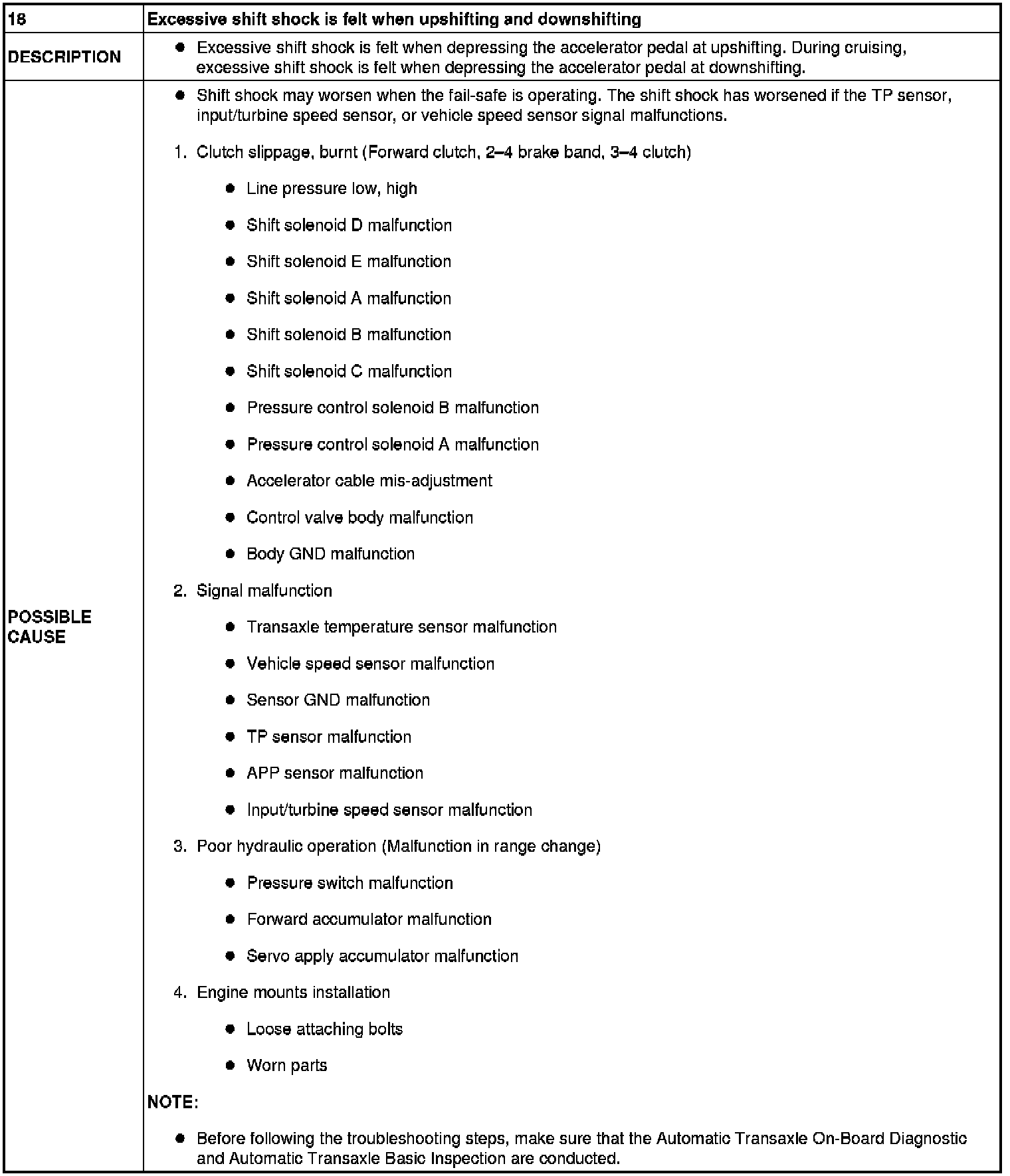

No.18 Excessive Shift Shock Is Felt When Upshifting And Downshifting




NO.18 EXCESSIVE SHIFT SHOCK IS FELT WHEN UPSHIFTING AND DOWNSHIFTING [FS5A-EL]

Description/Possible Cause:





Diagnostic procedure

Step 1-Step 6:
