No.16 Judder Upon Torque Converter Clutch (TCC) Operation

NO.16 JUDDER UPON TORQUE CONVERTER CLUTCH (TCC) OPERATION [FS5A-EL]

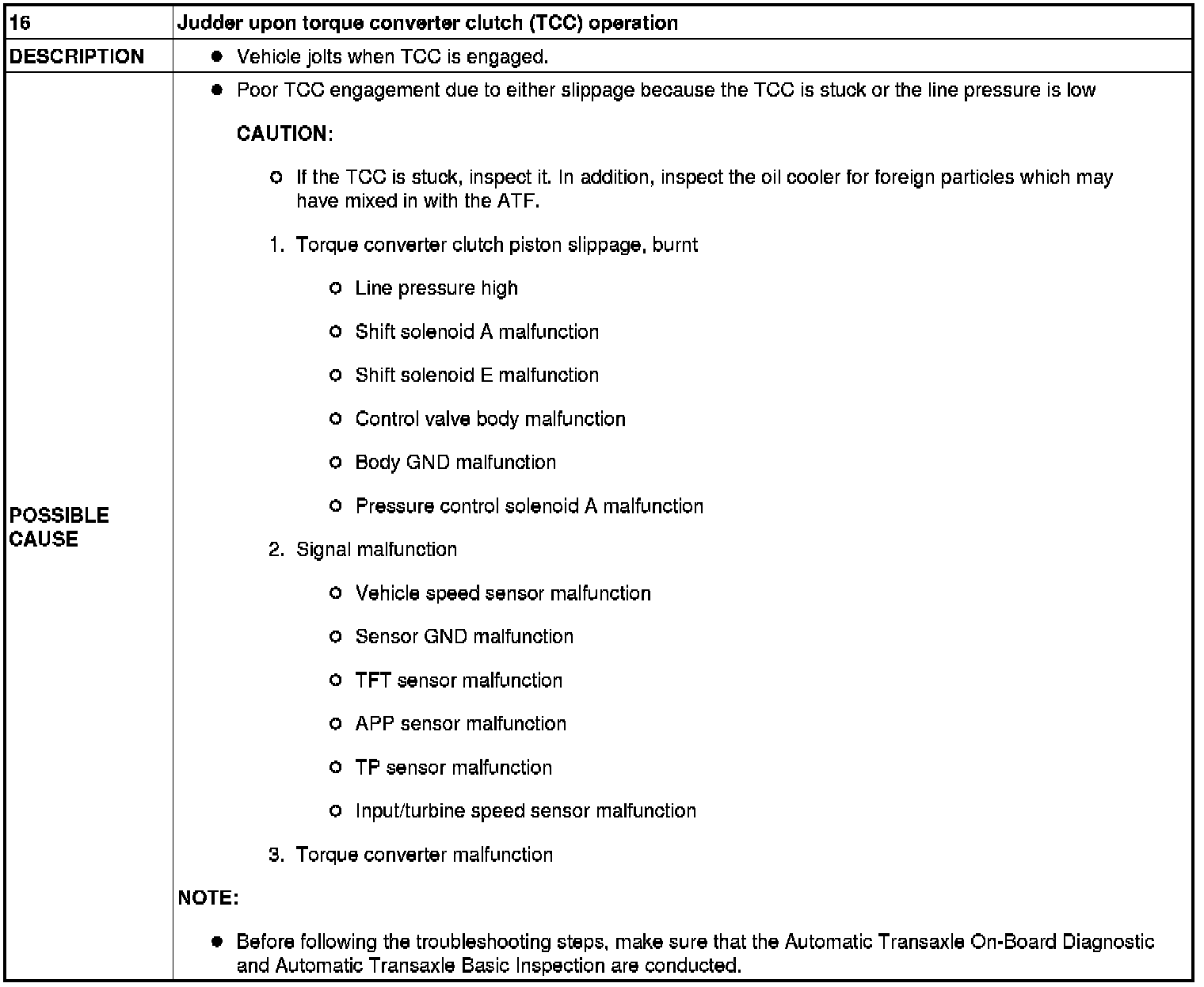

Description/Possible Cause:

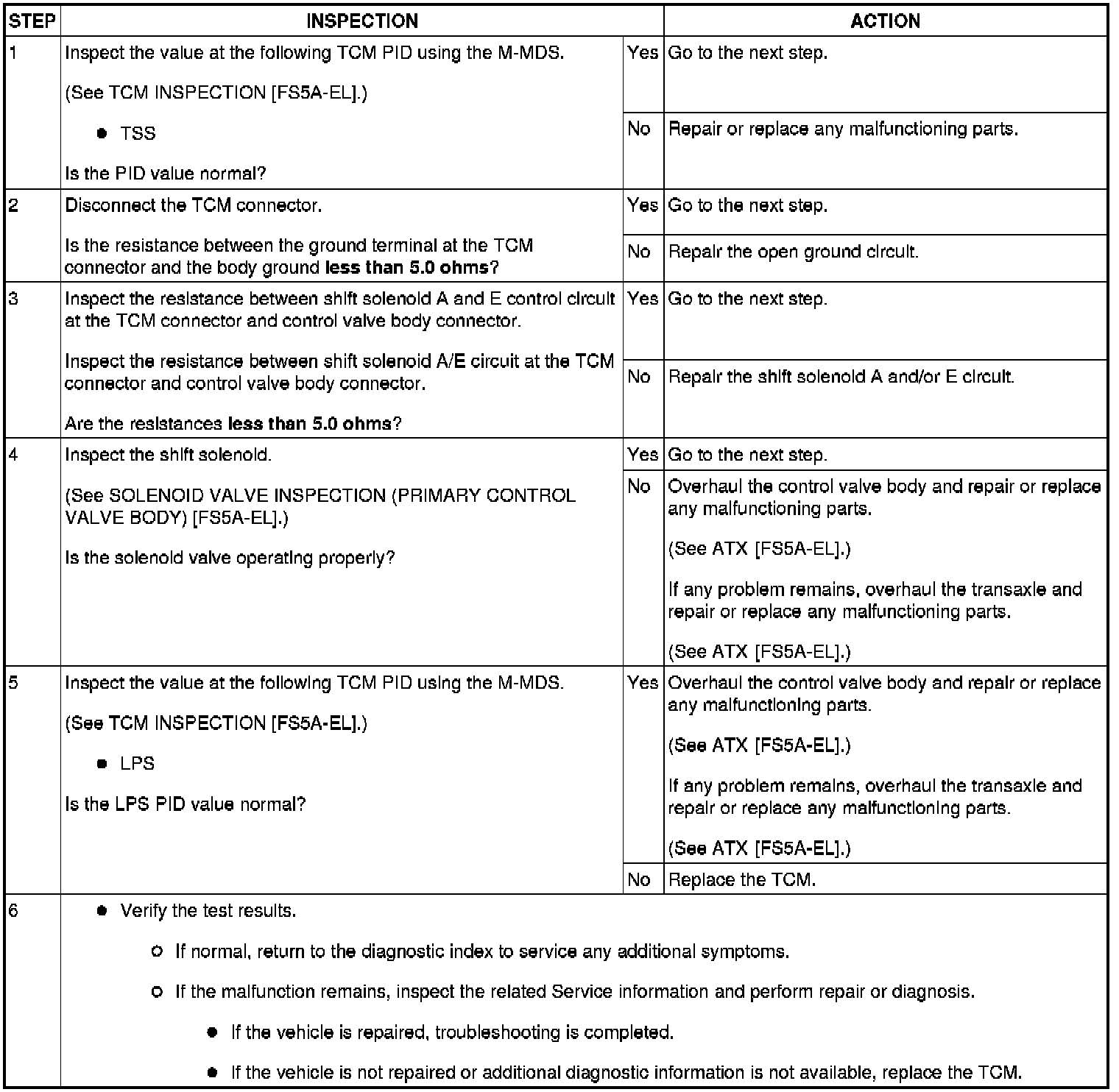

Diagnostic procedure

Step 1-Step 6:
