No.14 Engine Flares Up Or Slips When Upshifting Or Downshifting




NO.14 ENGINE FLARES UP OR SLIPS WHEN UPSHIFTING OR DOWNSHIFTING [FS5A-EL]

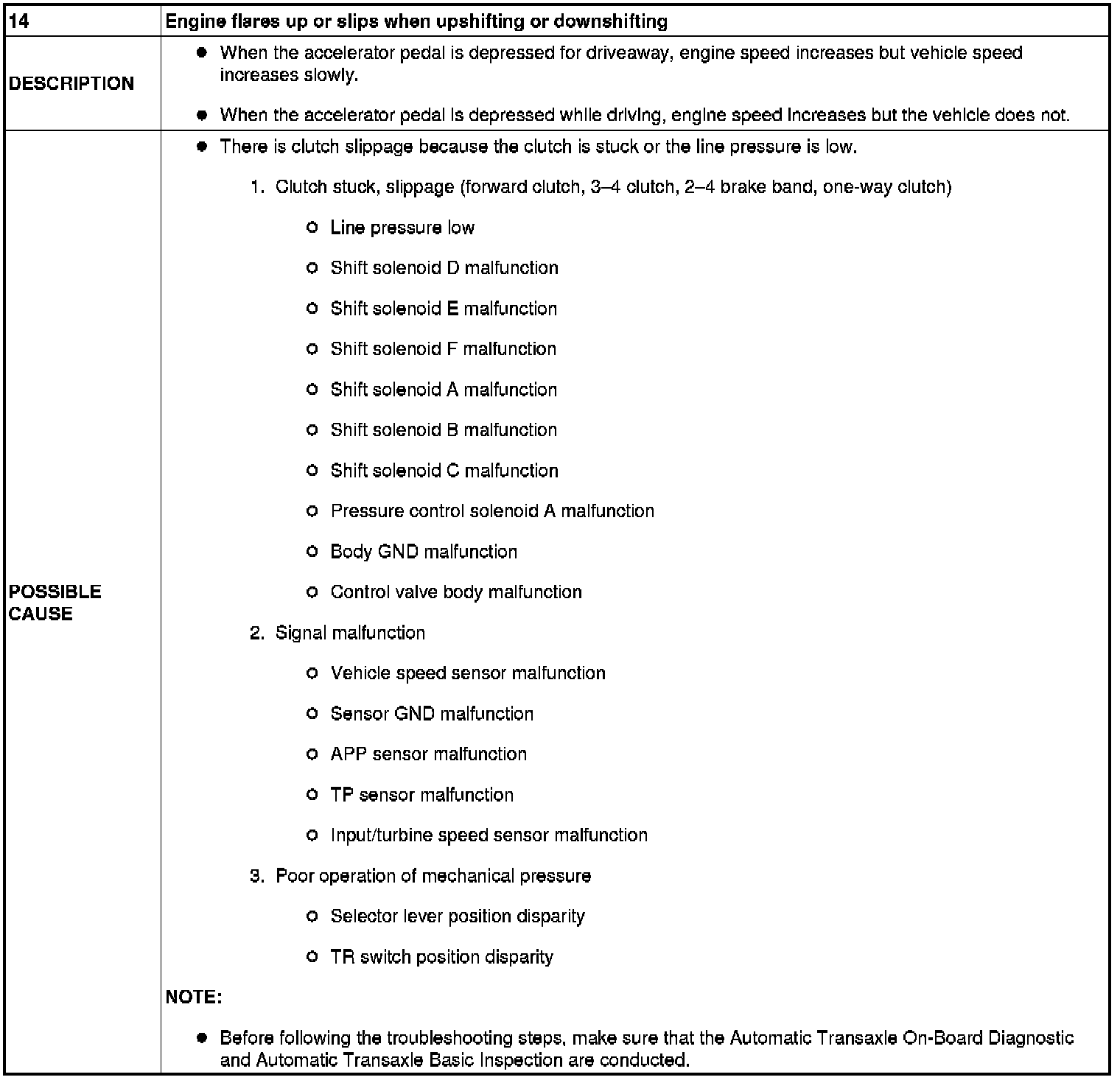

Description/Possible Cause:

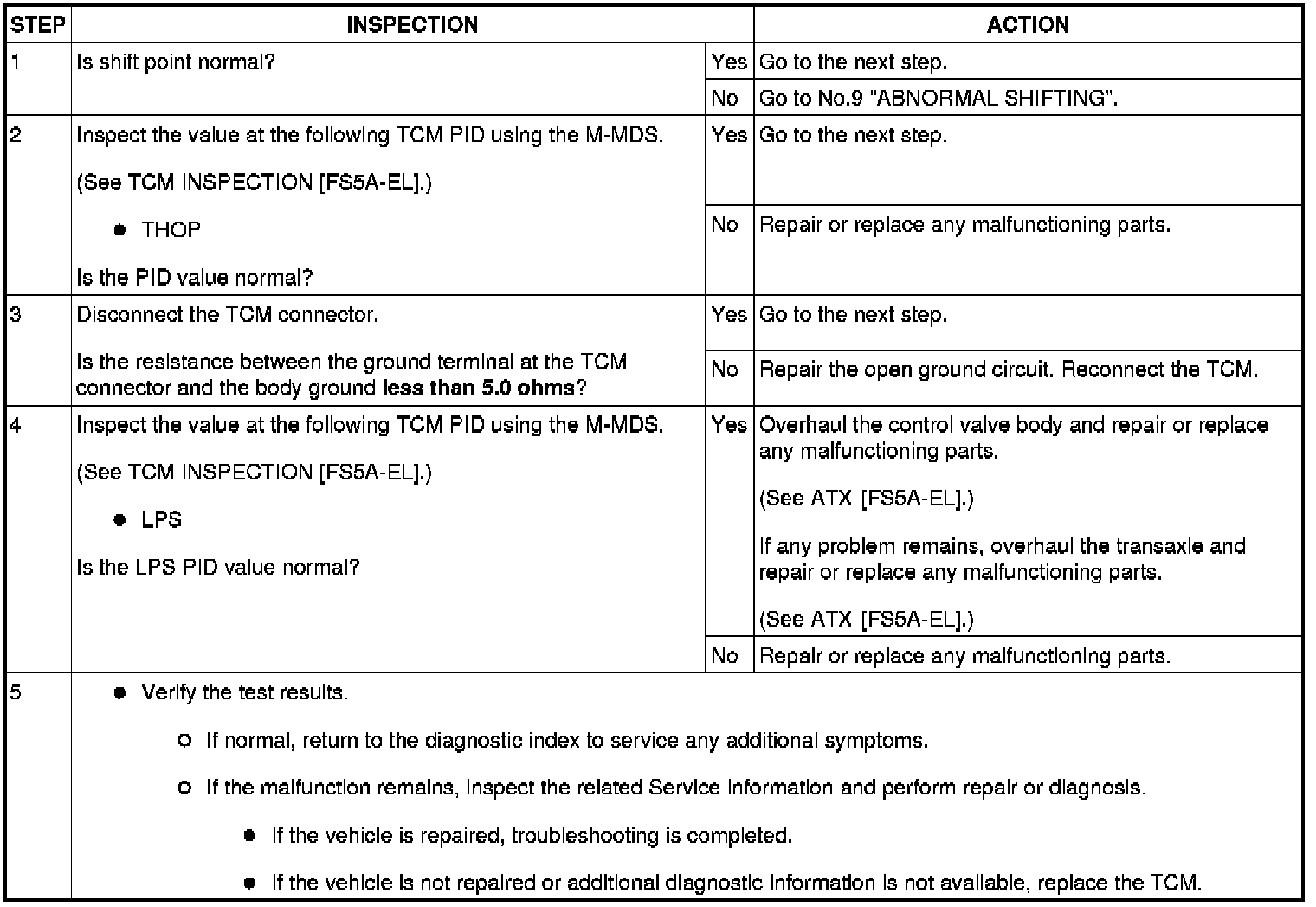

Diagnostic procedure

Step 1-Step 5:
