Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FS5A-EL Transmission >> No.1 Vehicle Does Not Move In D, M Ranges, Or In R Position

No.1 Vehicle Does Not Move In D, M Ranges, Or In R Position




NO.1 VEHICLE DOES NOT MOVE IN D, M RANGES, OR IN R POSITION [FS5A-EL]

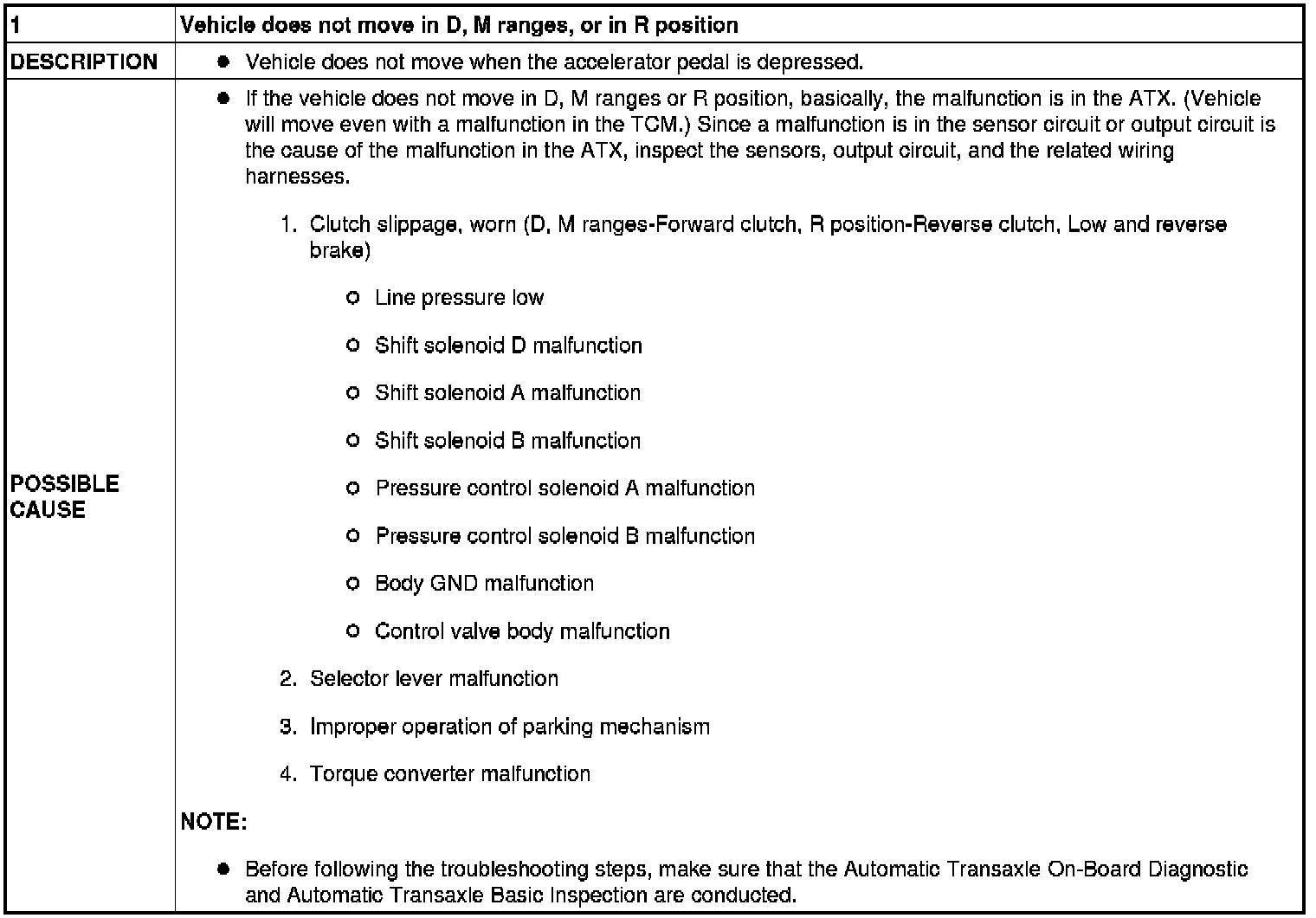

Description/Possible Cause:

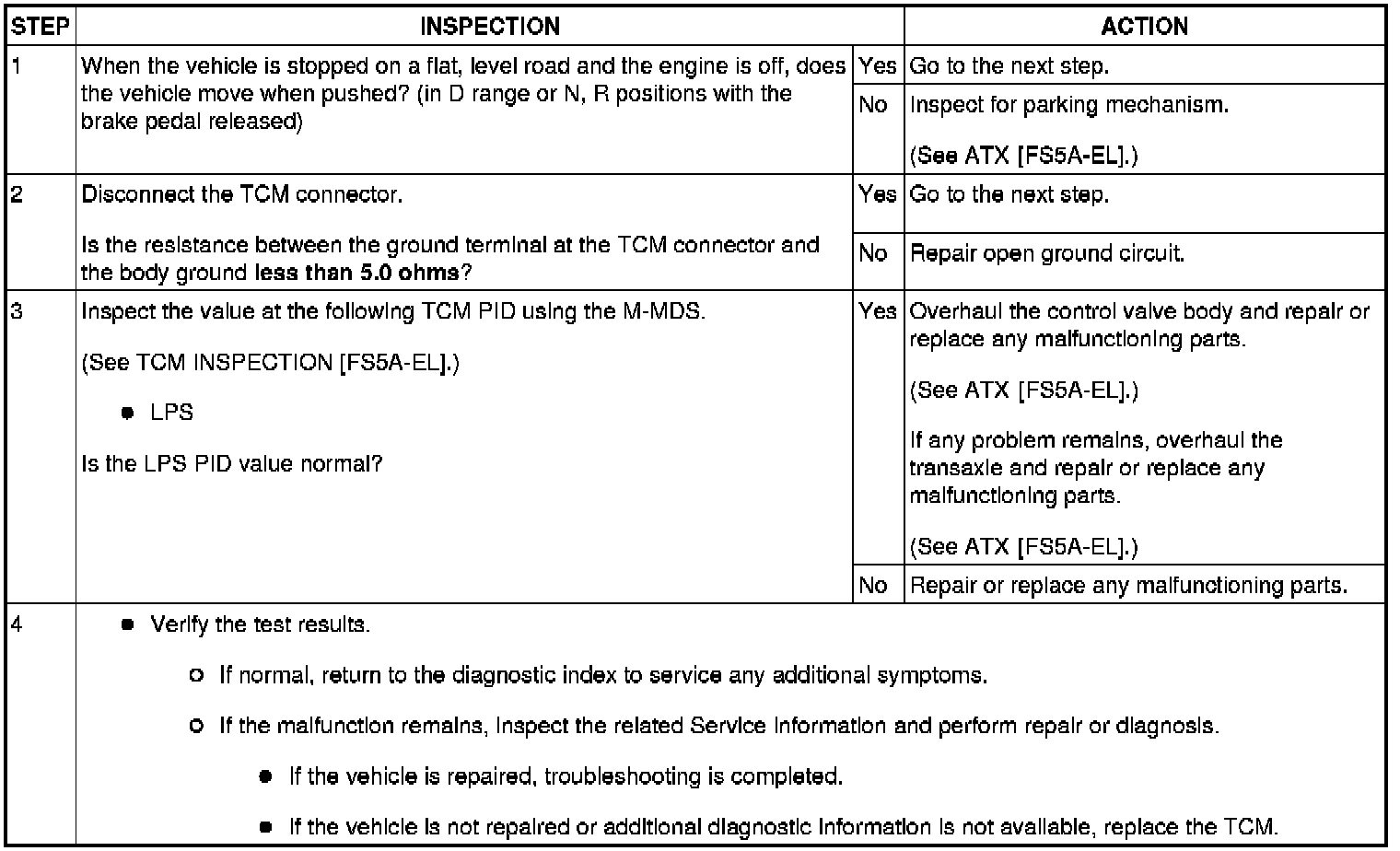

Diagnostic procedure

Step 1-Step 4:
