No.25 Engine Stalls When Driving At Slow Speeds Or Stopping




NO.25 ENGINE STALLS WHEN DRIVING AT SLOW SPEEDS OR STOPPING [FN4A-EL]

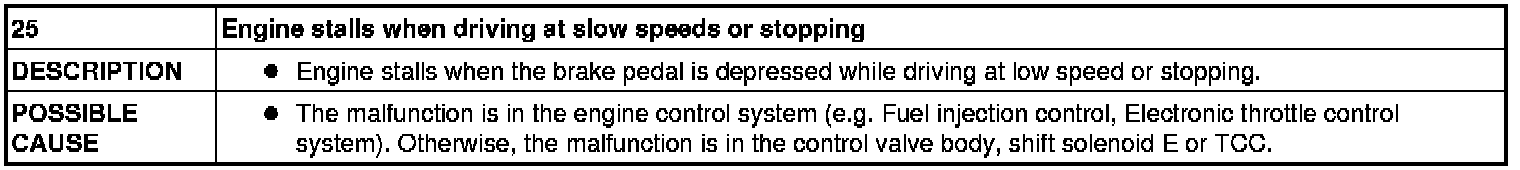

Description/Possible Cause:

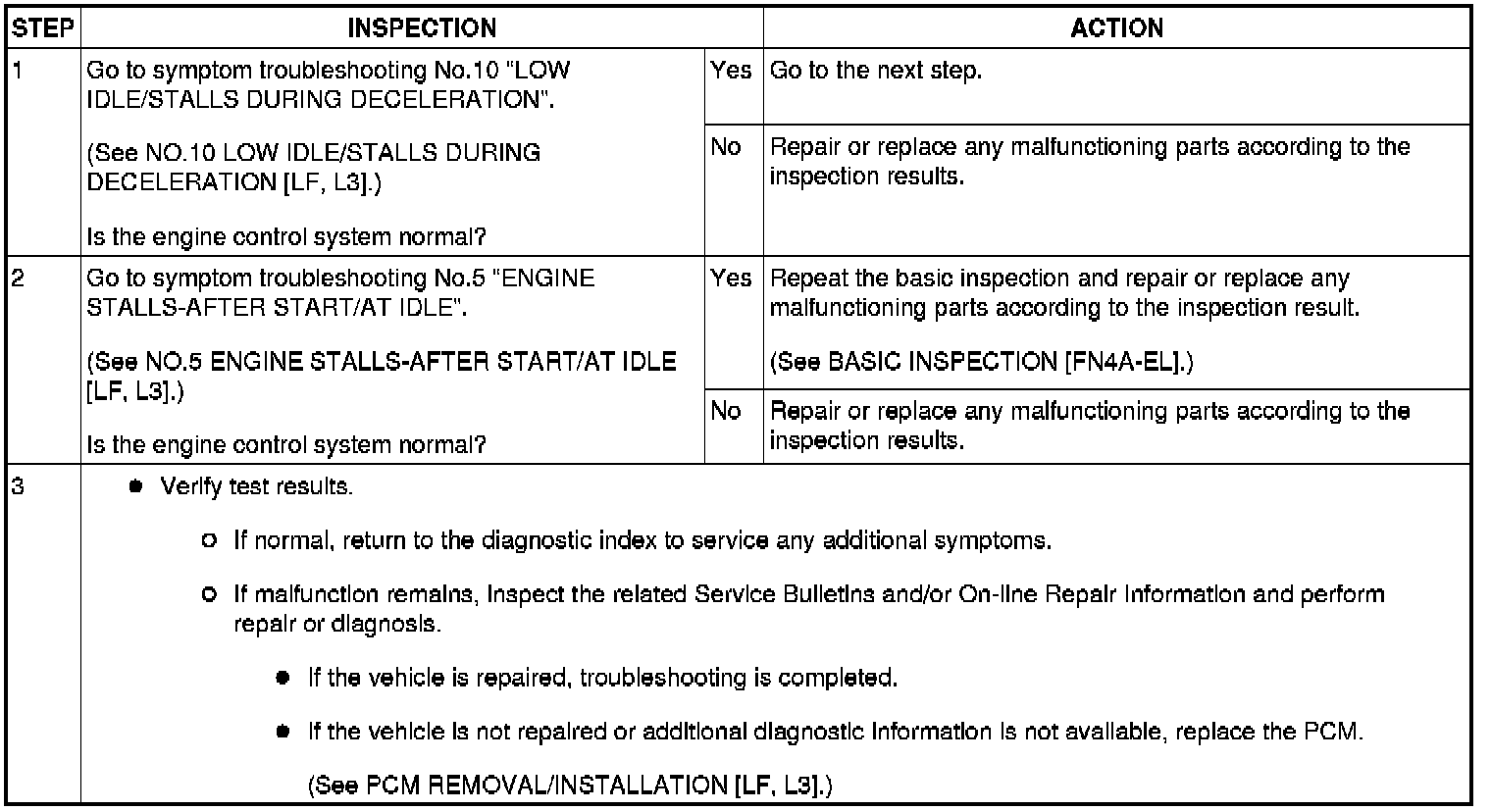

Diagnostic procedure

Step 1-Step 3:
