No.23 Transaxle Overheats




NO.23 TRANSAXLE OVERHEATS [FN4A-EL]

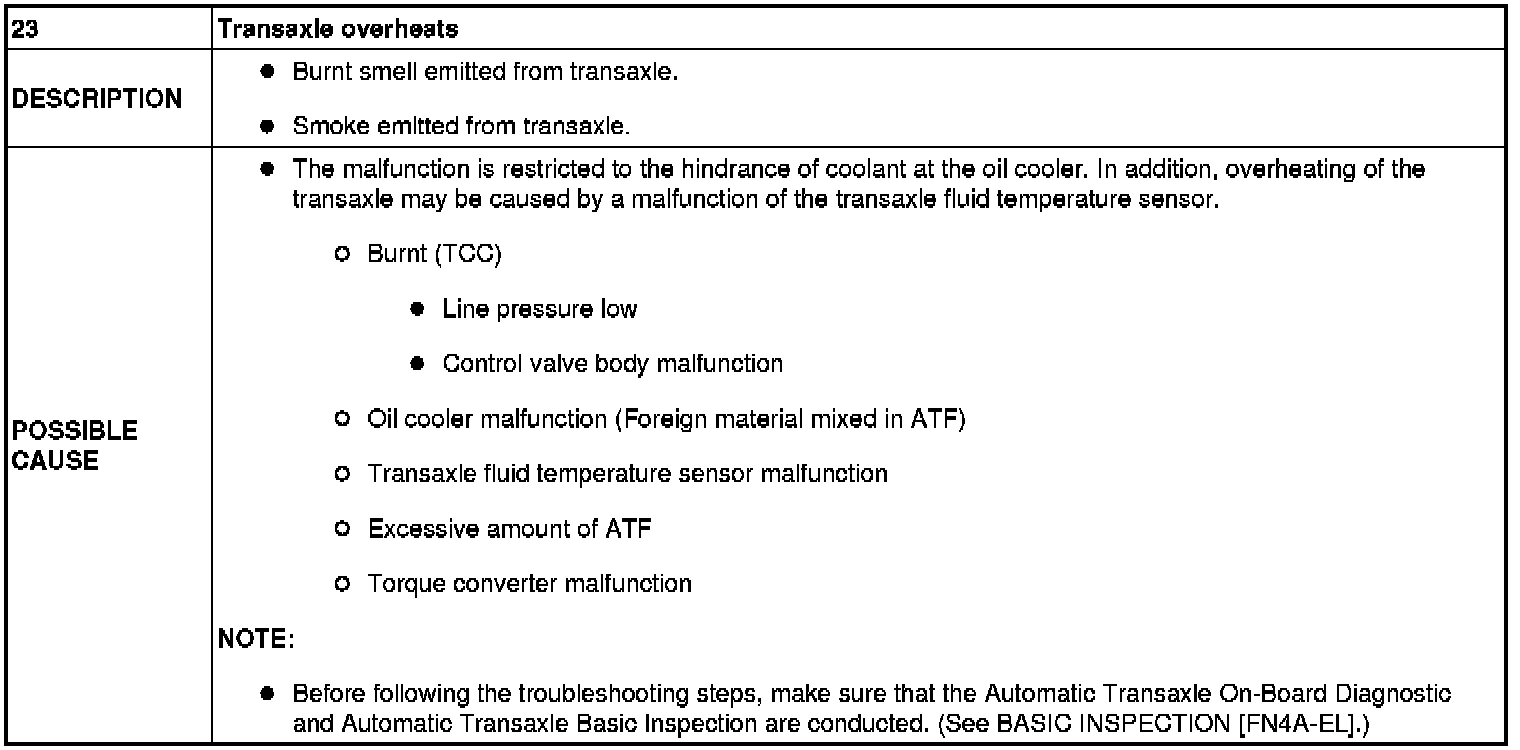

Description/Possible Cause:

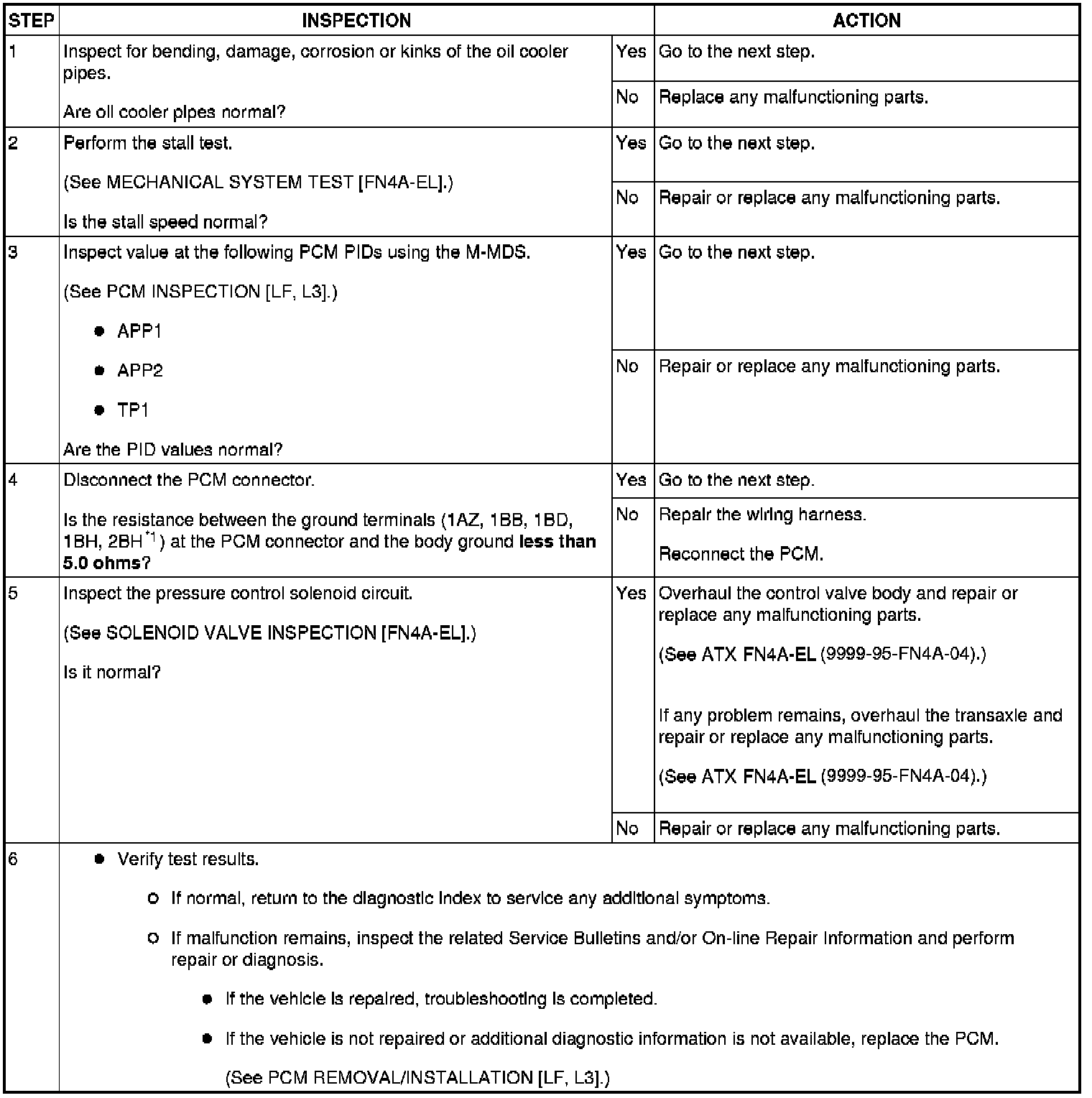

Diagnostic procedure

Step 1-Step 6:





*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model
