No.12 Torque Converter Clutch (TCC) Non-Operation




NO.12 TORQUE CONVERTER CLUTCH (TCC) NON-OPERATION [FN4A-EL]

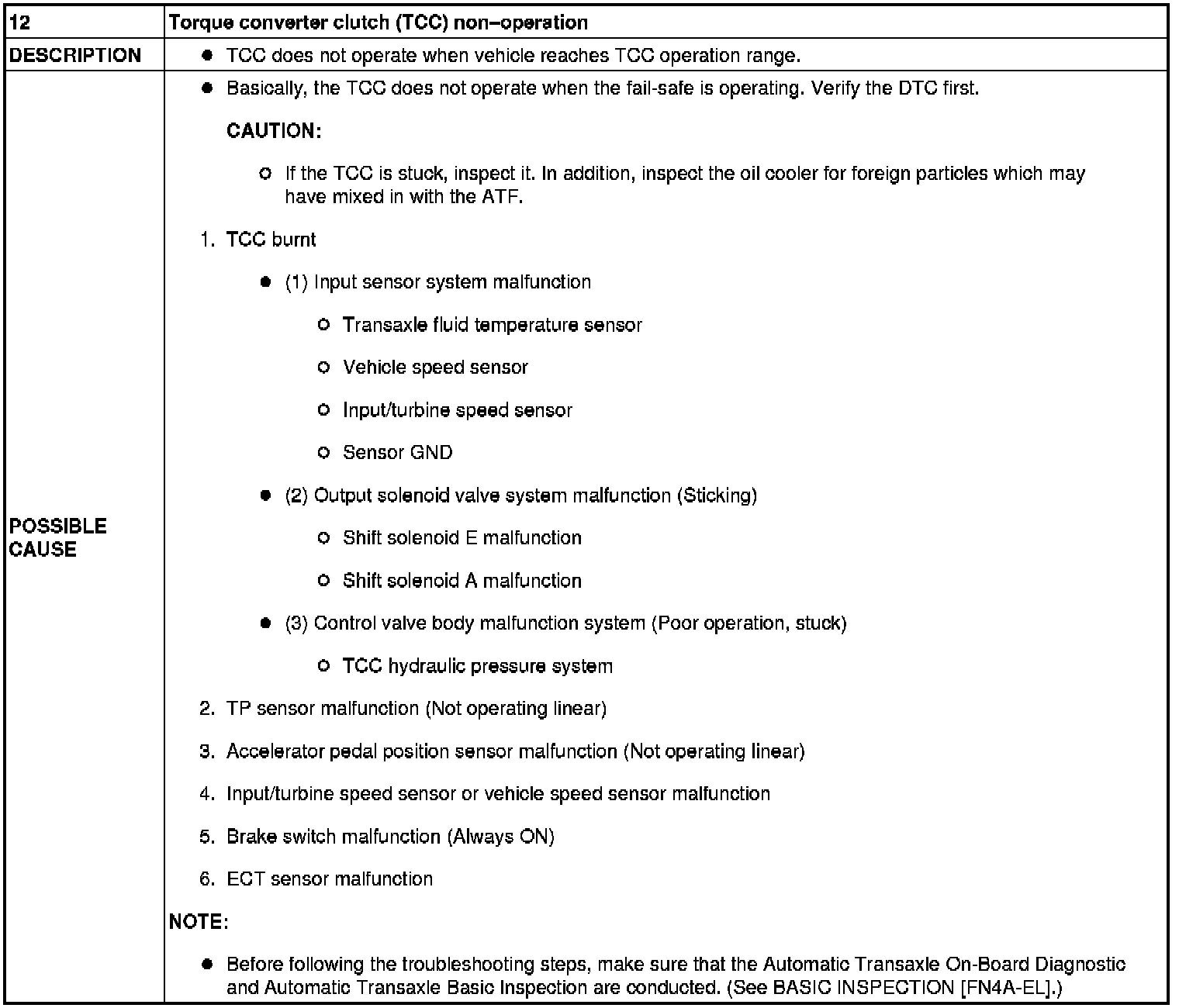

Description/Possible Cause:

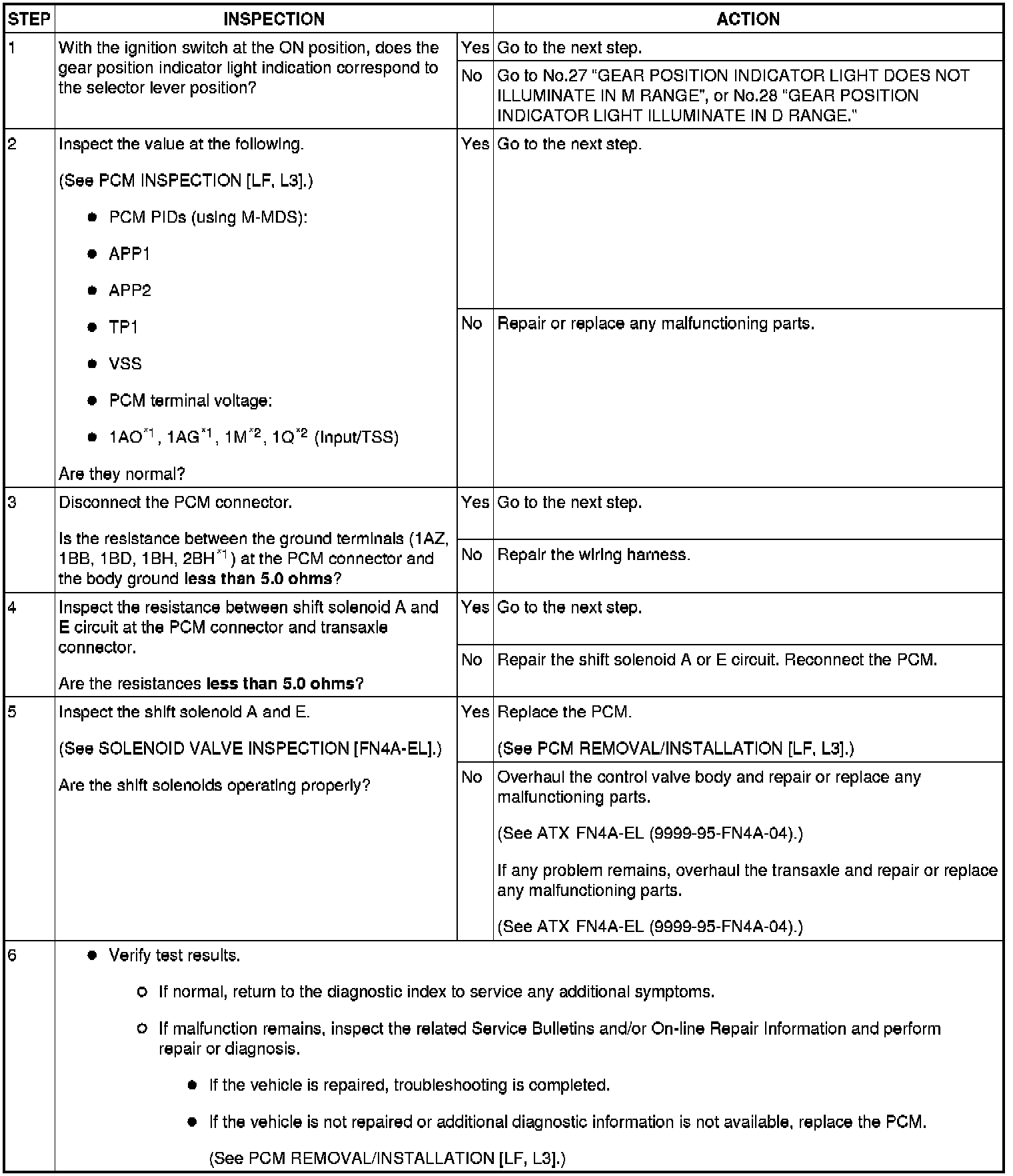

Diagnostic procedure

Step 1-Step 6:





*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model
