Basic Inspection
>>
FN4A-EL Transmission
FN4A-EL Transmission
BASIC INSPECTION [FN4A-EL]

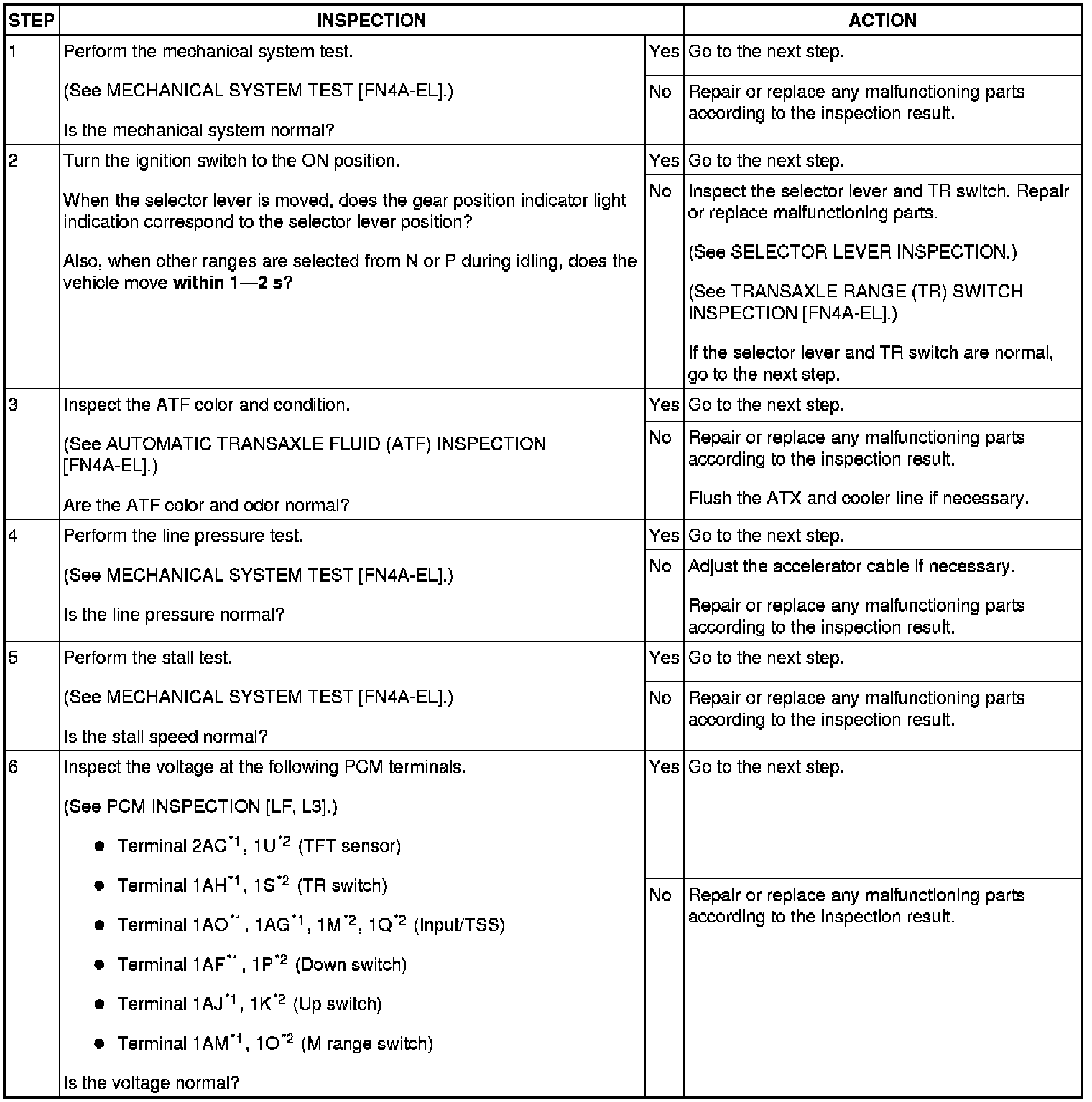

Step 1-Step 6:

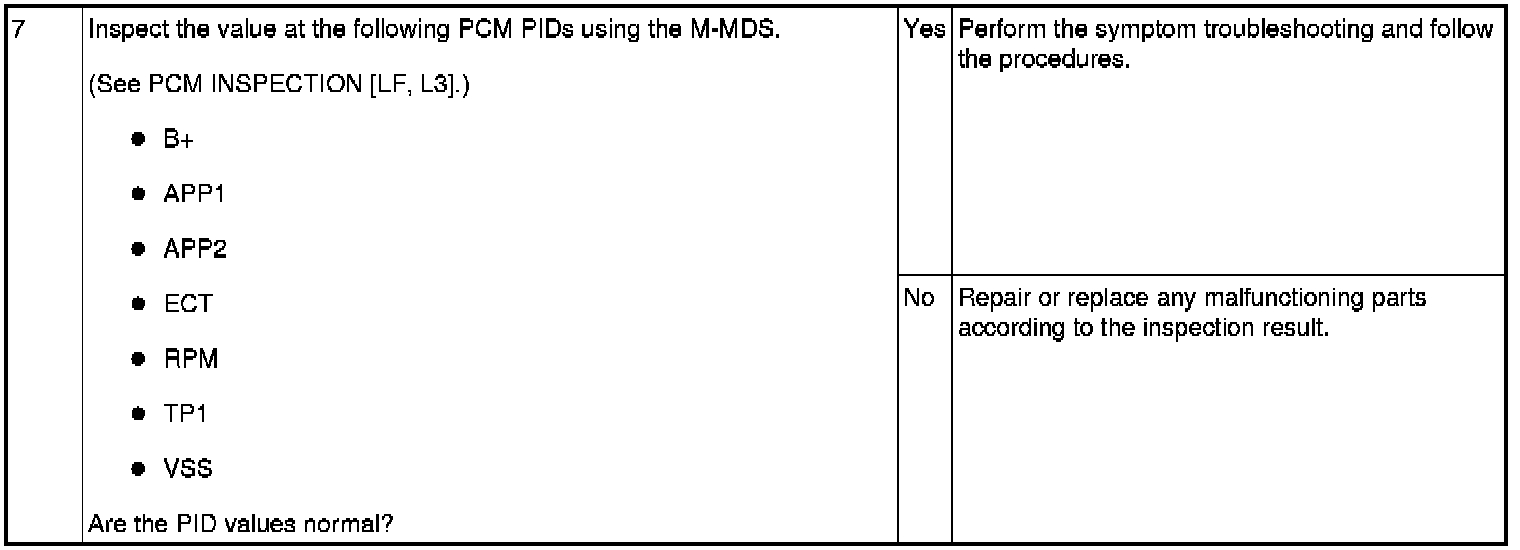

Step 7:
*1
California emission regulation applicable model
*2
Except for California emission regulation applicable model
