Automatic Transaxle Control System Wiring Diagram [FS5A-EL]

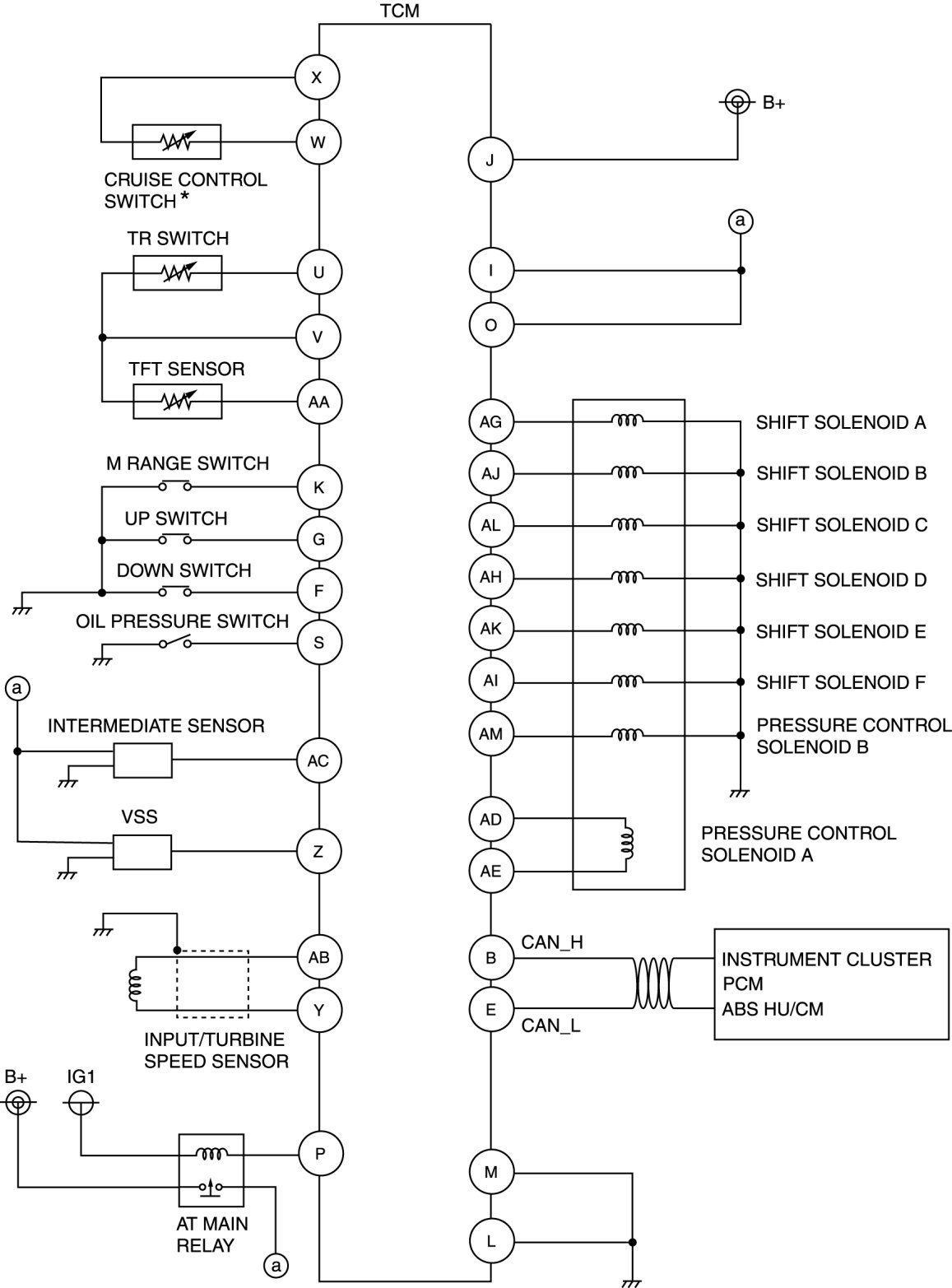

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [FS5A-EL]





*
Except for California emission regulation applicable model
