Automatic Transaxle Control System Wiring Diagram [FN4A-EL]

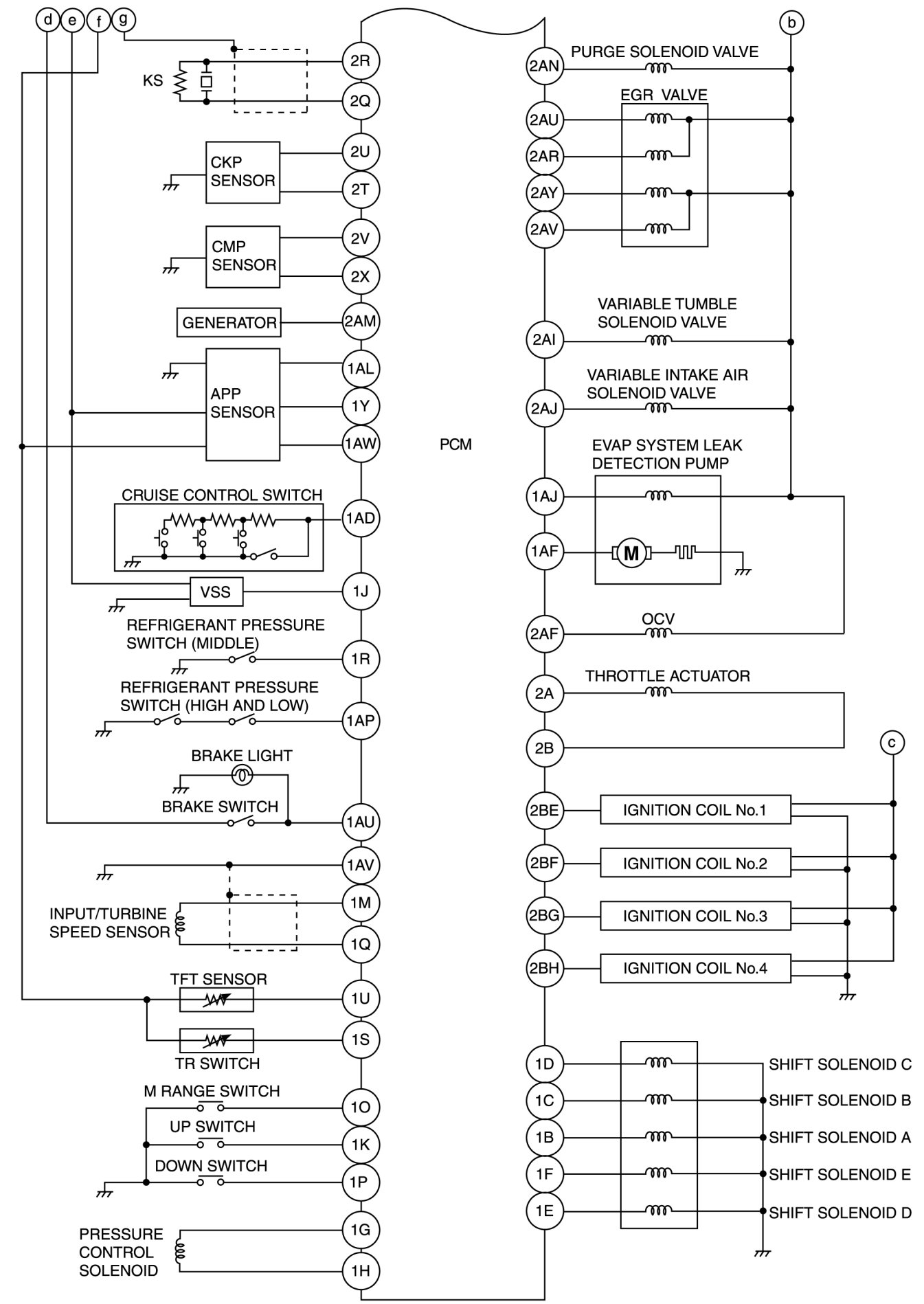

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [FN4A-EL]

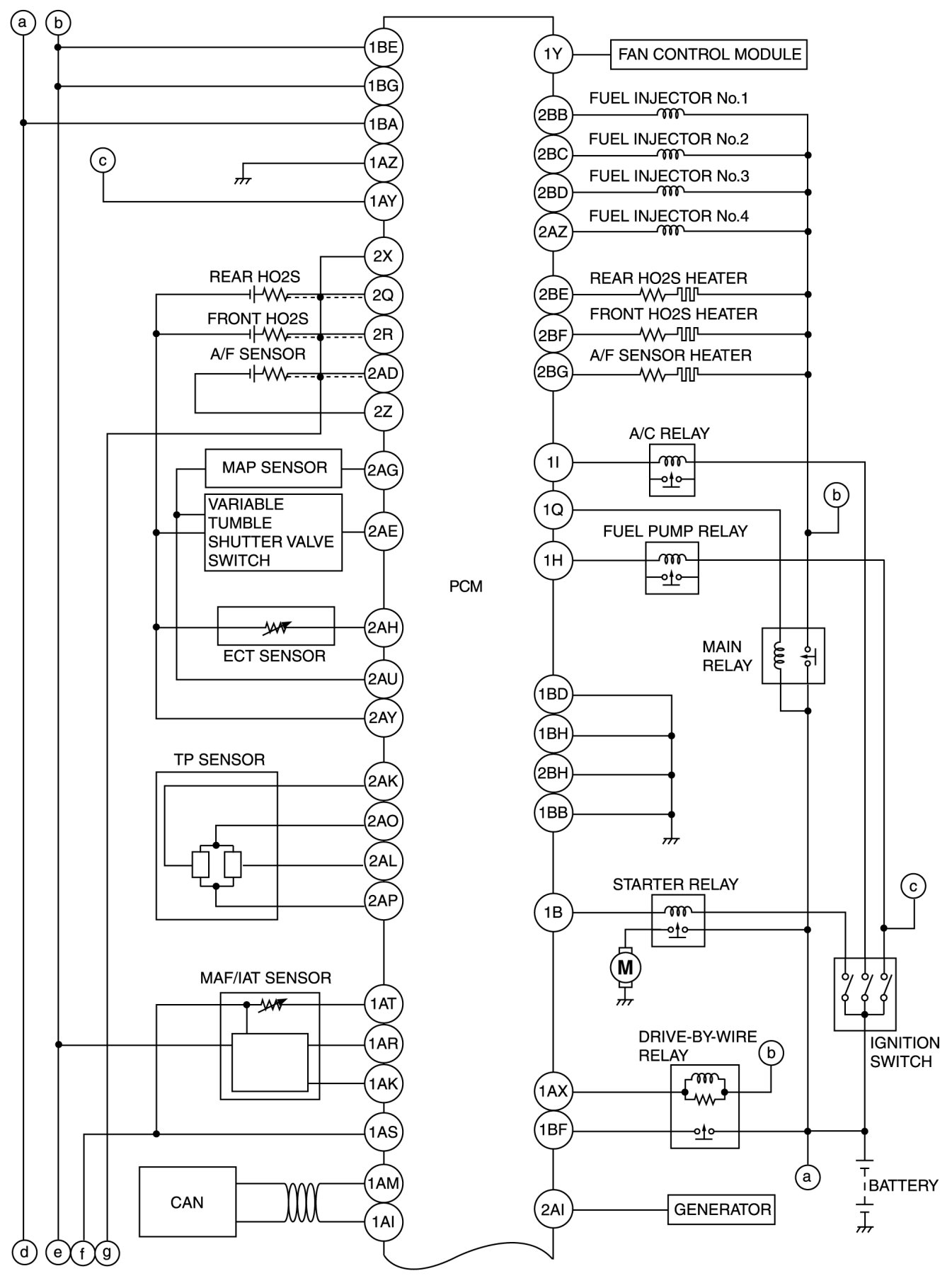

California Emission Regulation Applicable Model

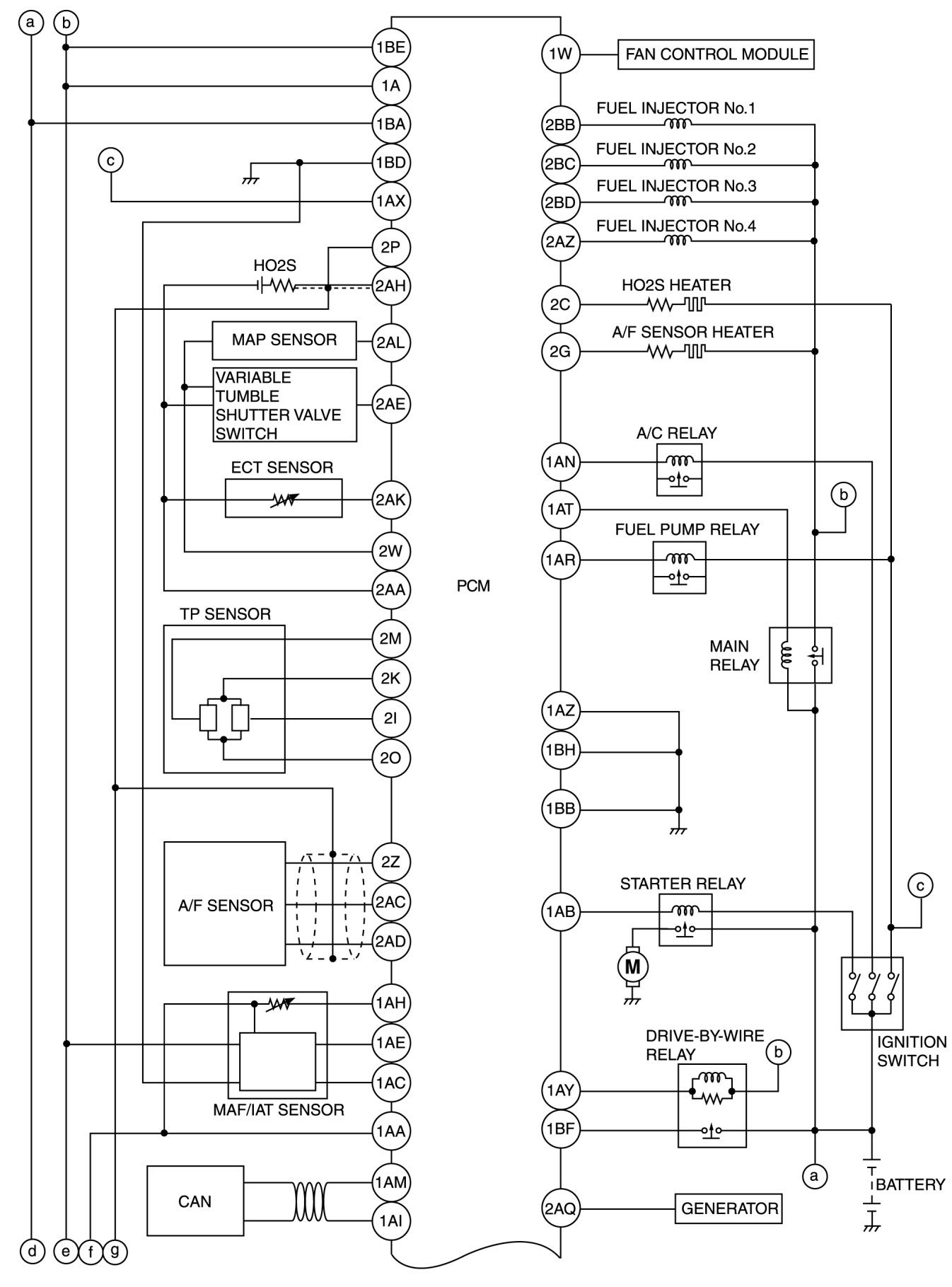

Except for California Emission Regulation Applicable Model
