Electro Hydraulic Power Assist Steering (EHPAS) System Wiring Diagram




ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) SYSTEM WIRING DIAGRAM [ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS)]

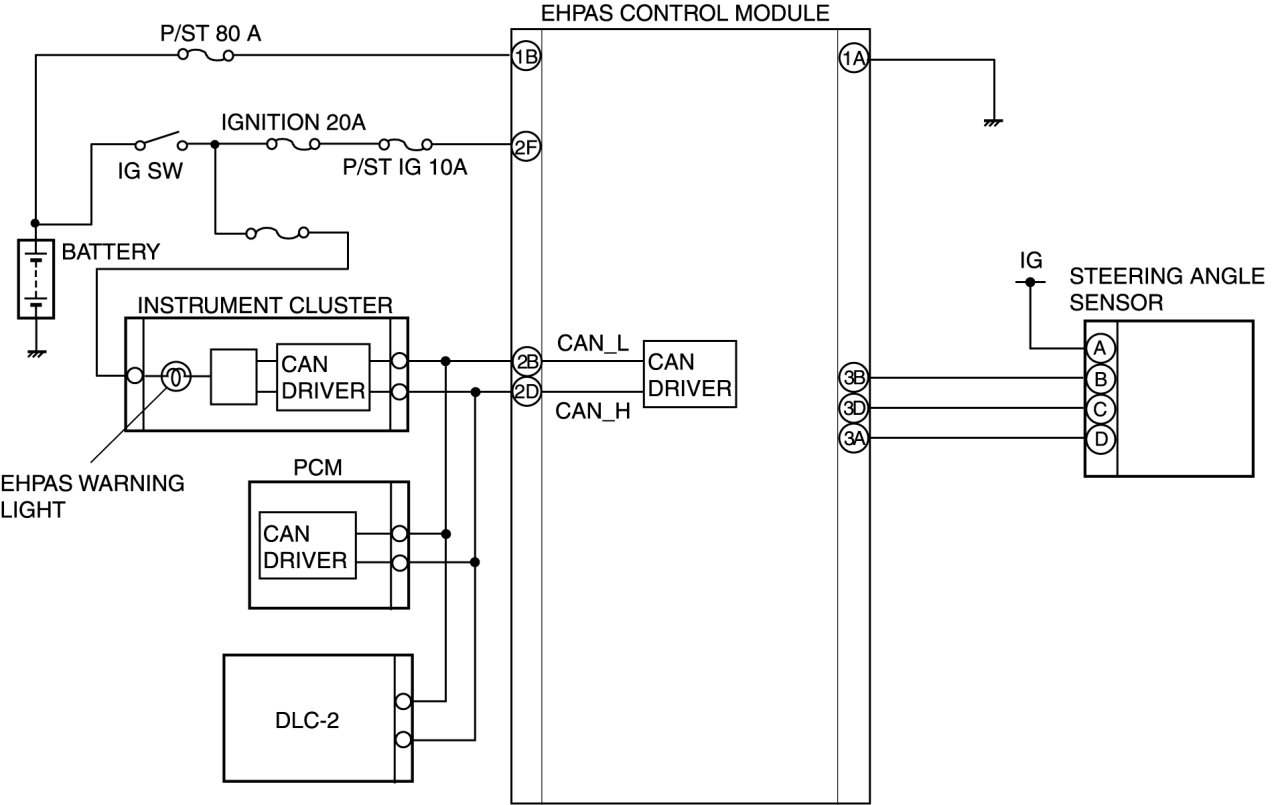

Without DSC

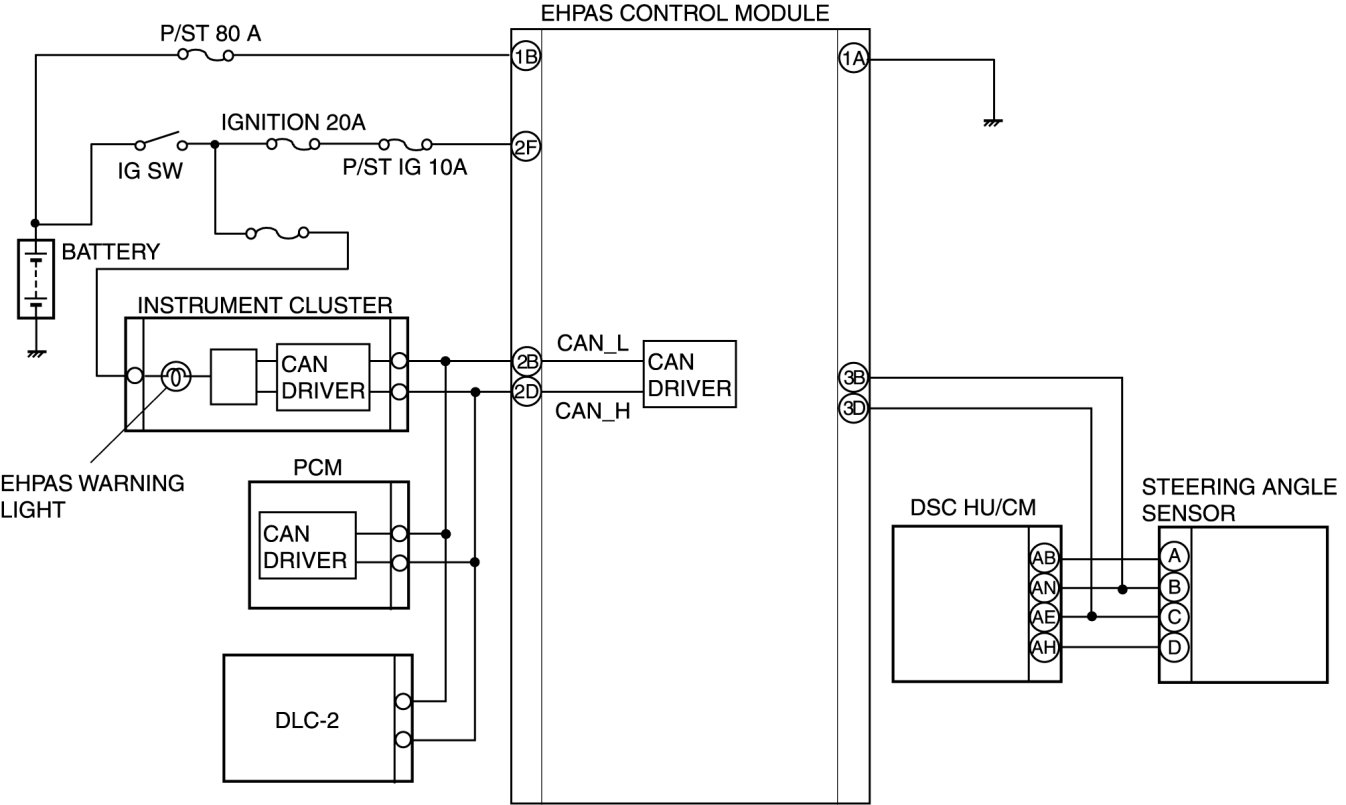

WIth DSC
