Connector Locations

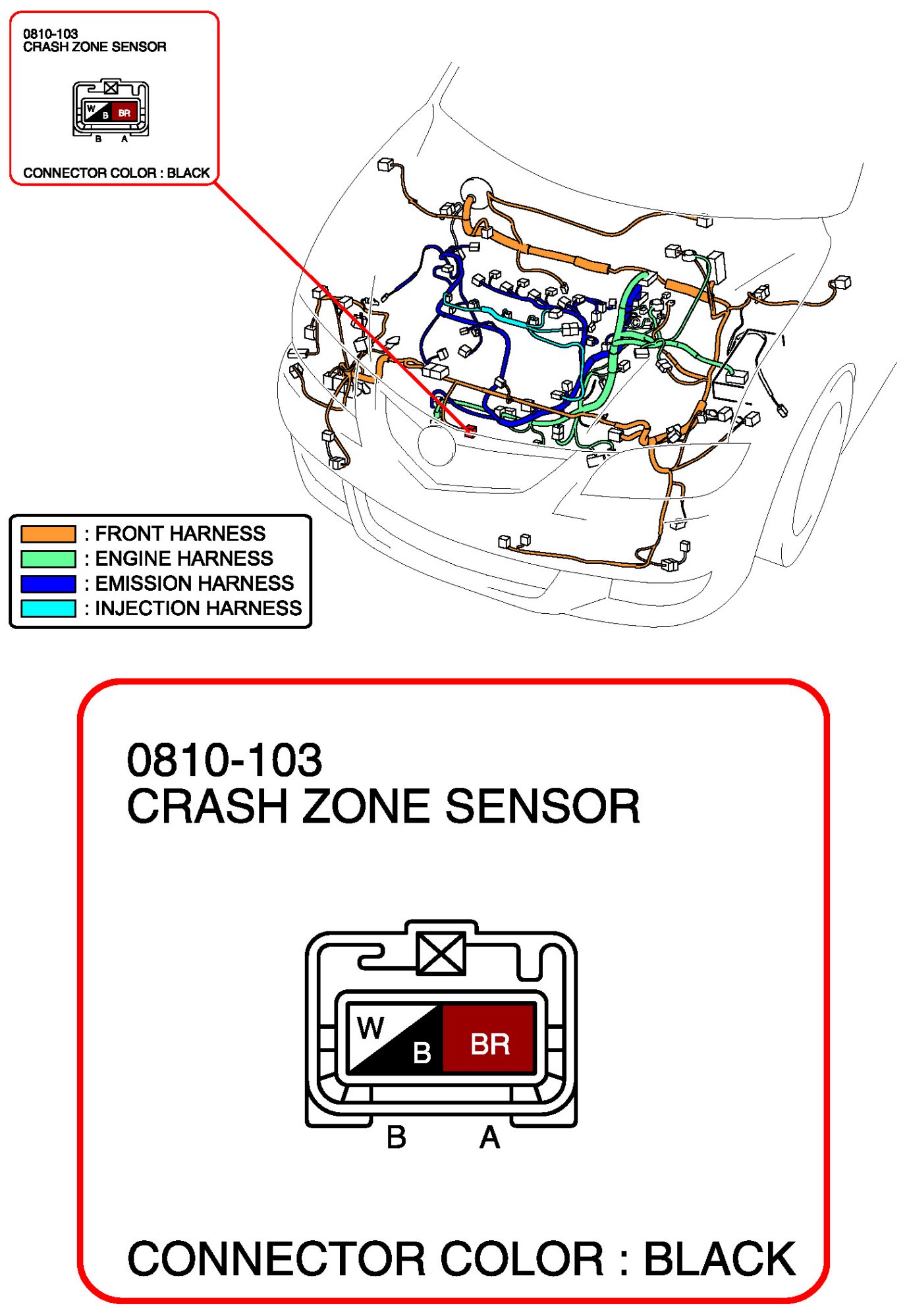

Crash Zone Sensor:

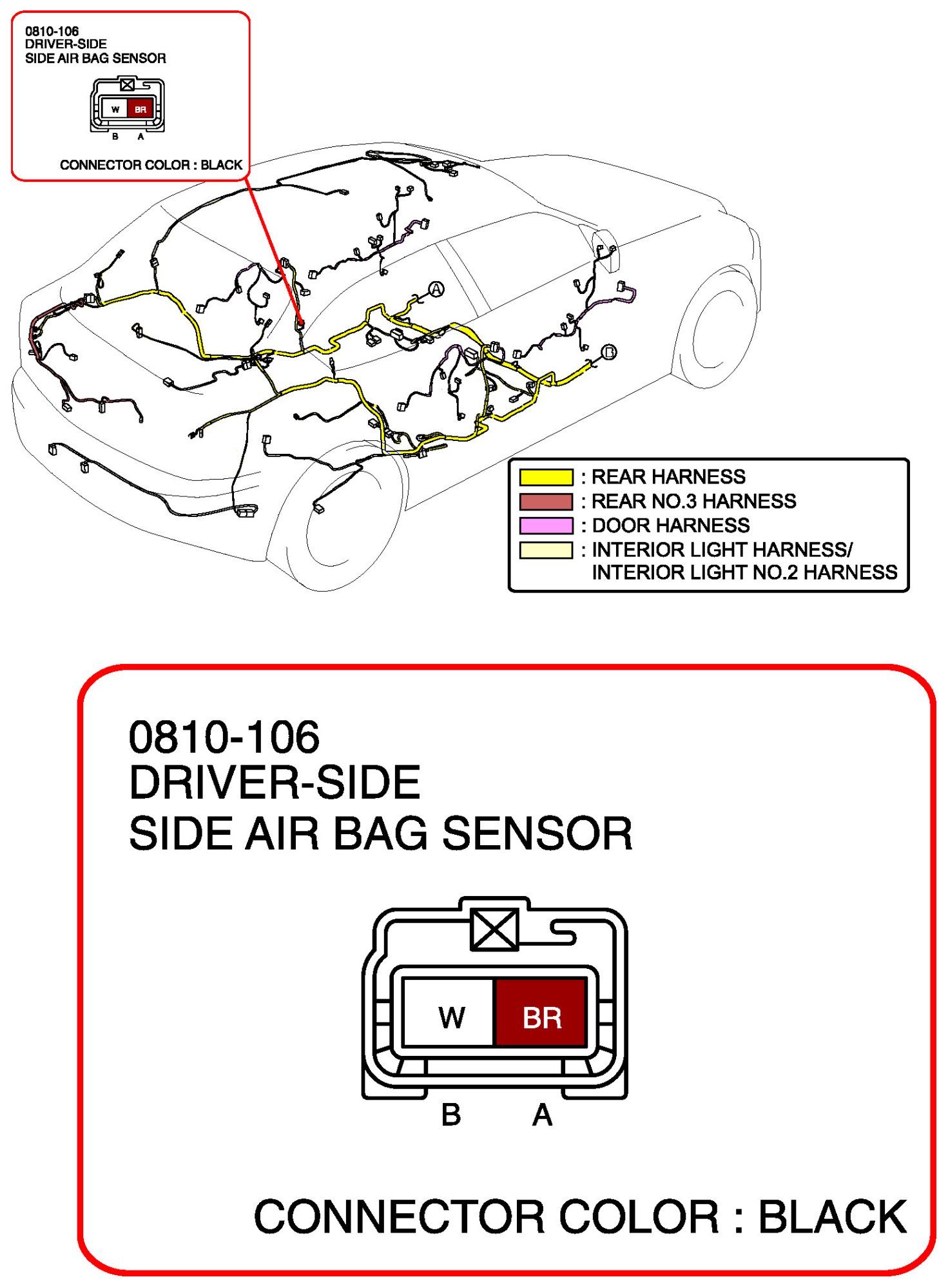

Driver-Side Side Air Bag Sensor:

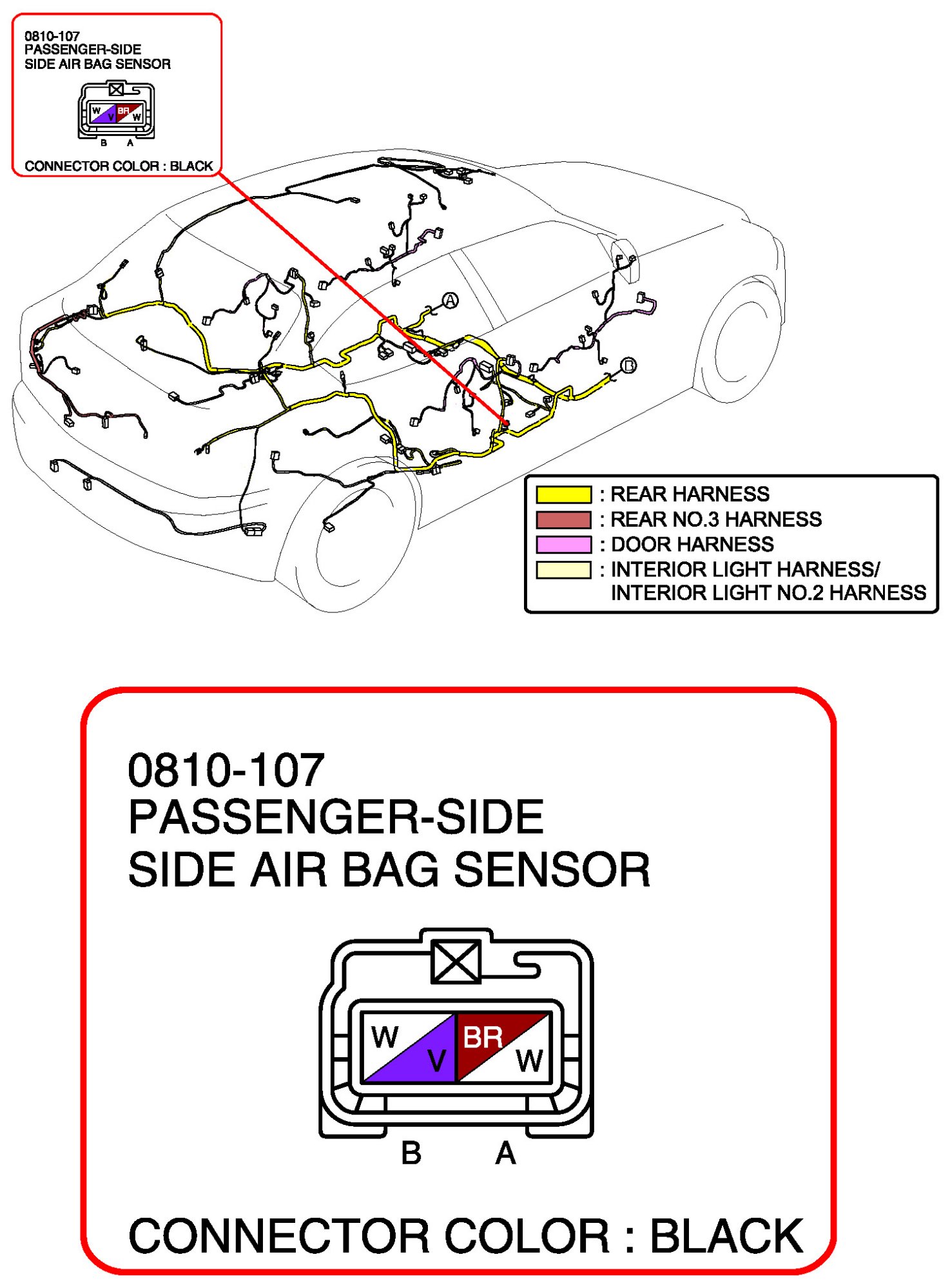

Passenger-Side Side Air Bag Sensor:
