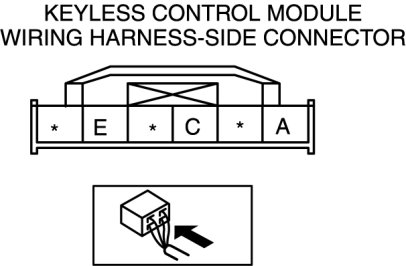

KEYLESS CONTROL MODULE INSPECTION

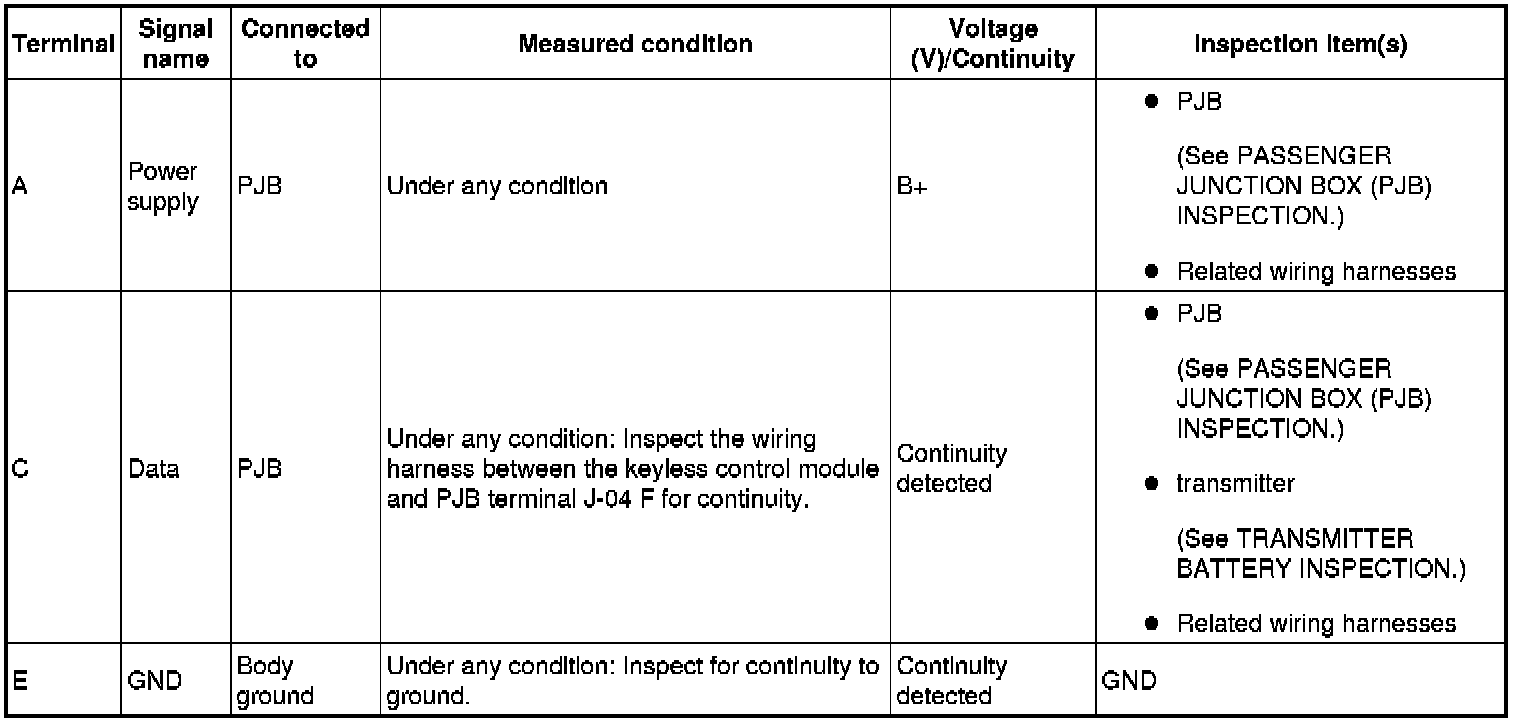

Terminal Voltage Table (Reference)
Terminal Voltage Table (Reference):
