Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Technical Service Bulletins >> Customer Interest >> Engine - Loud Ticking, Knocking, Rattling Noises >> Repair Procedure

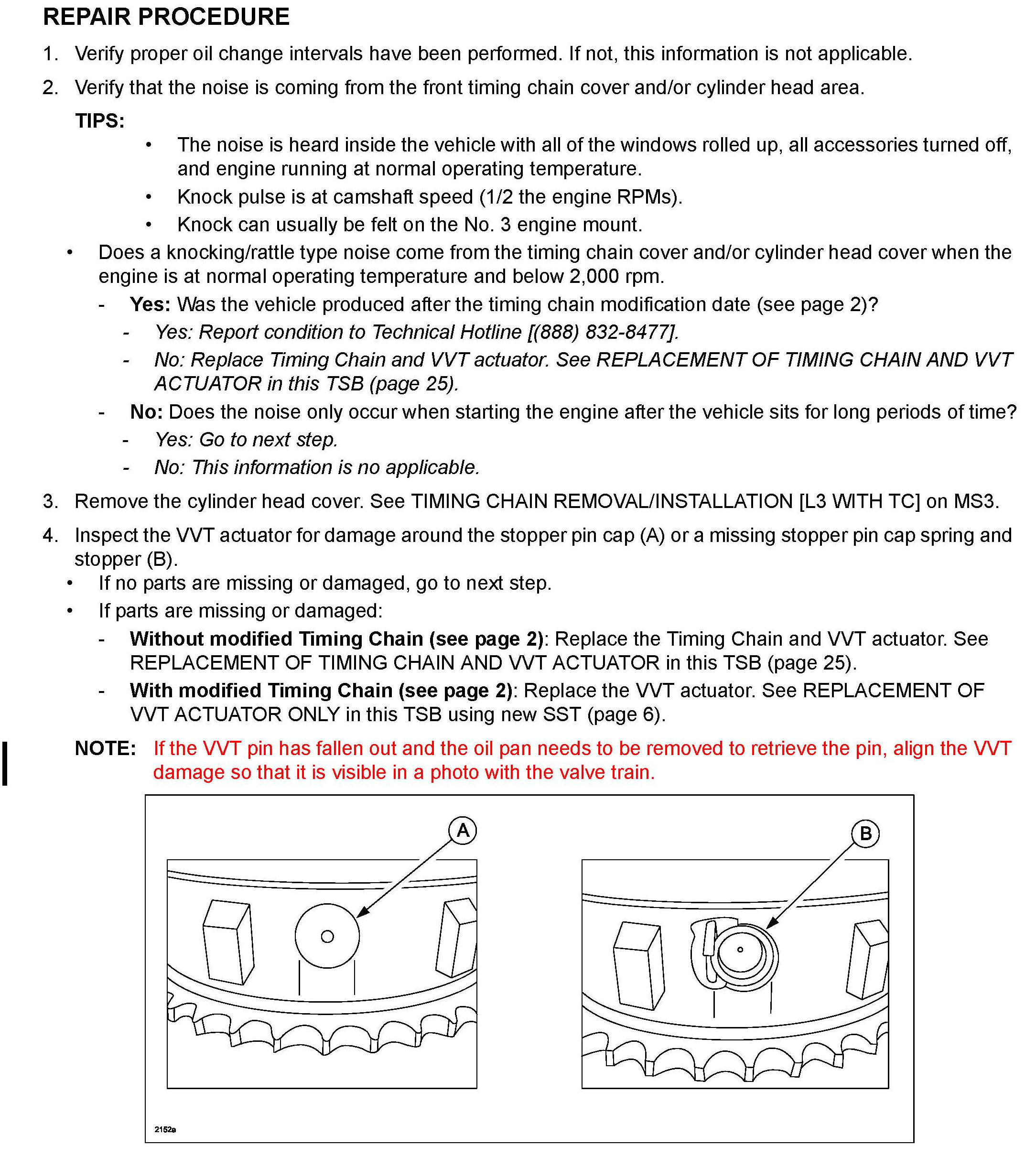

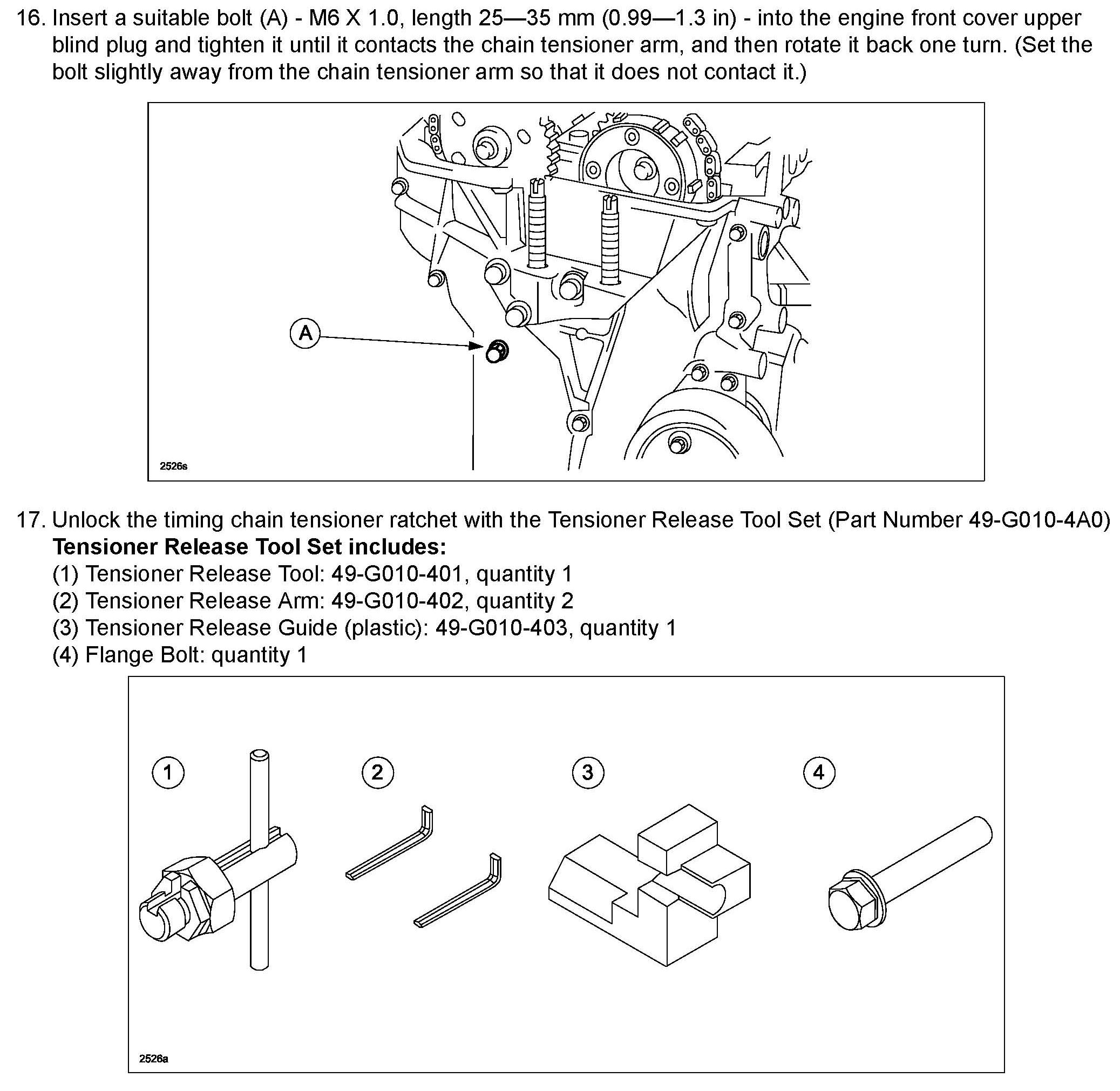

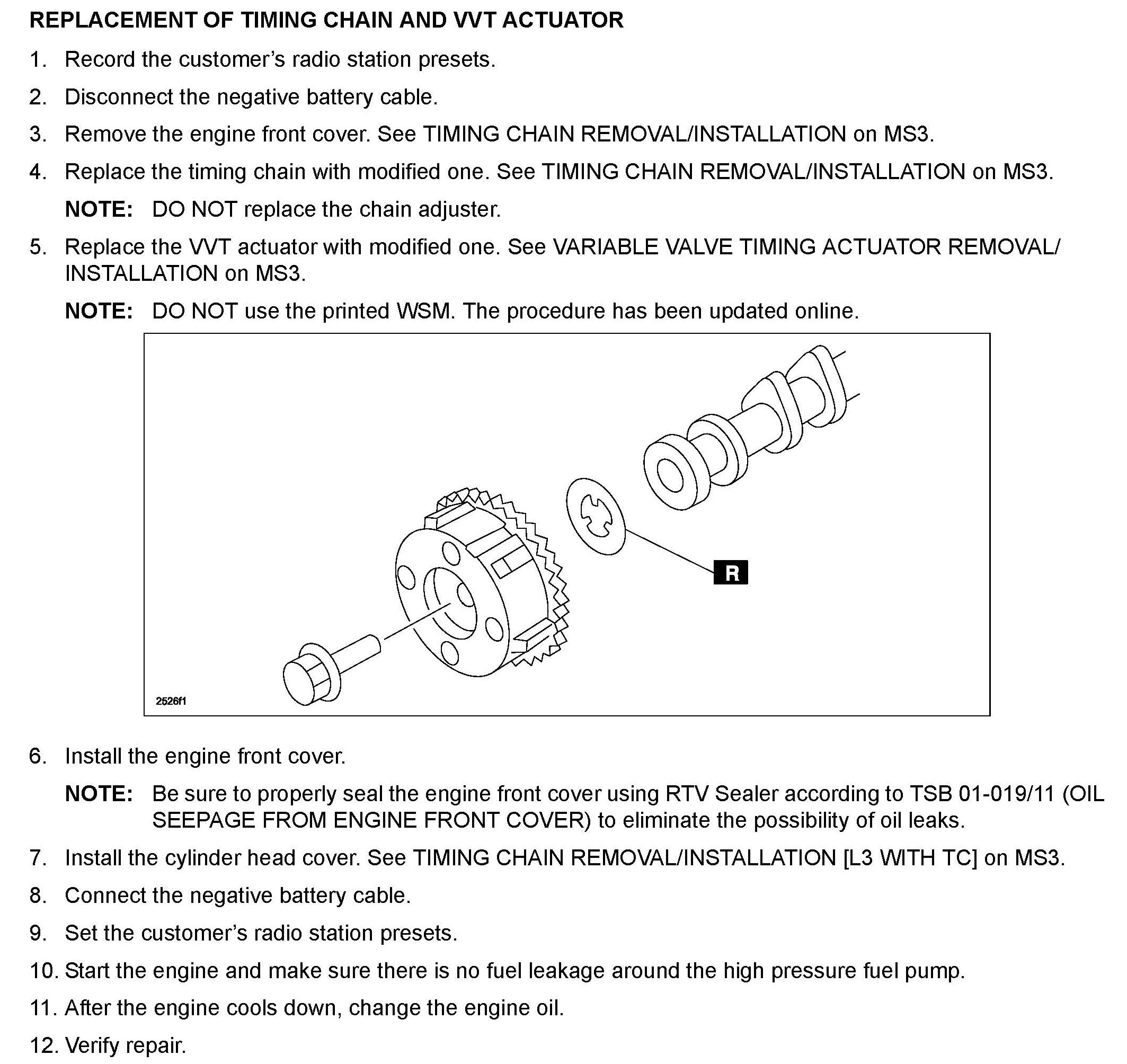

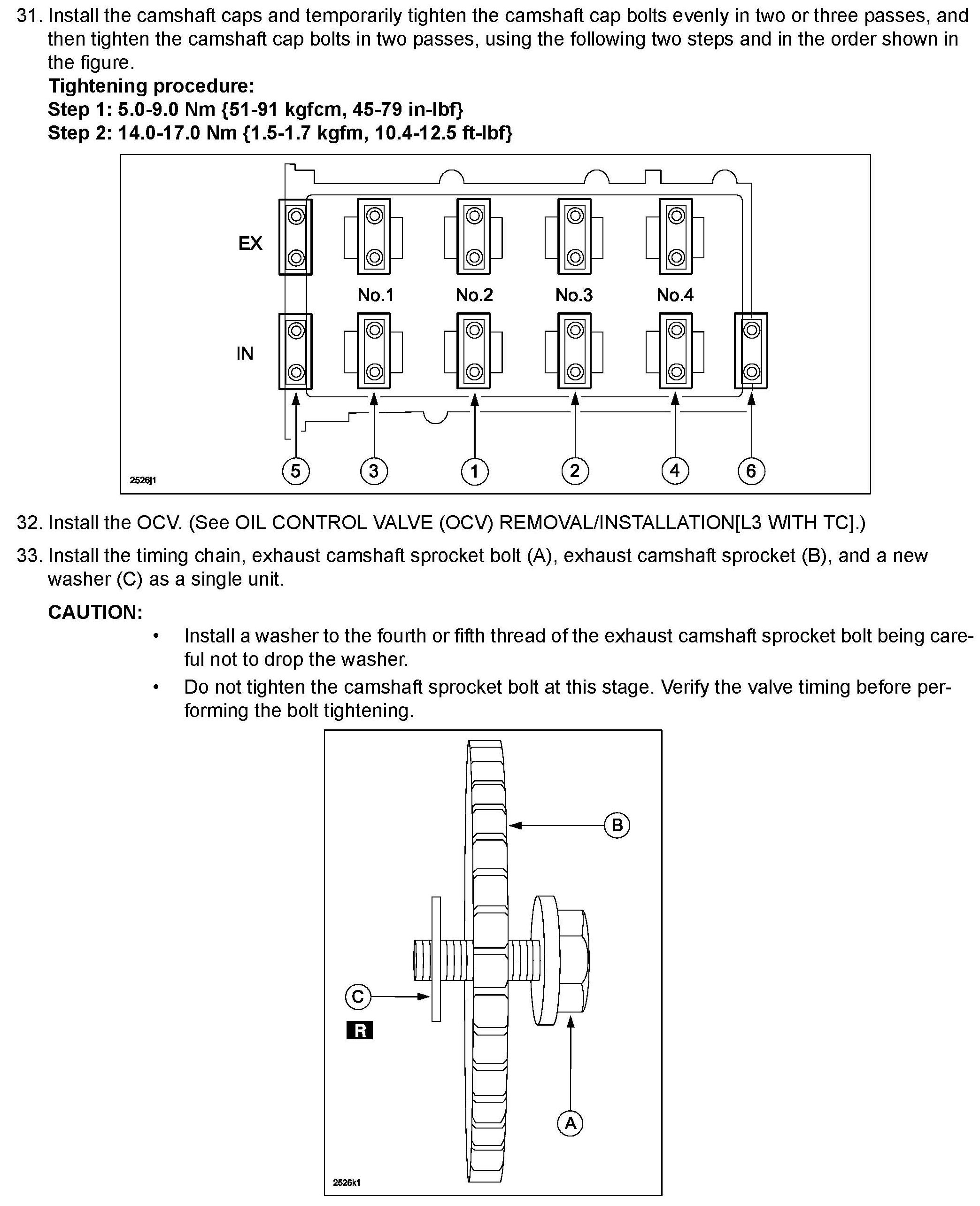

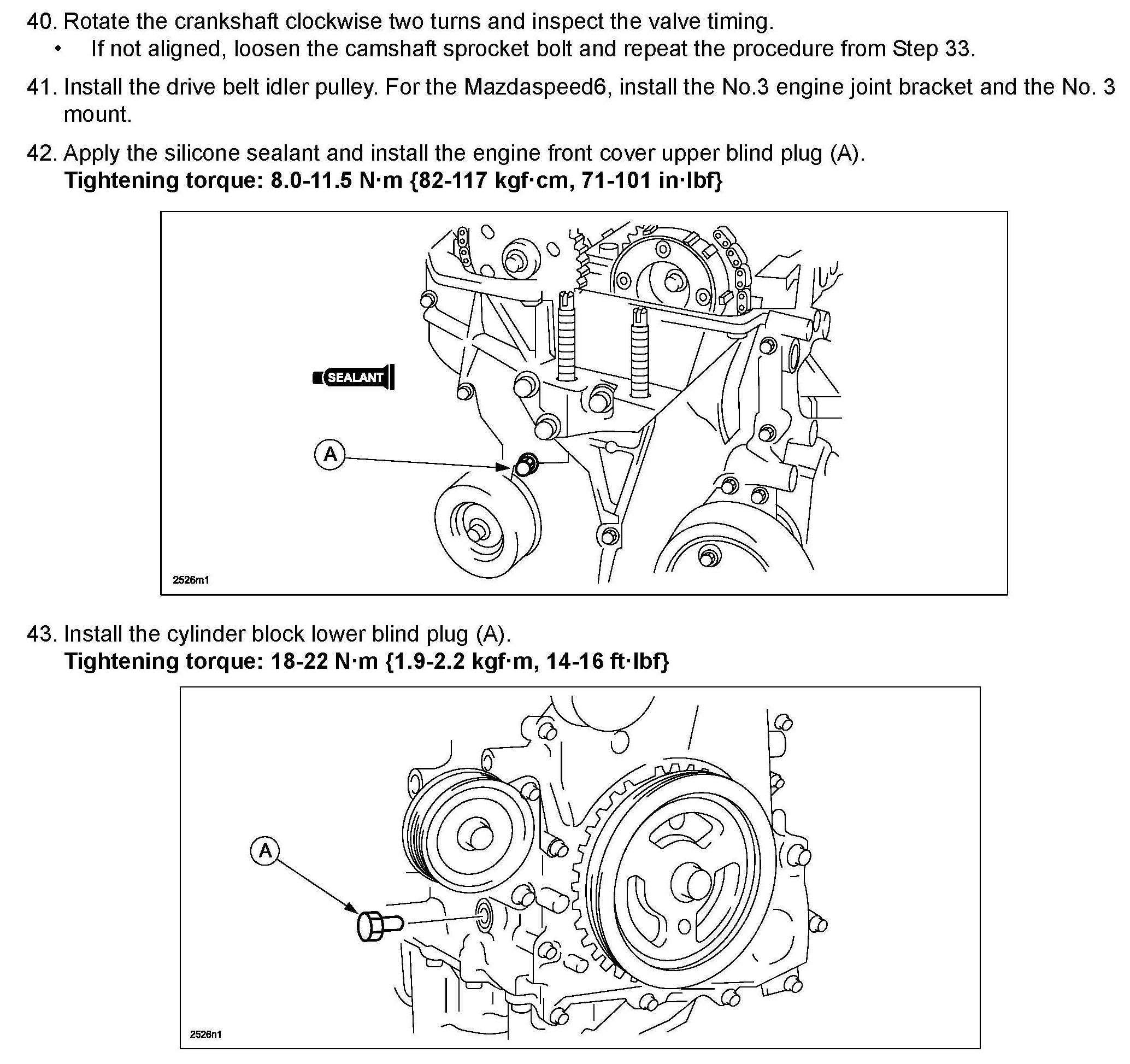

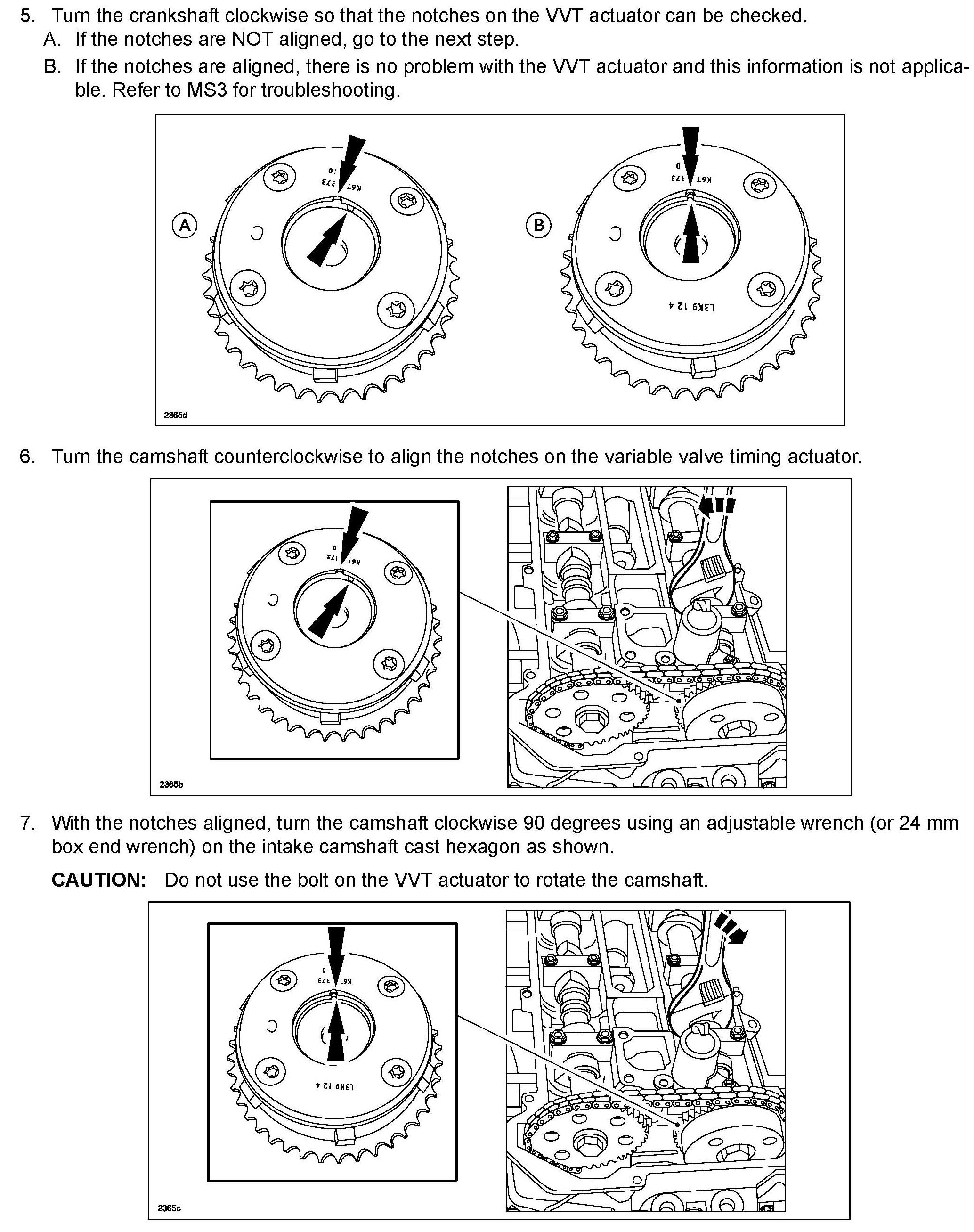

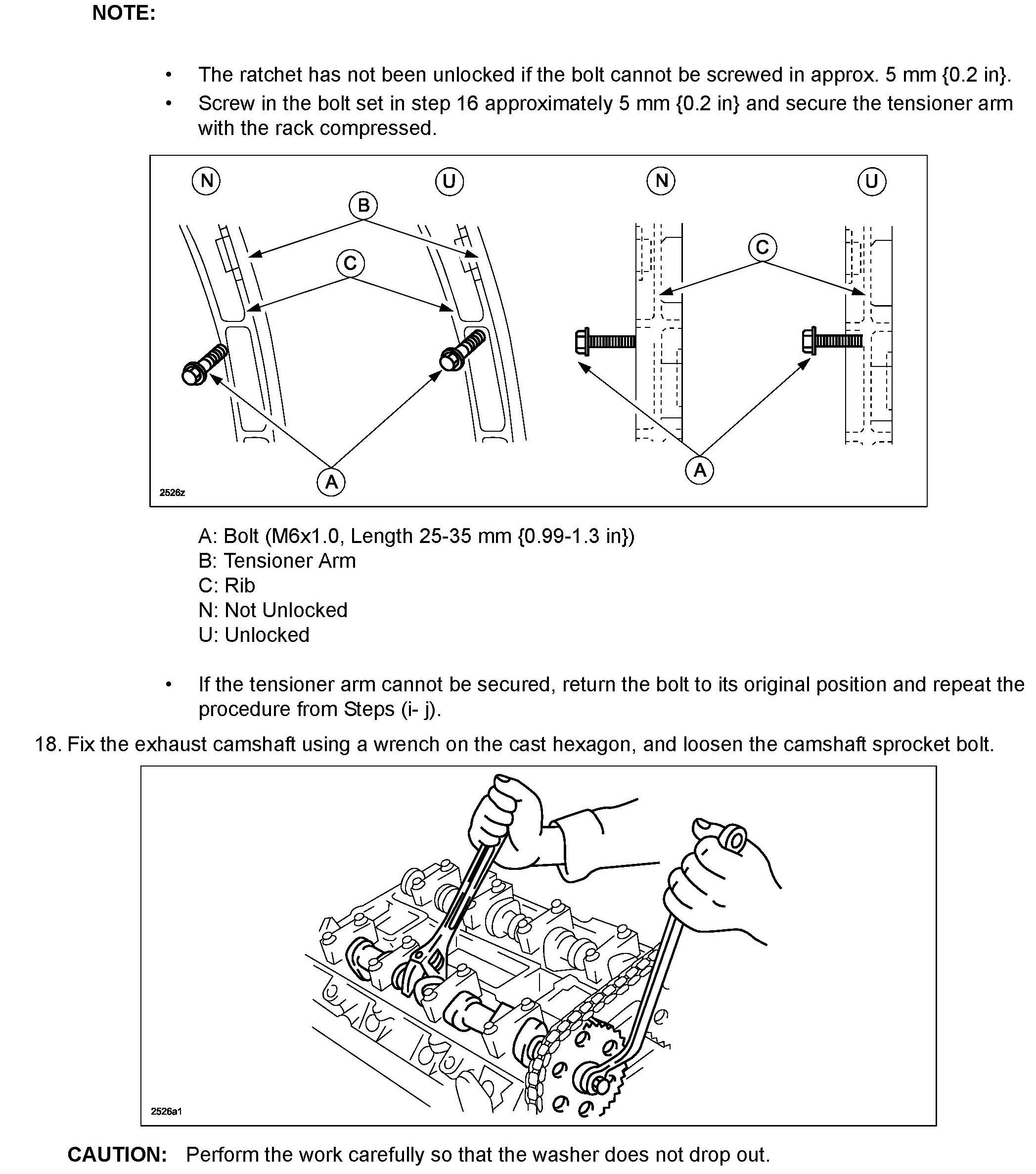

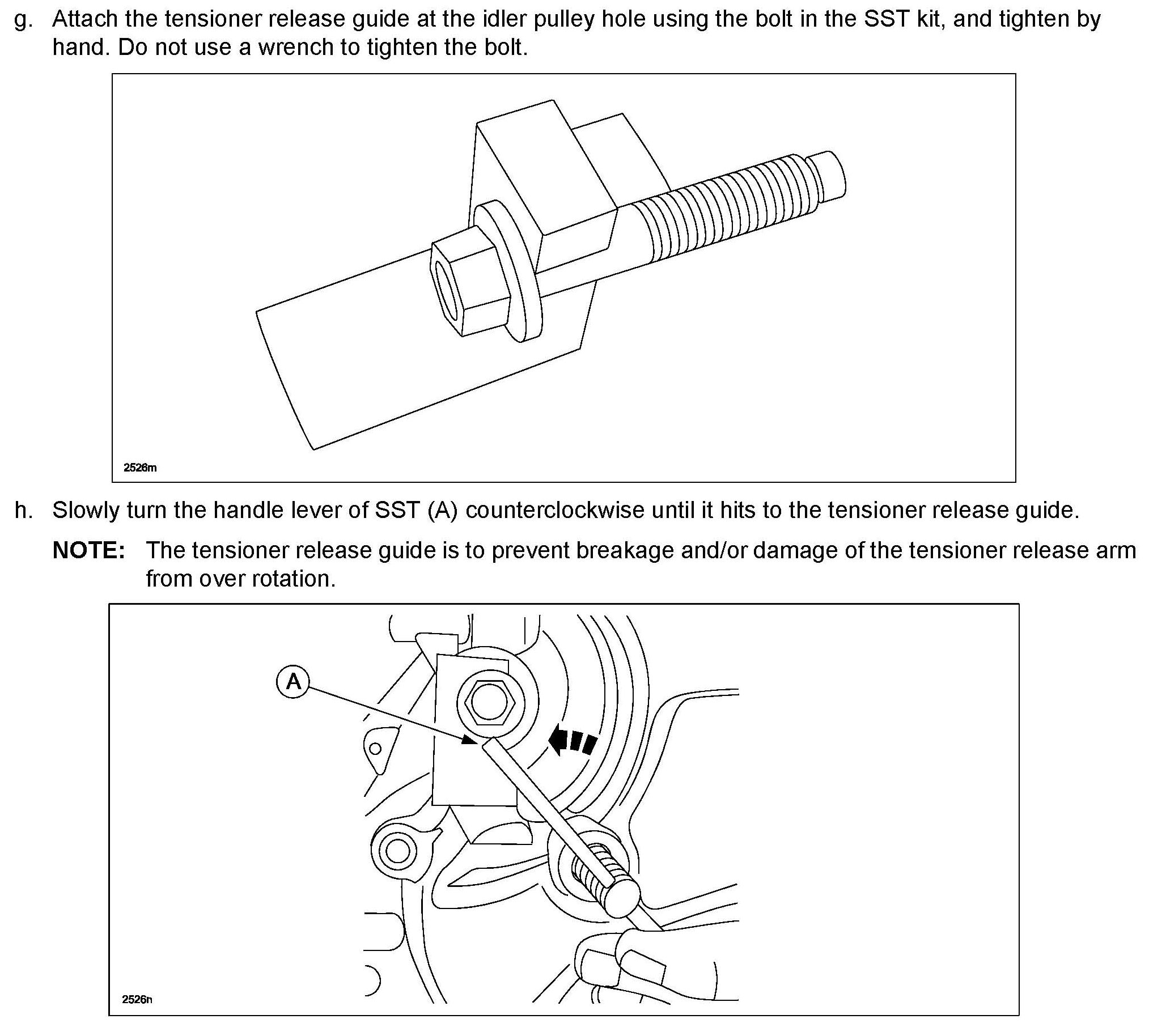

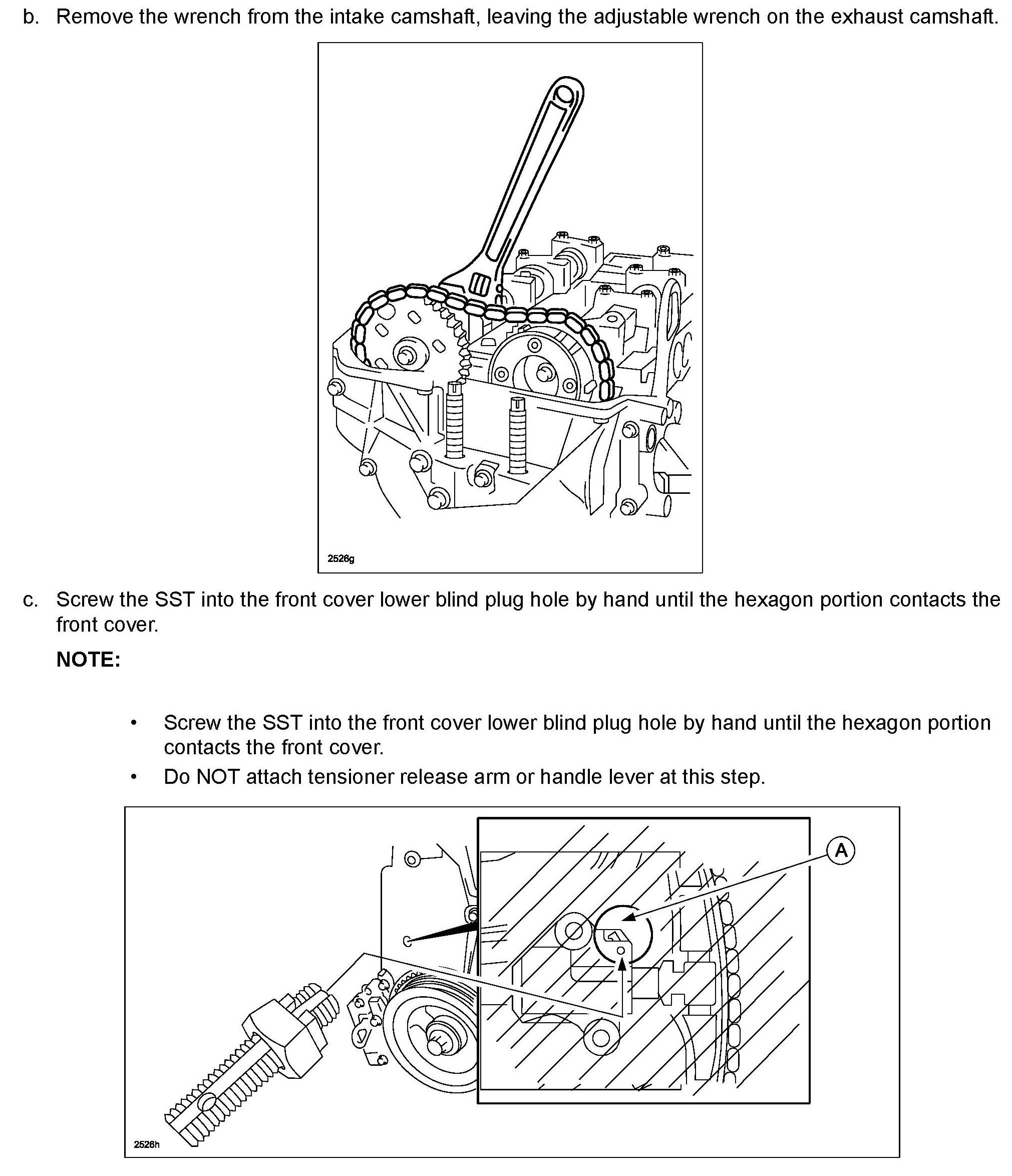

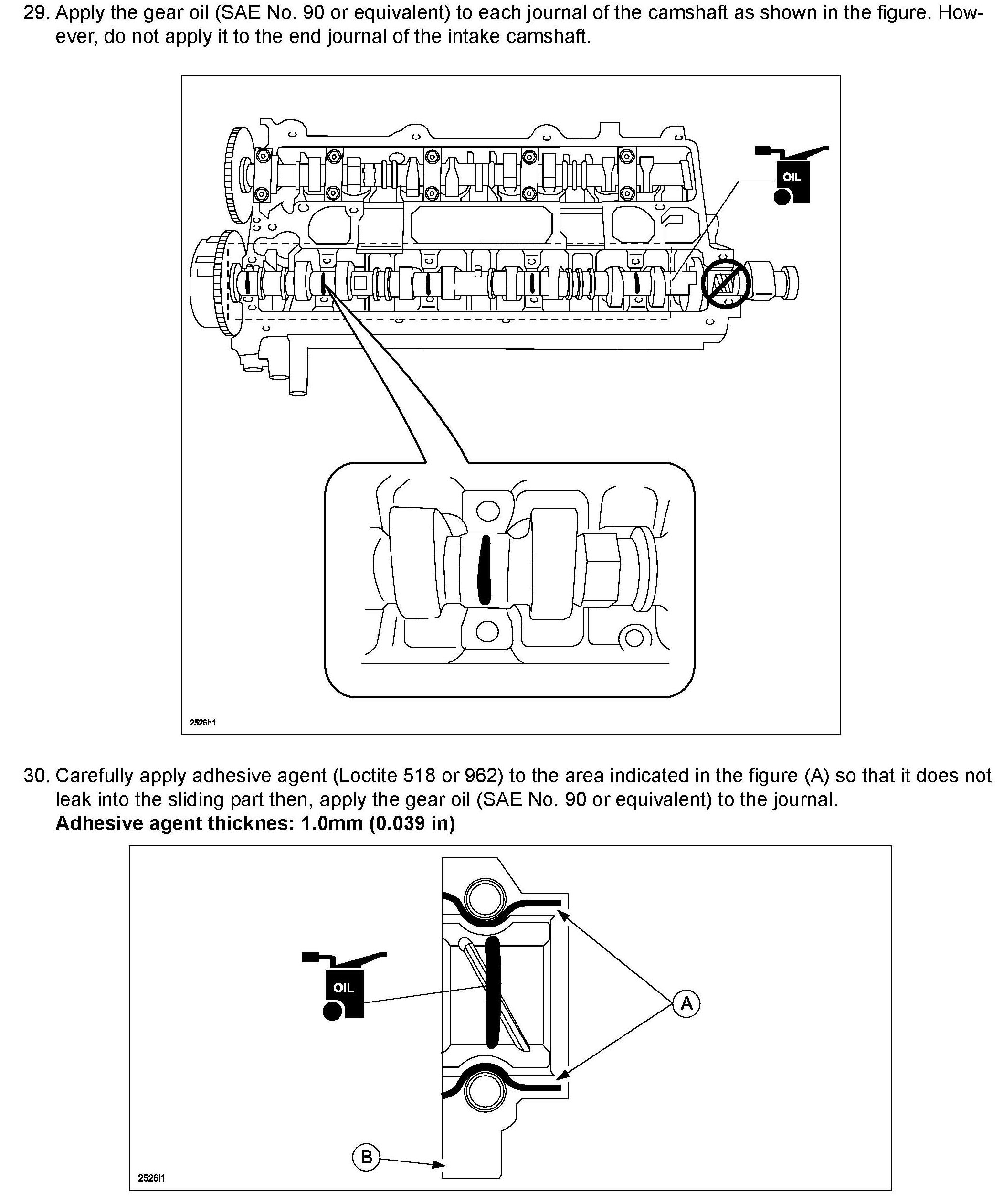

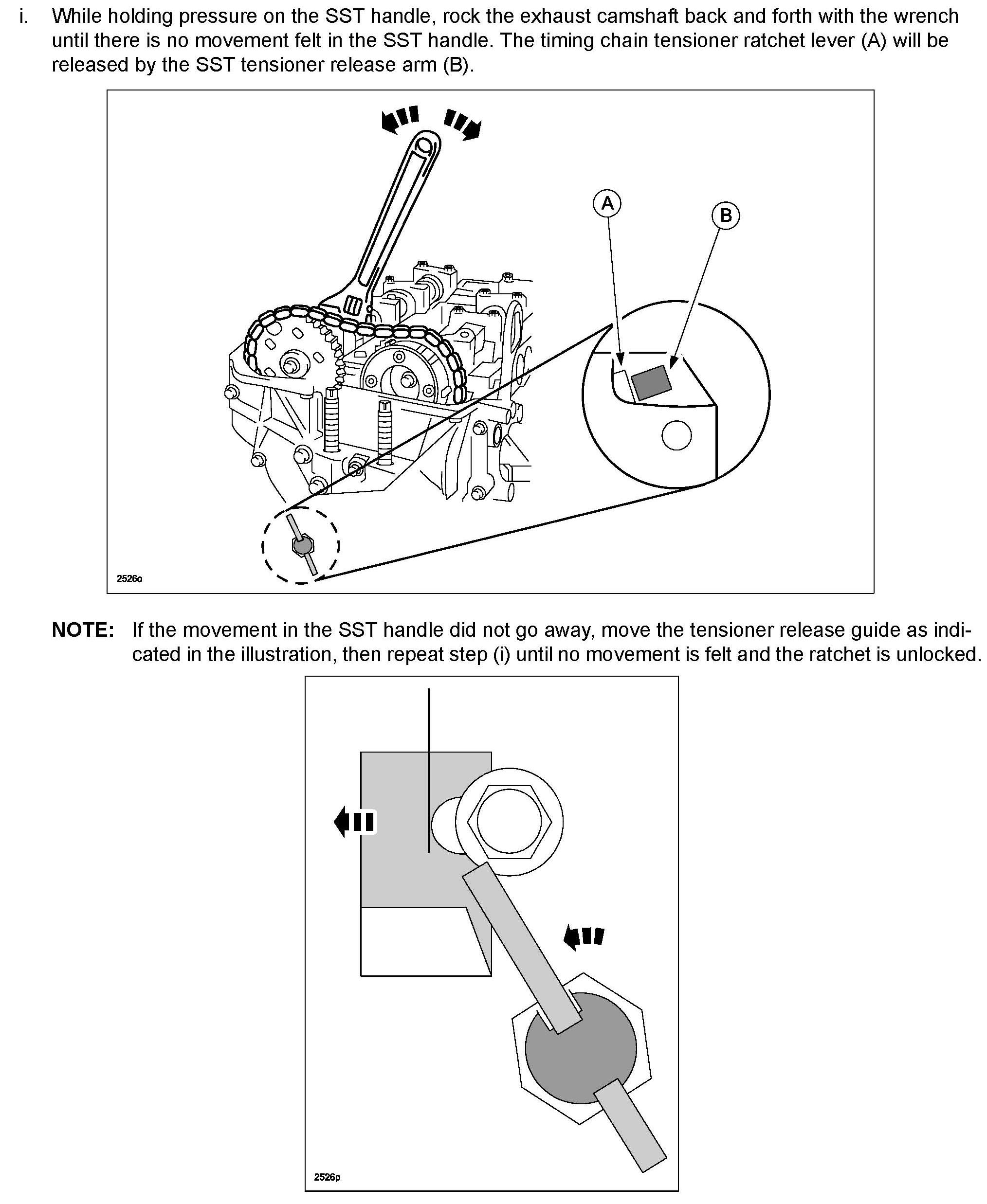

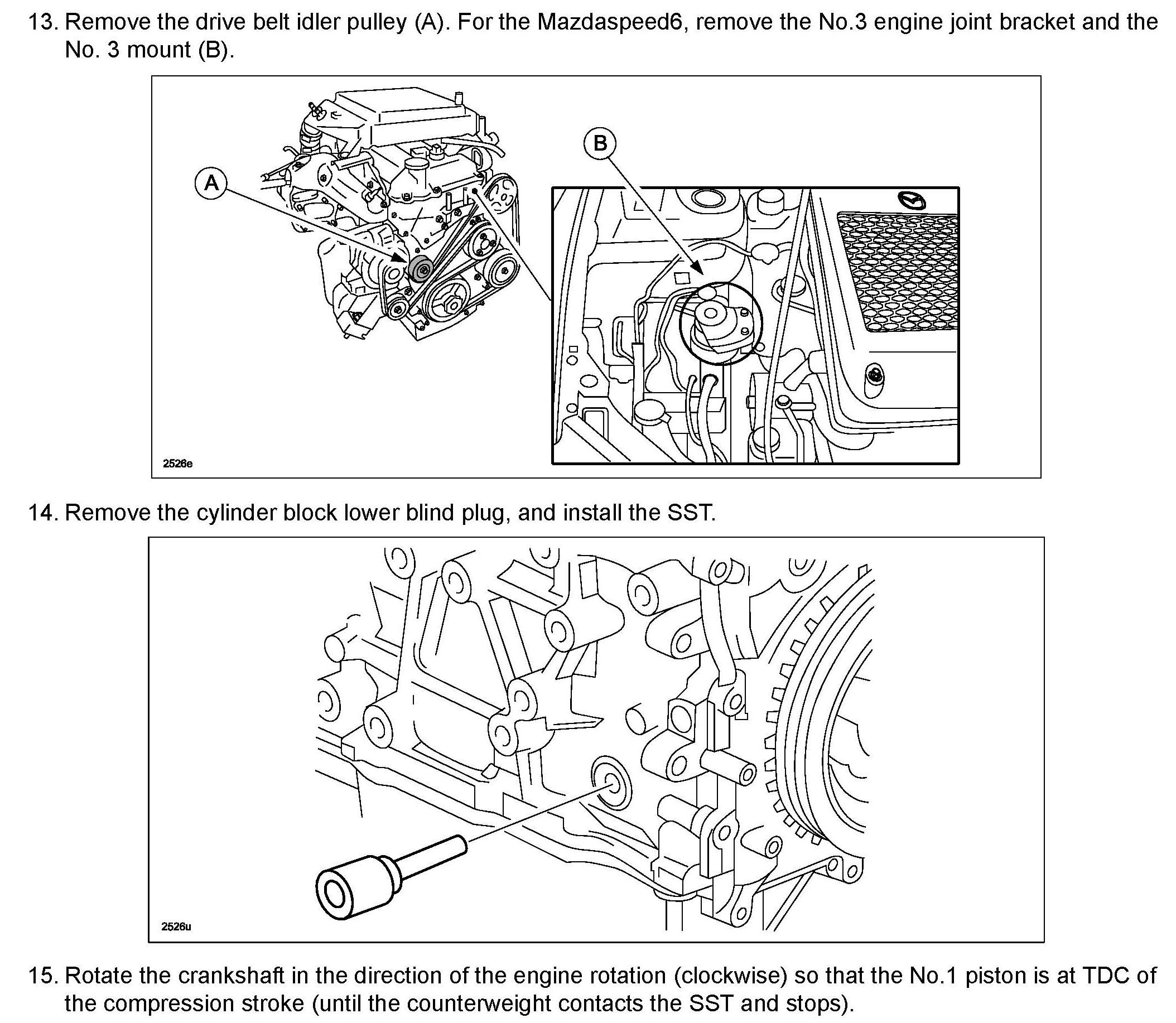

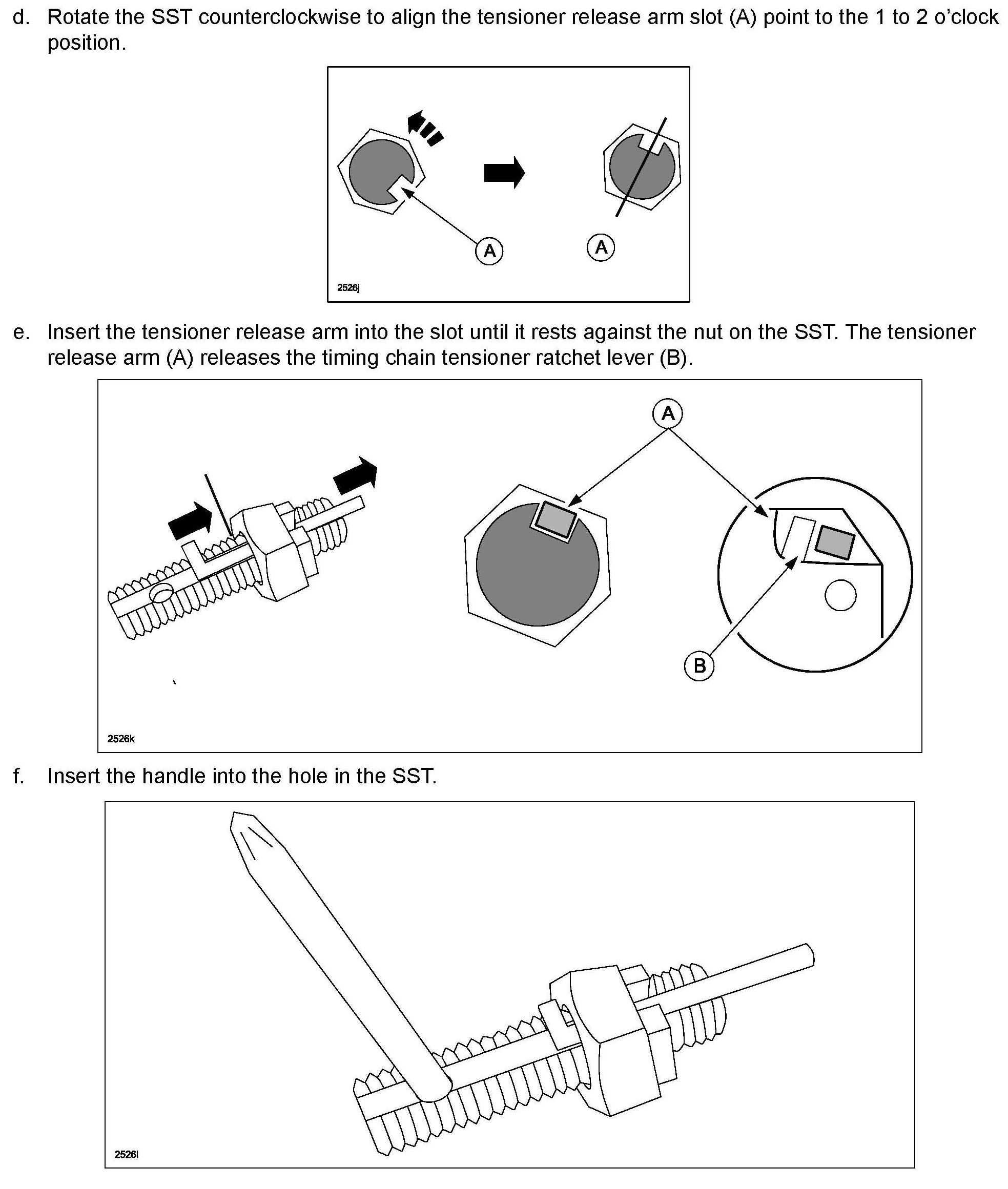

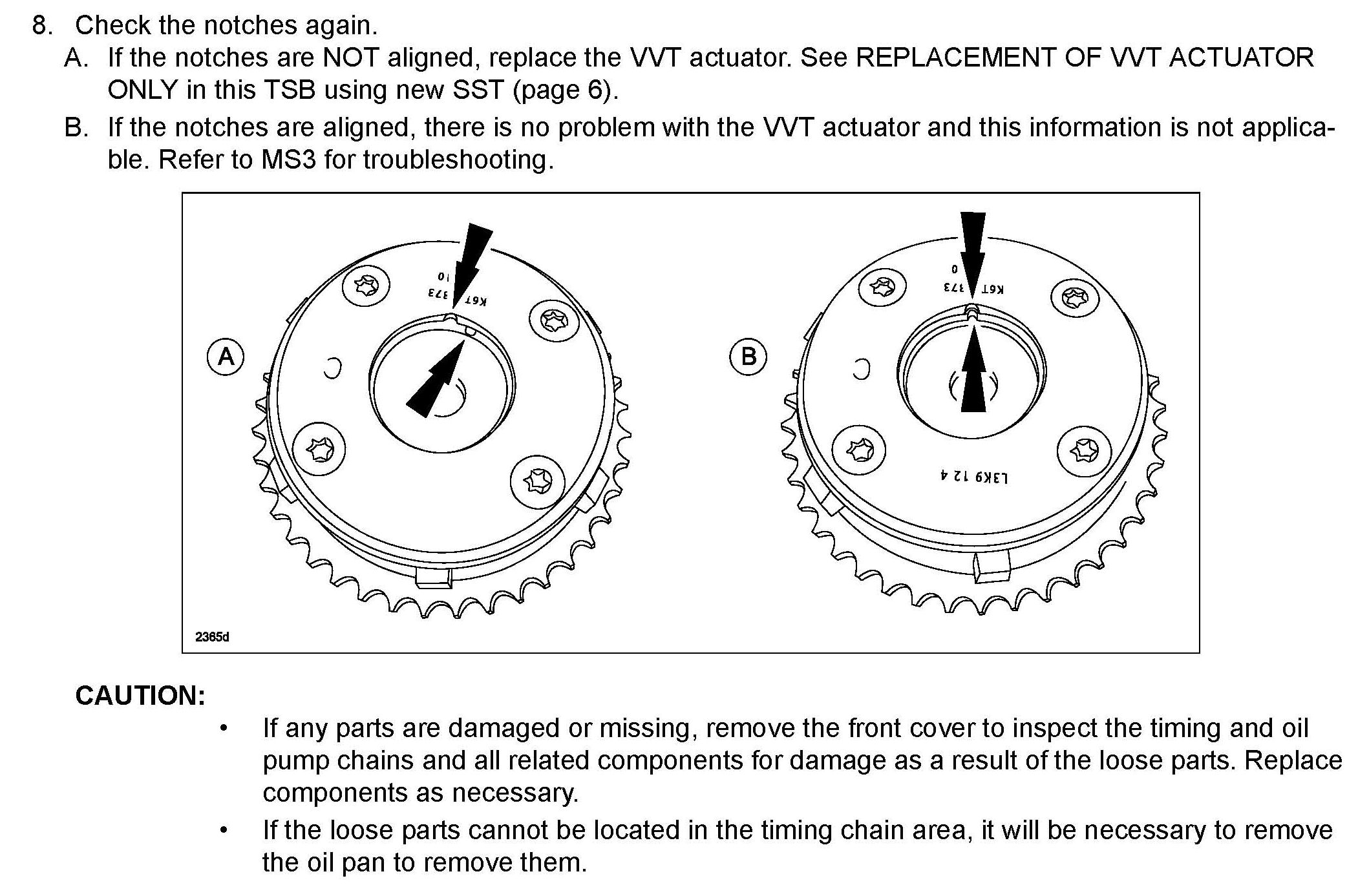

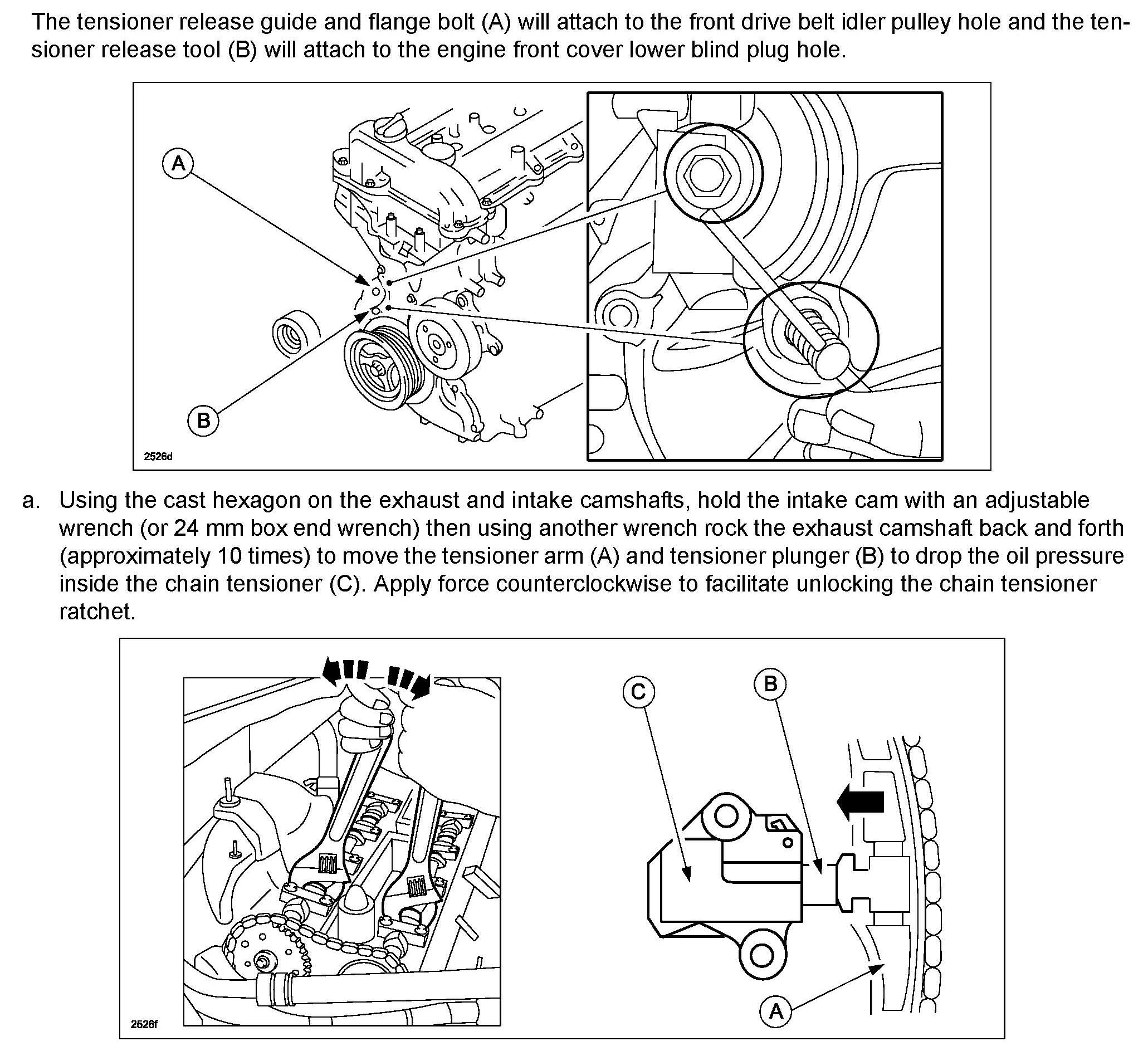

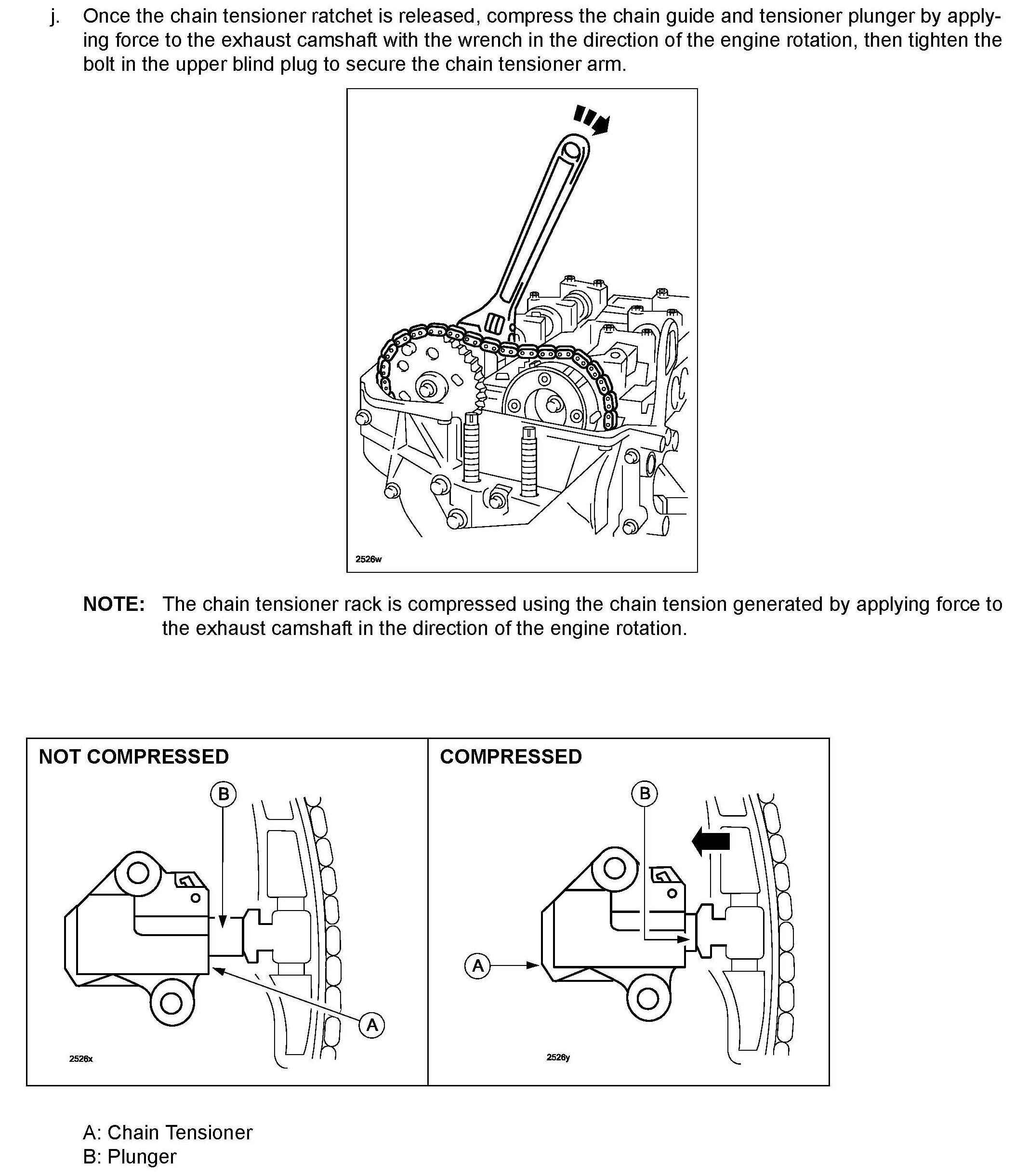

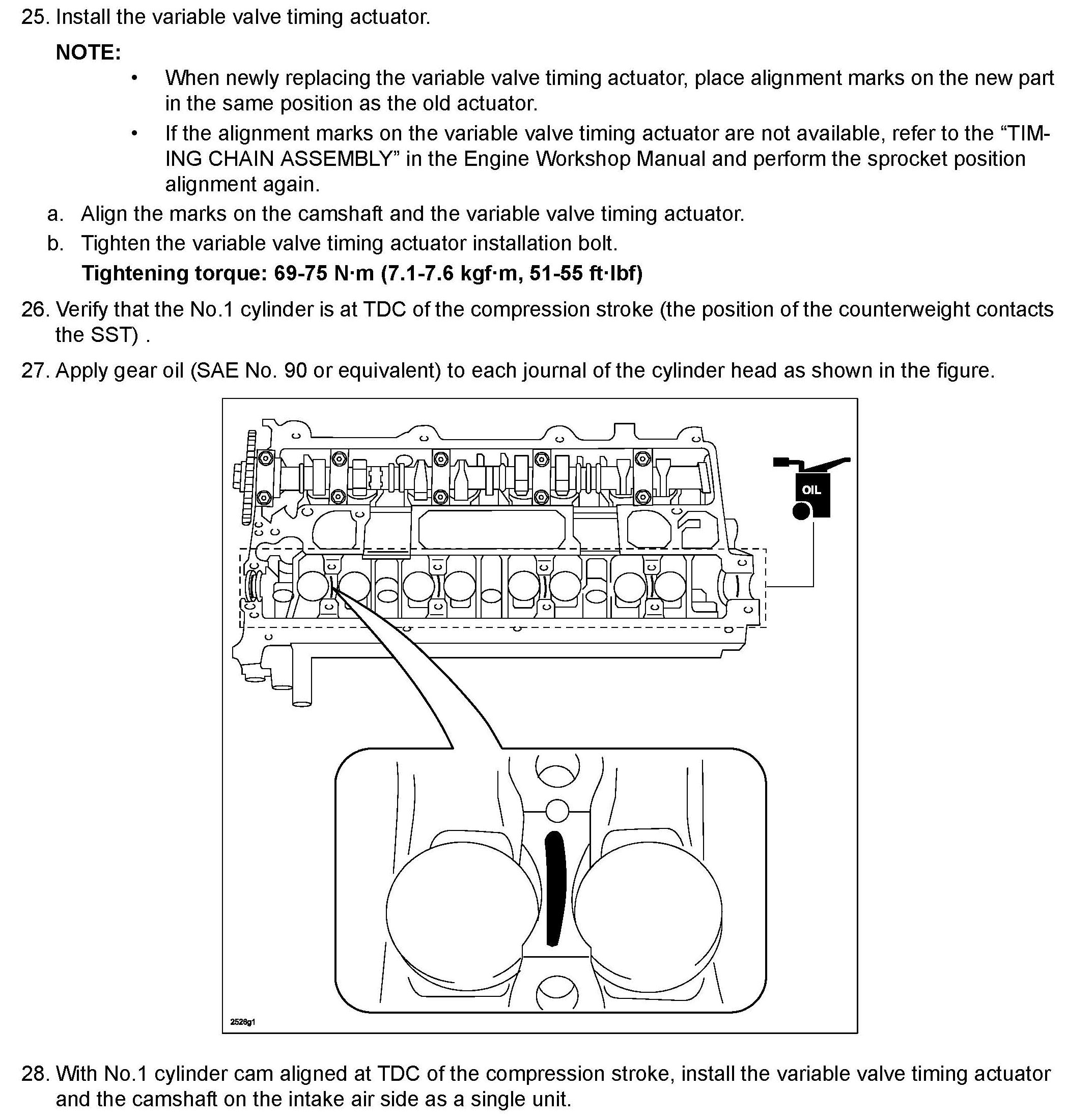

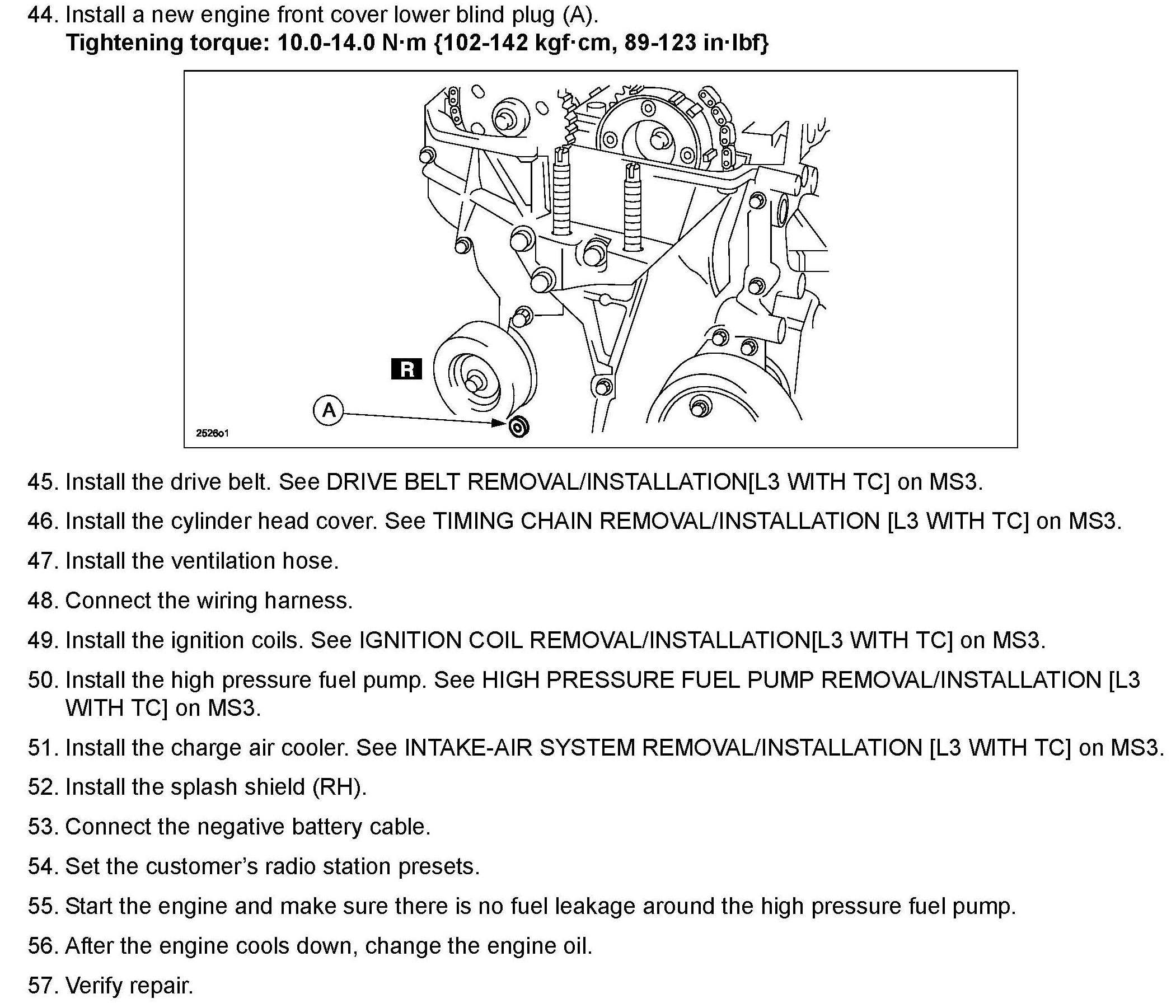

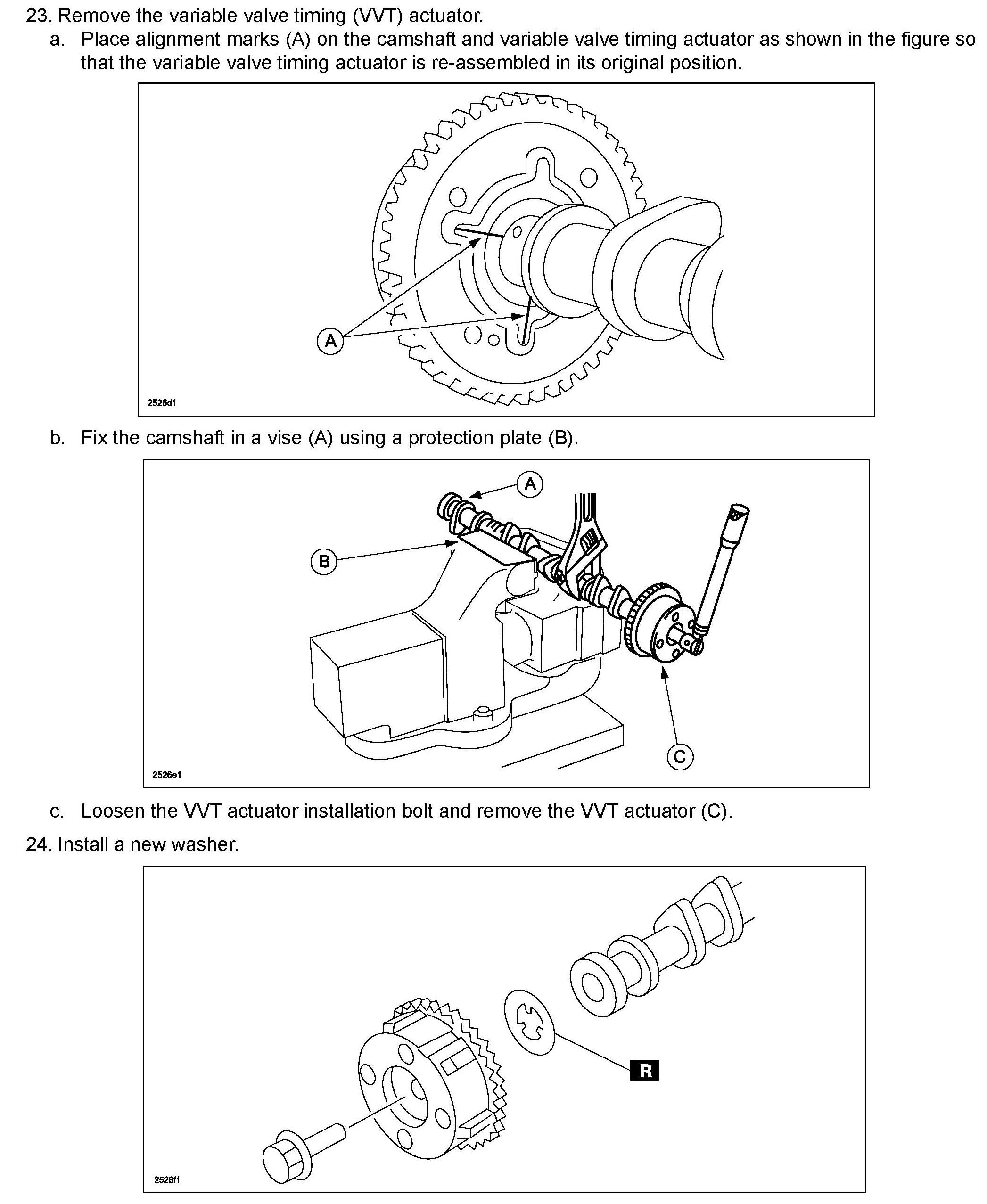

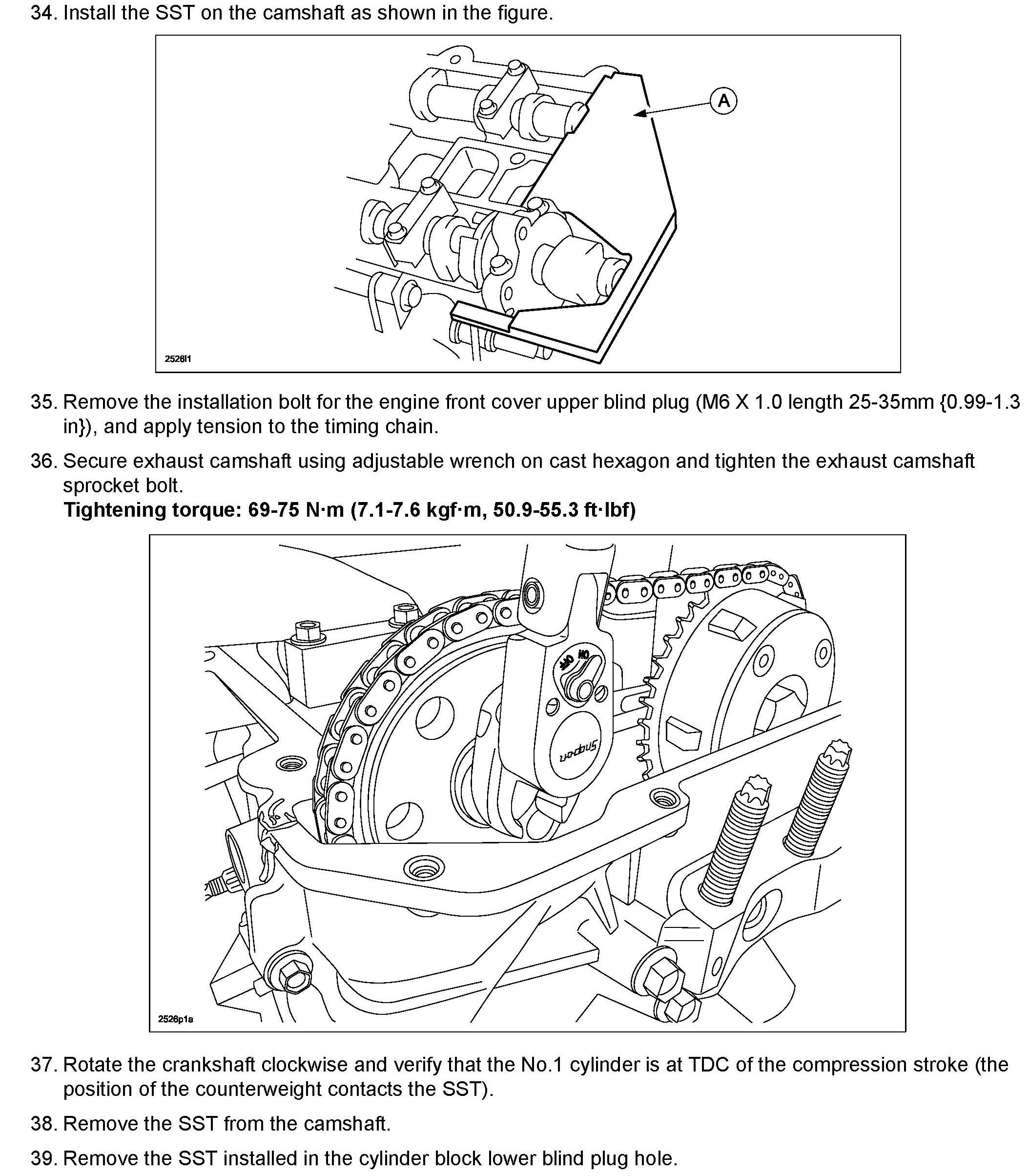

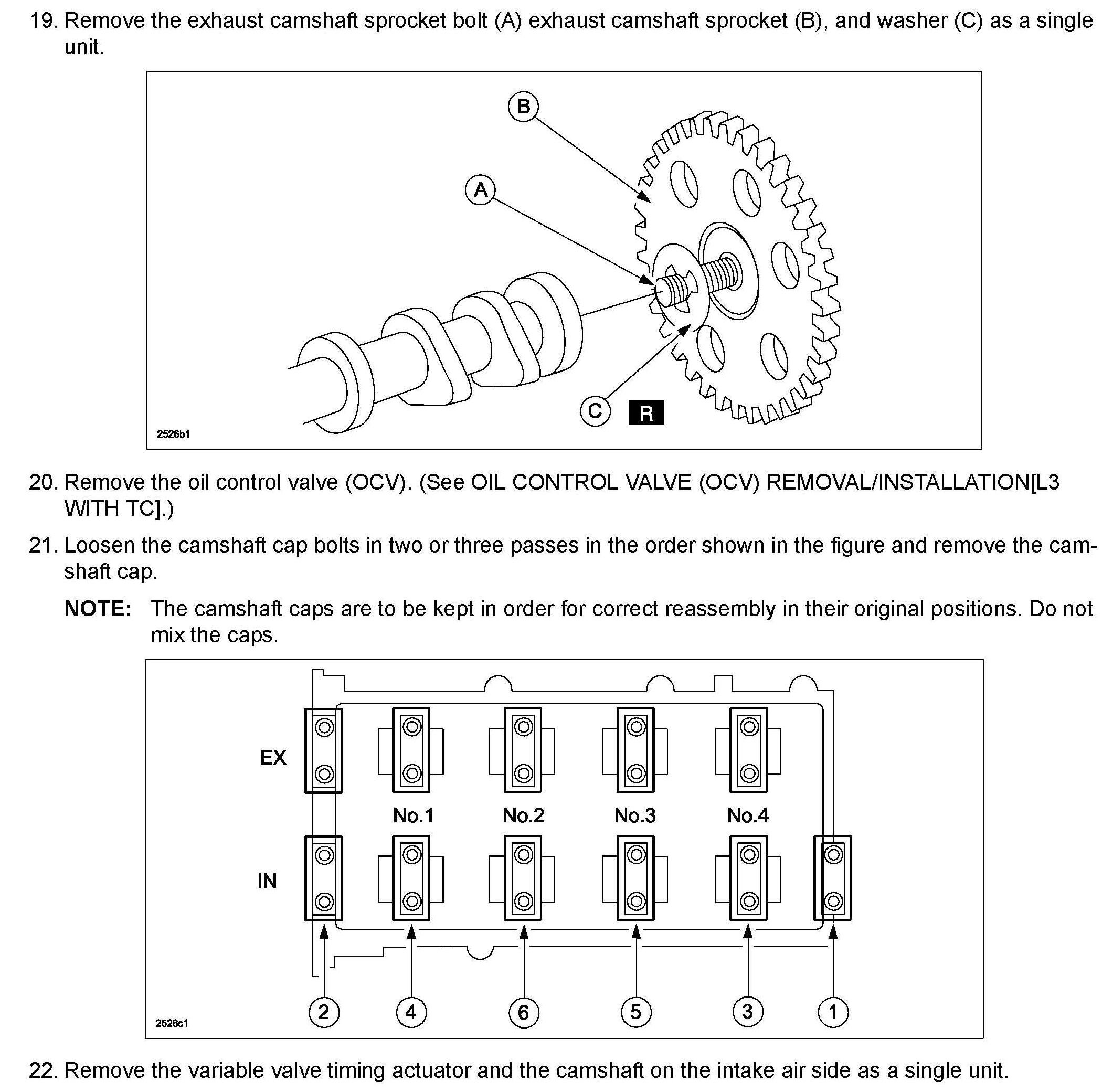

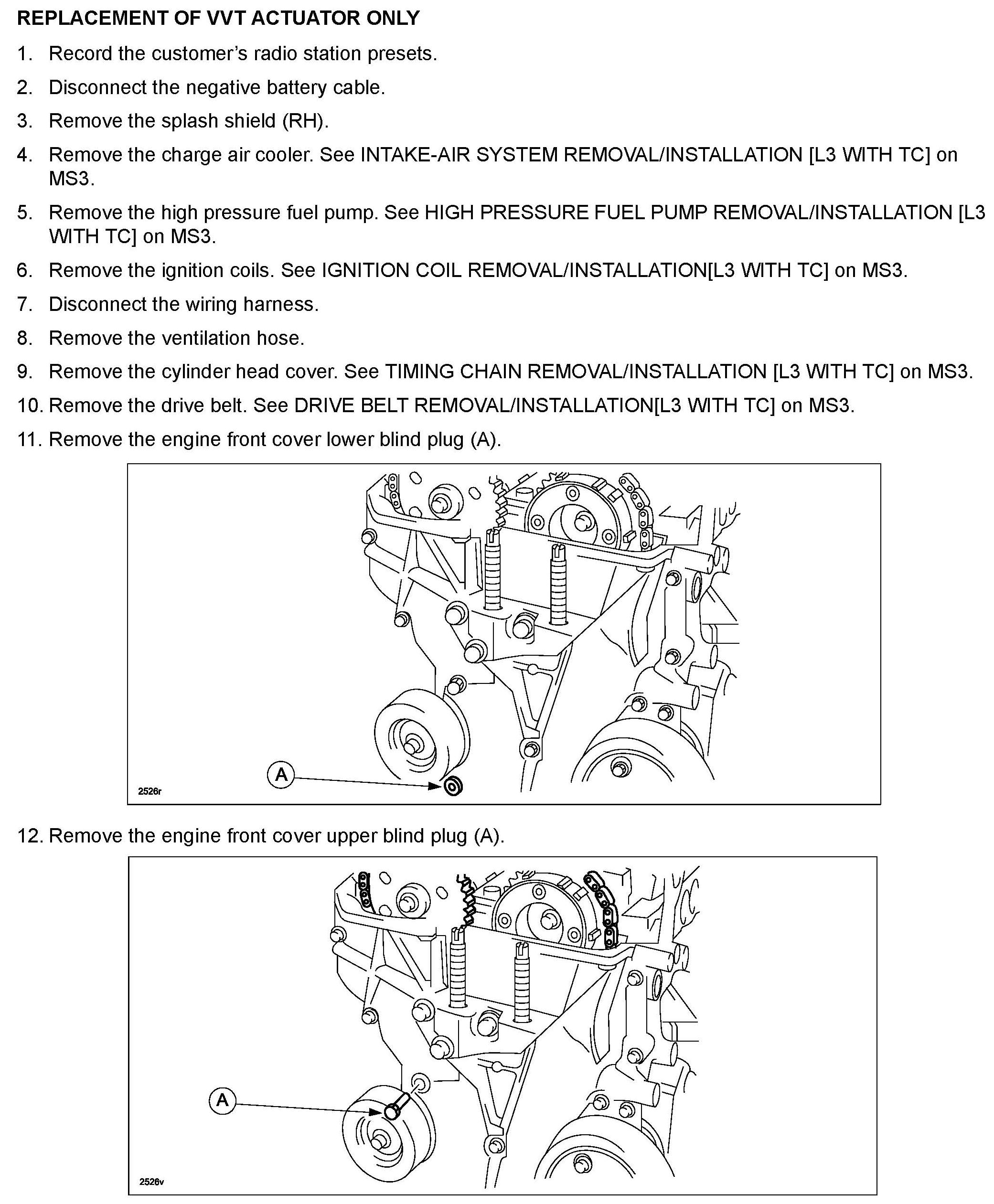

Repair Procedure







































































Repair Procedure
