No. 9 Water Temperature Gauge Indication Is Defective [Instrument Cluster]




NO. 9 WATER TEMPERATURE GAUGE INDICATION IS DEFECTIVE [INSTRUMENT CLUSTER]

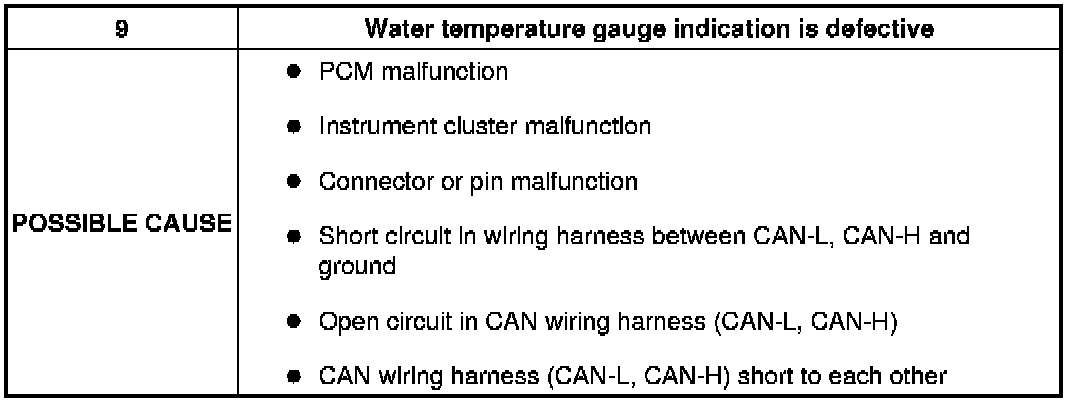

Possible Cause:

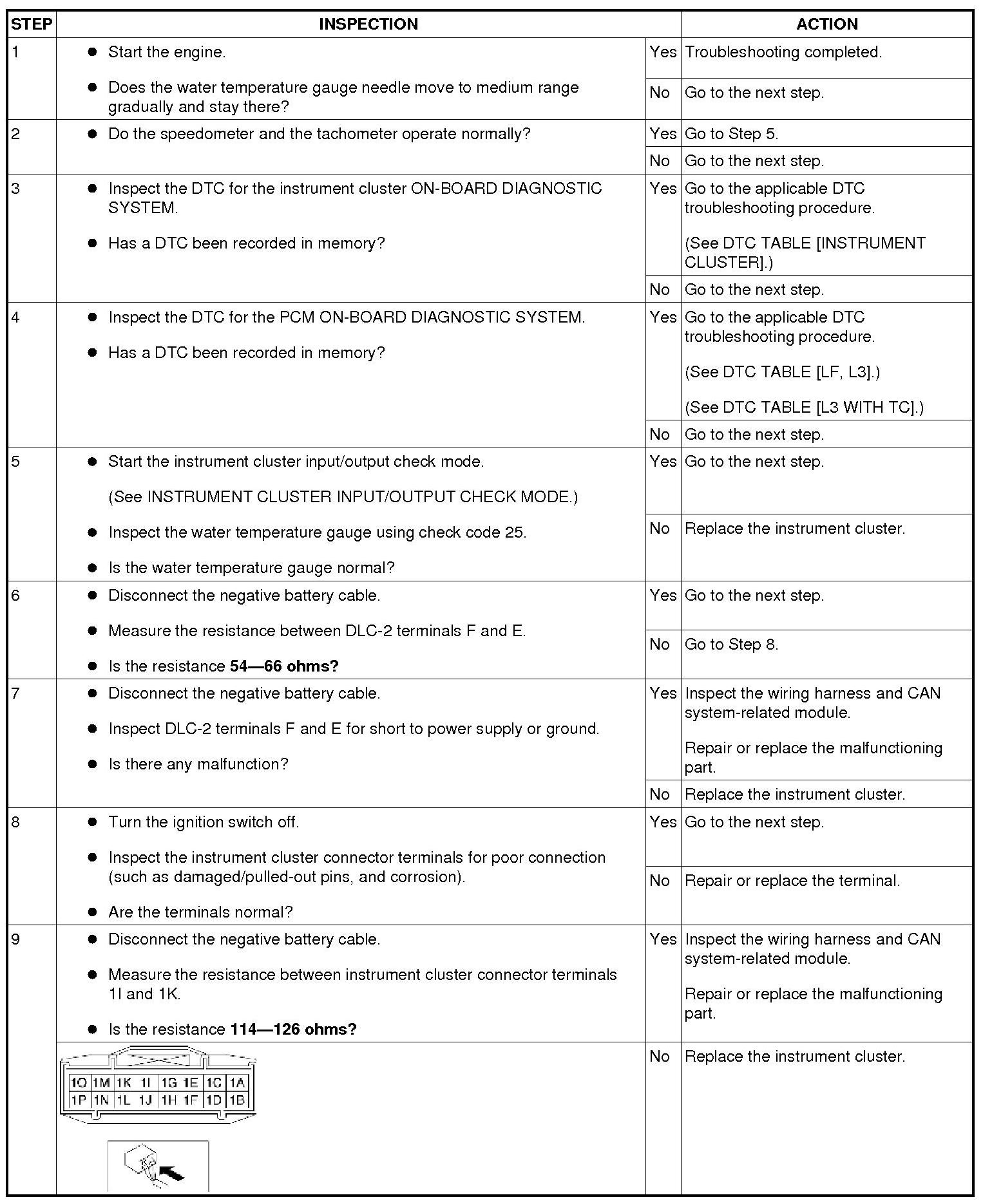

Diagnostic procedure

Step 1-Step 9:
