No. 7 Speedometer Indication Is Defective [Instrument Cluster]




NO. 7 SPEEDOMETER INDICATION IS DEFECTIVE [INSTRUMENT CLUSTER]

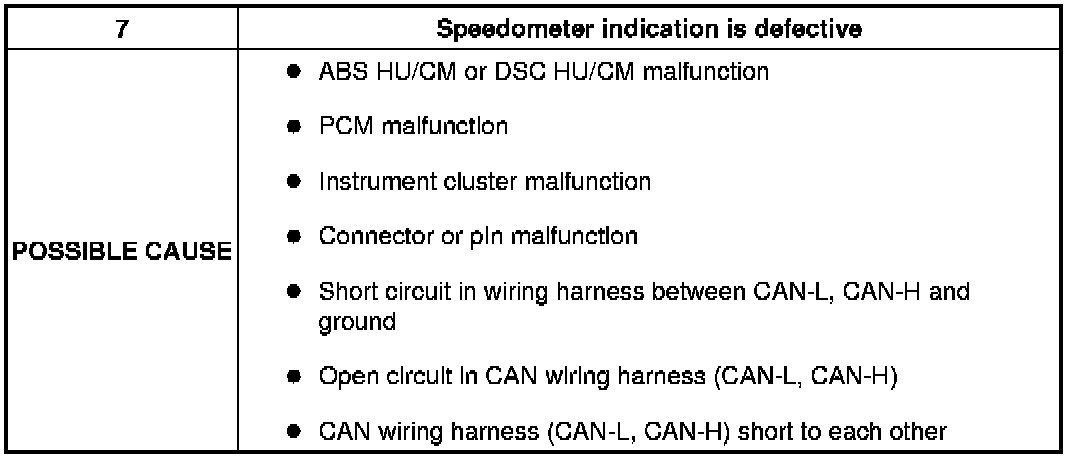

Possible Cause:





Diagnostic procedure

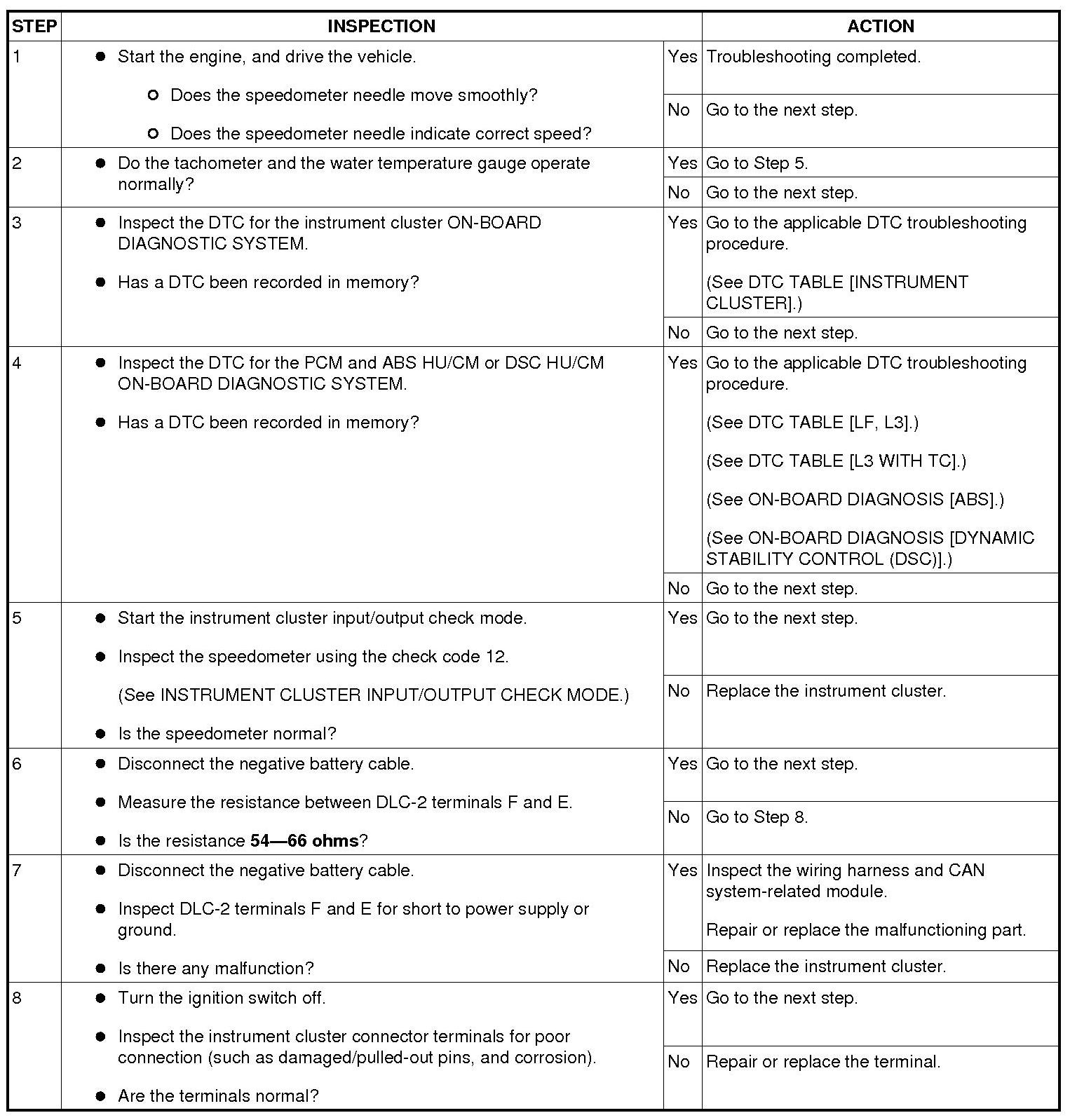

Step 1-Step 8:

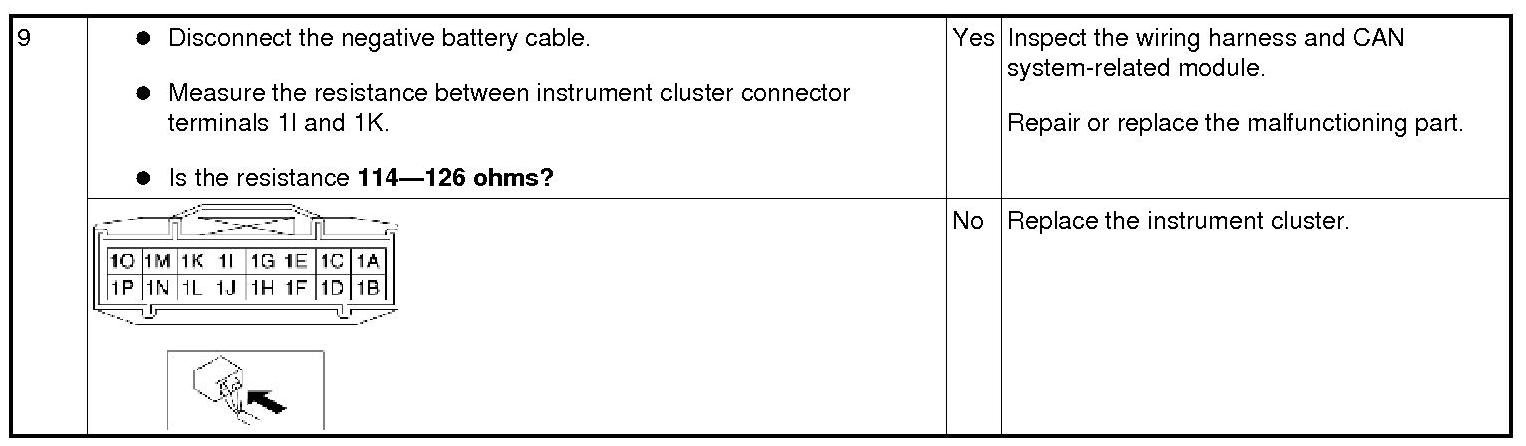

Step 9:
