No. 5 Brake System Warning Light Illuminates [Instrument Cluster]

NO. 5 BRAKE SYSTEM WARNING LIGHT ILLUMINATES [INSTRUMENT CLUSTER]

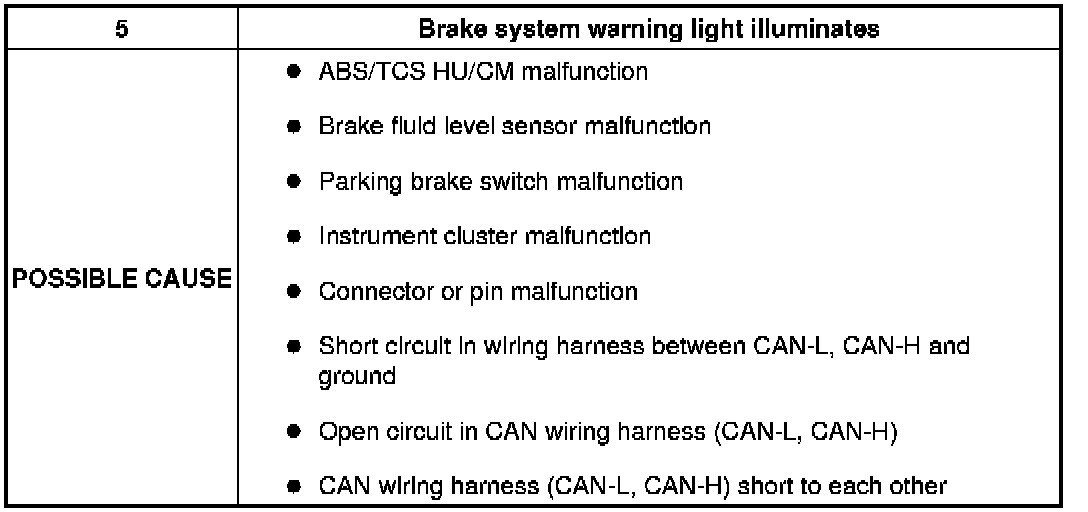

Possible Cause:

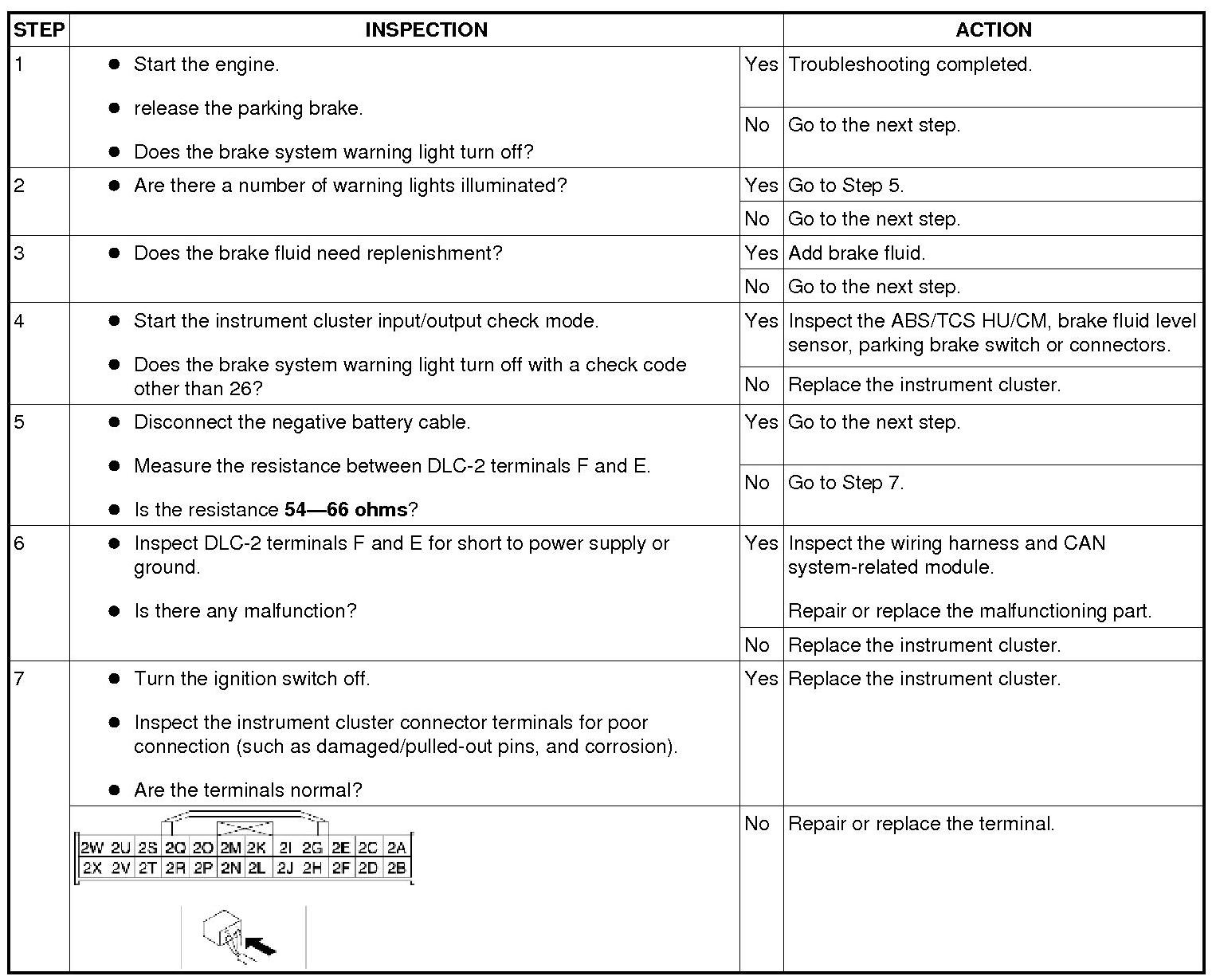

Diagnostic procedure

Step 1-Step 7:
