No.5 No Temperature Control With Climate Control Unit
No.5 No Temperature Control With Climate Control Unit
NO.5 TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT

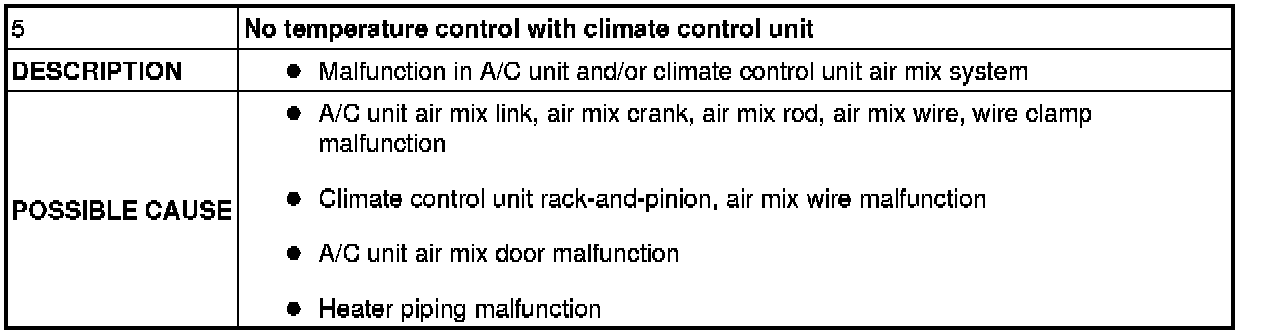

Description/Possible Cause:

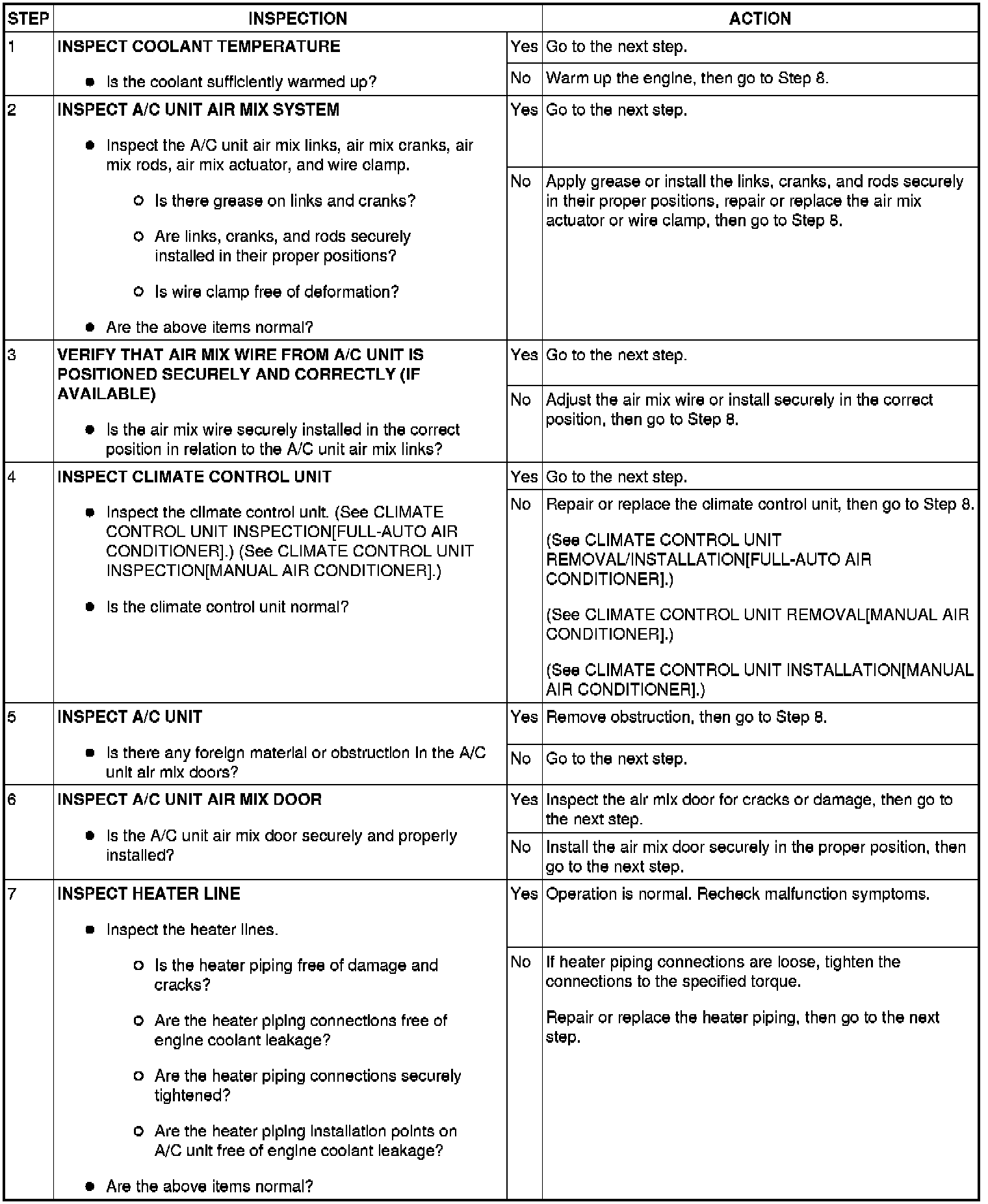

Diagnostic procedure
Step 1-Step 7:
Step 8:
