No.25 A/C Is Not Cut Off Under Wide Open Throttle Conditions




NO.25 A/C IS NOT CUT OFF UNDER WIDE OPEN THROTTLE CONDITIONS [L3 WITH TC]

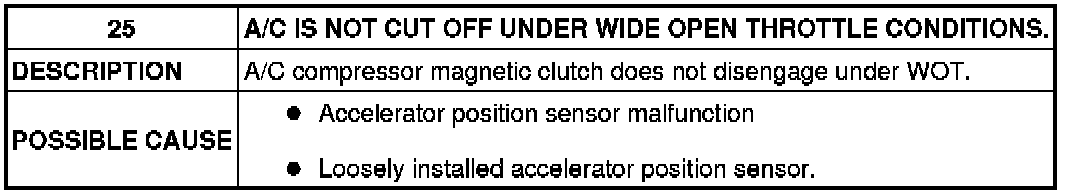

Description/Possible Cause:

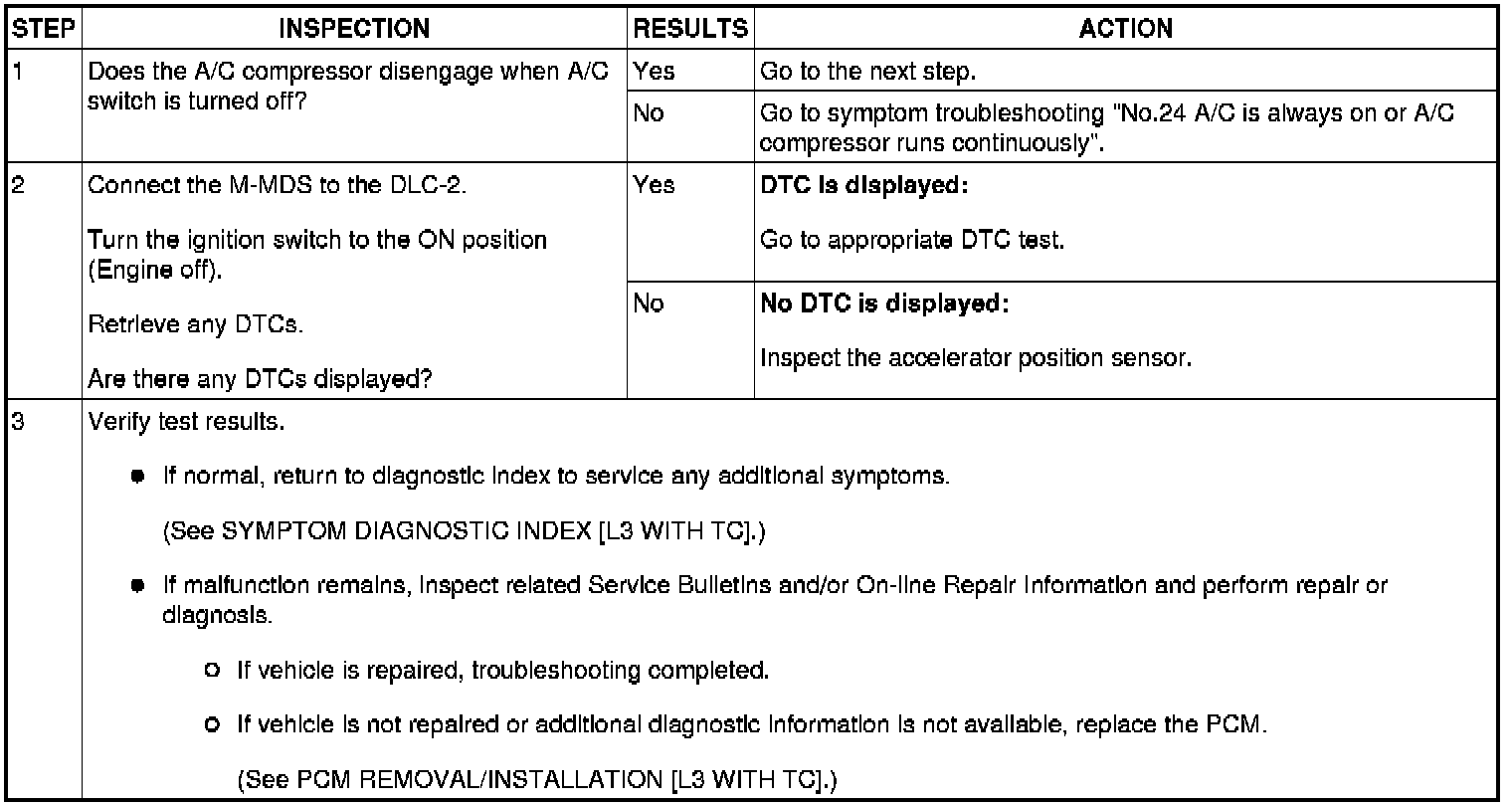

Diagnostic procedure

Step 1-Step 3:
