No.24 A/C Is Always On Or A/C Compressor Runs Continuously




NO.24 A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY [L3 WITH TC]

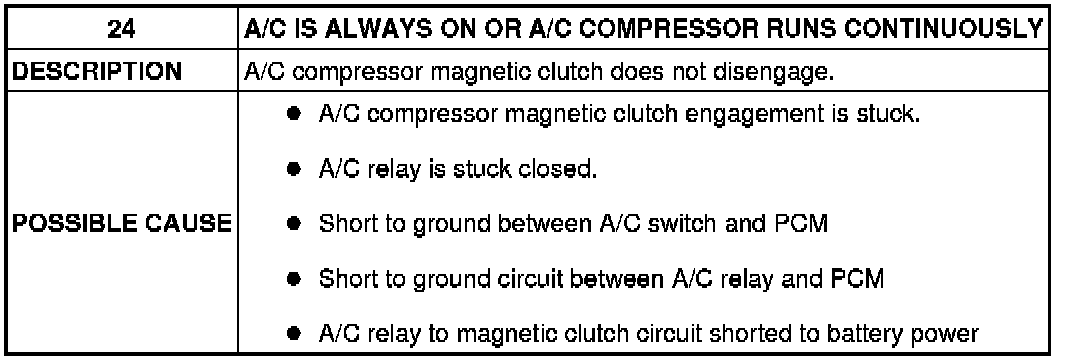

Description/Possible Cause:

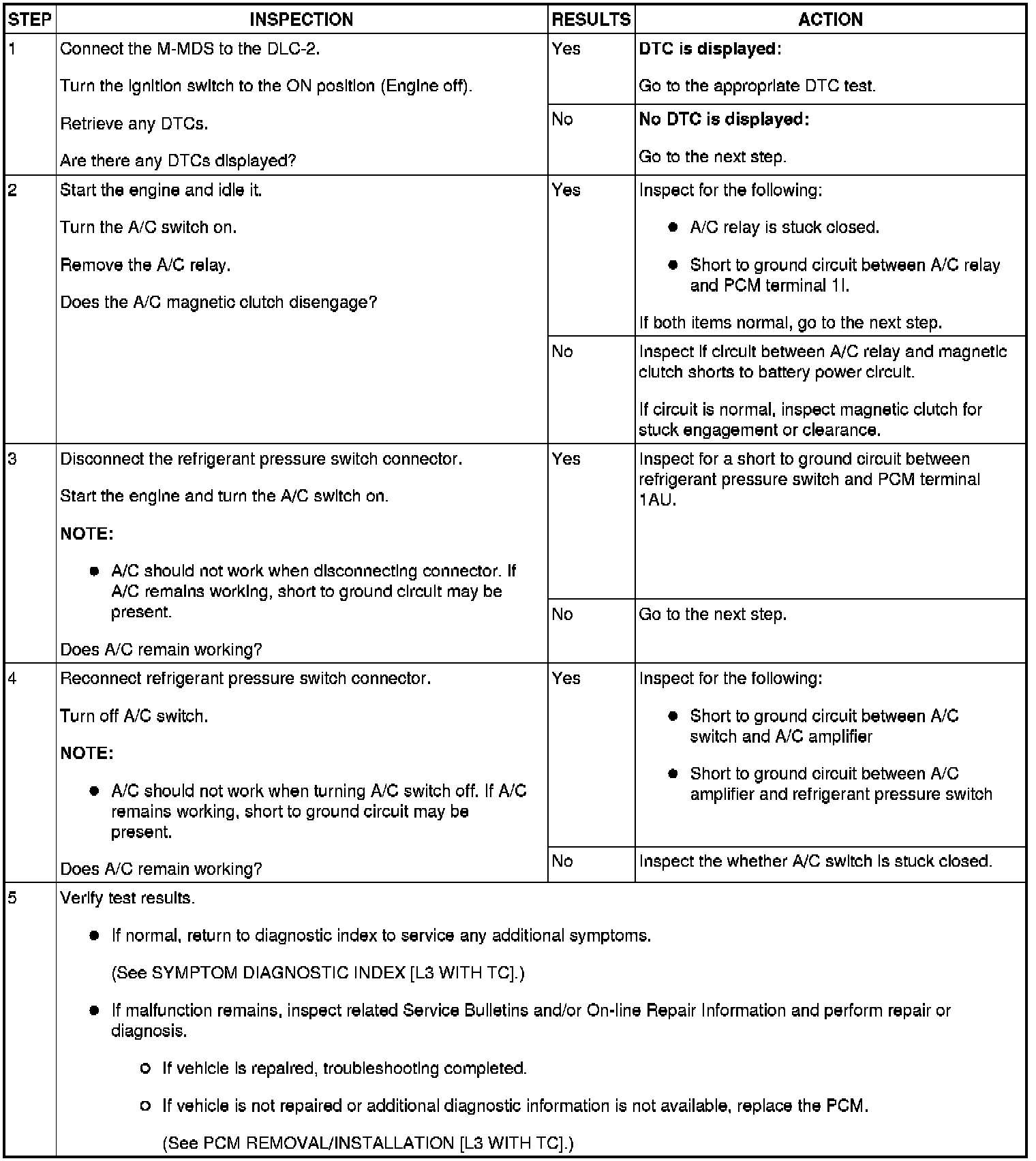

Diagnostic procedure

Step 1-Step 5:
