No.17 Cooling System Concerns-Overheating
No.17 Cooling System Concerns-Overheating
NO.17
COOLING SYSTEM
CONCERNS-OVERHEATING [L3 WITH TC]

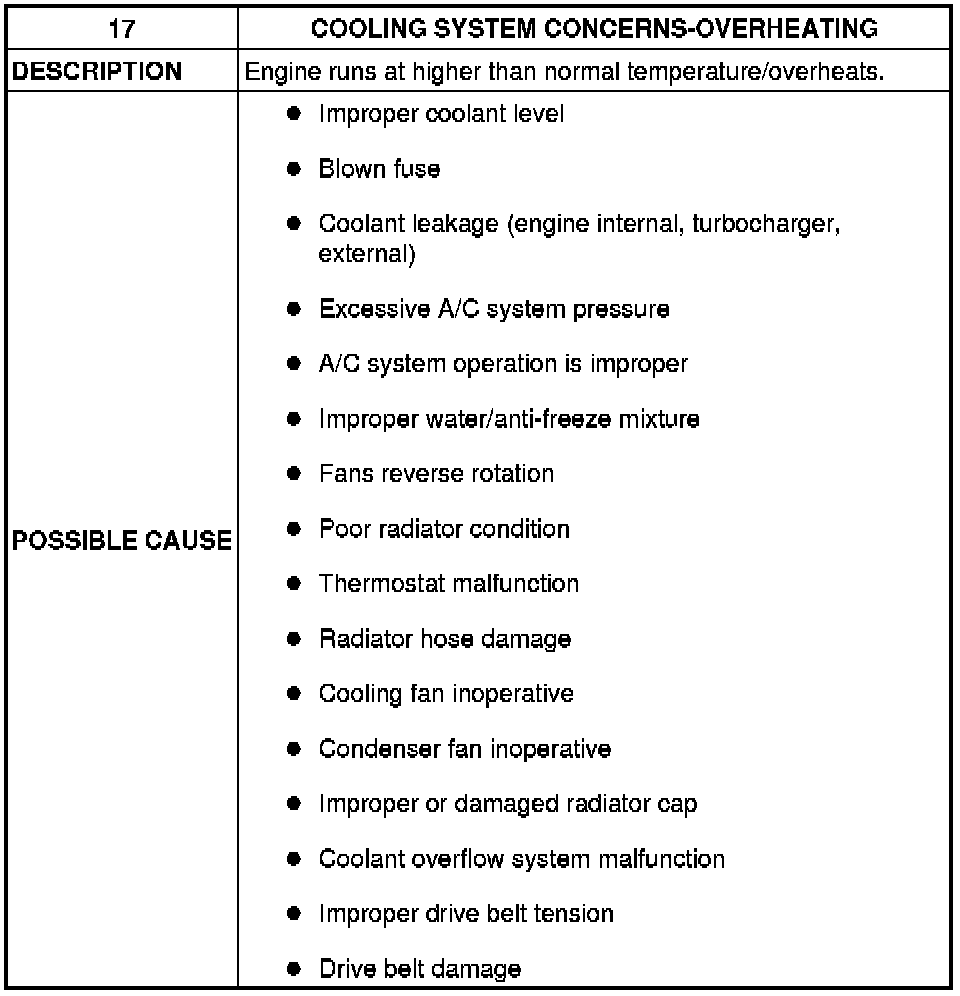

Description/Possible Cause:
Diagnostic procedure

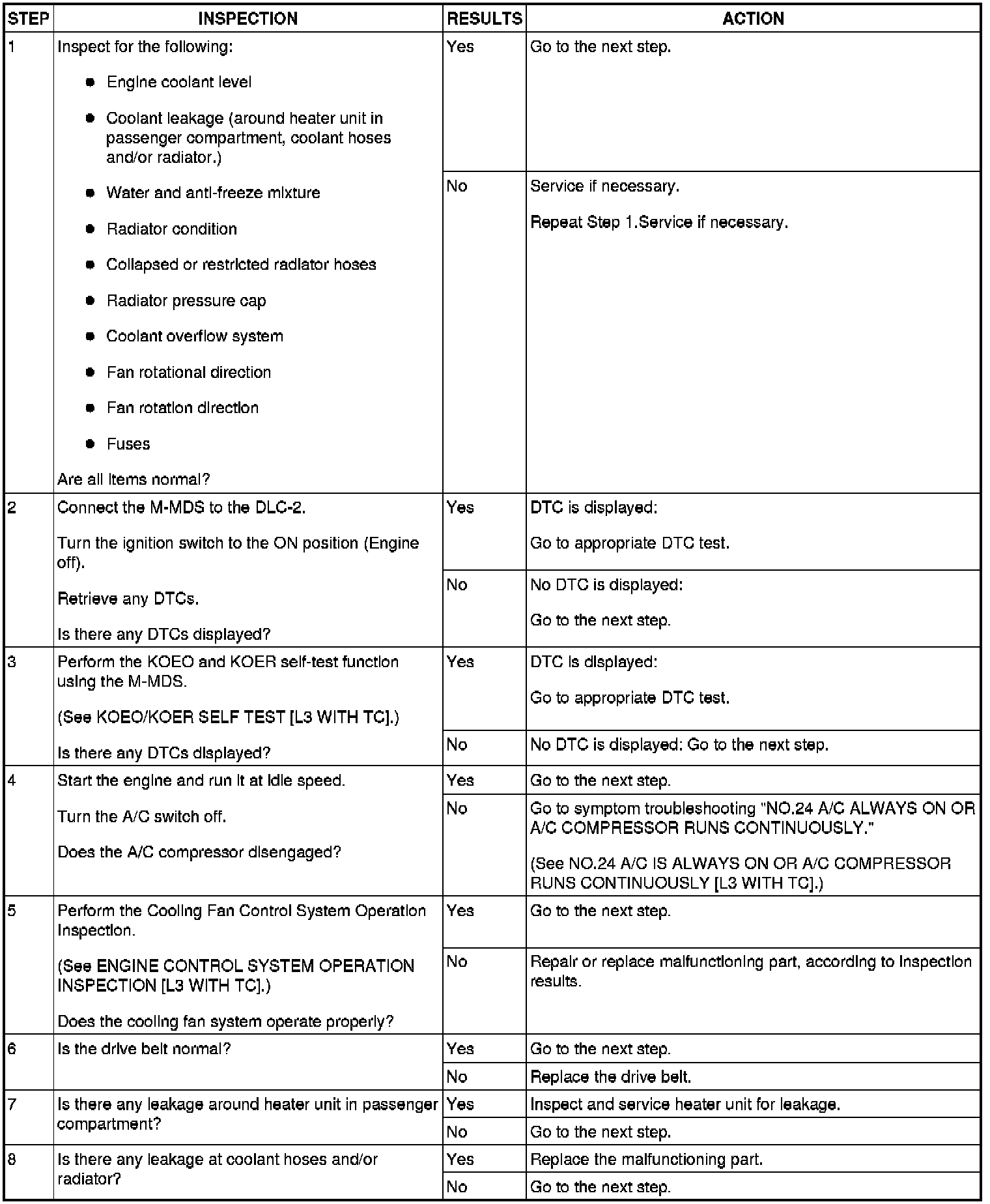

Step 1-Step 8:

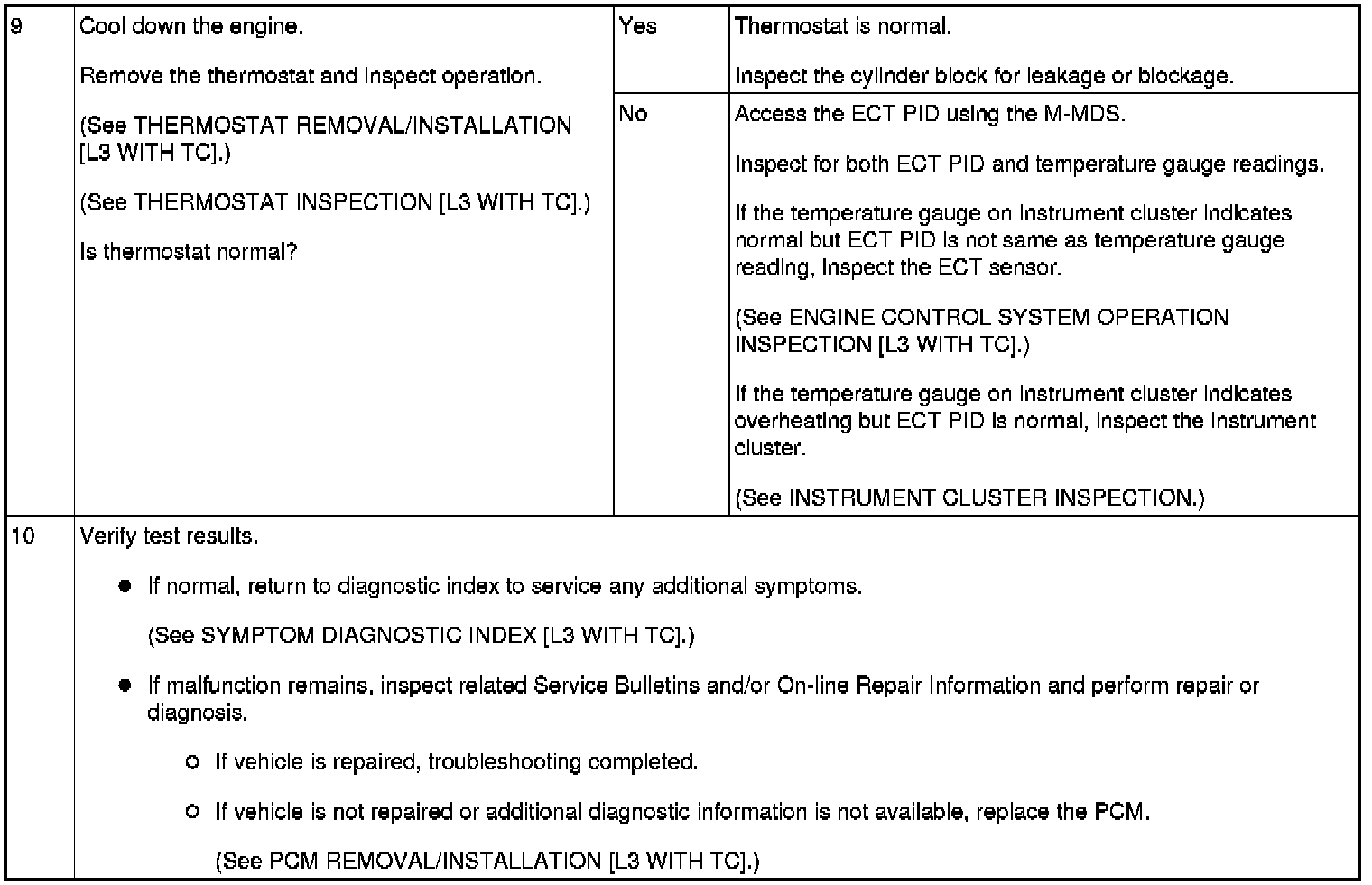

Step 9-Step 10:
