No.12 Lack/Loss Of Power-Acceleration/Cruise




NO.12 LACK/LOSS OF POWER-ACCELERATION/CRUISE [L3 WITH TC]

Description:

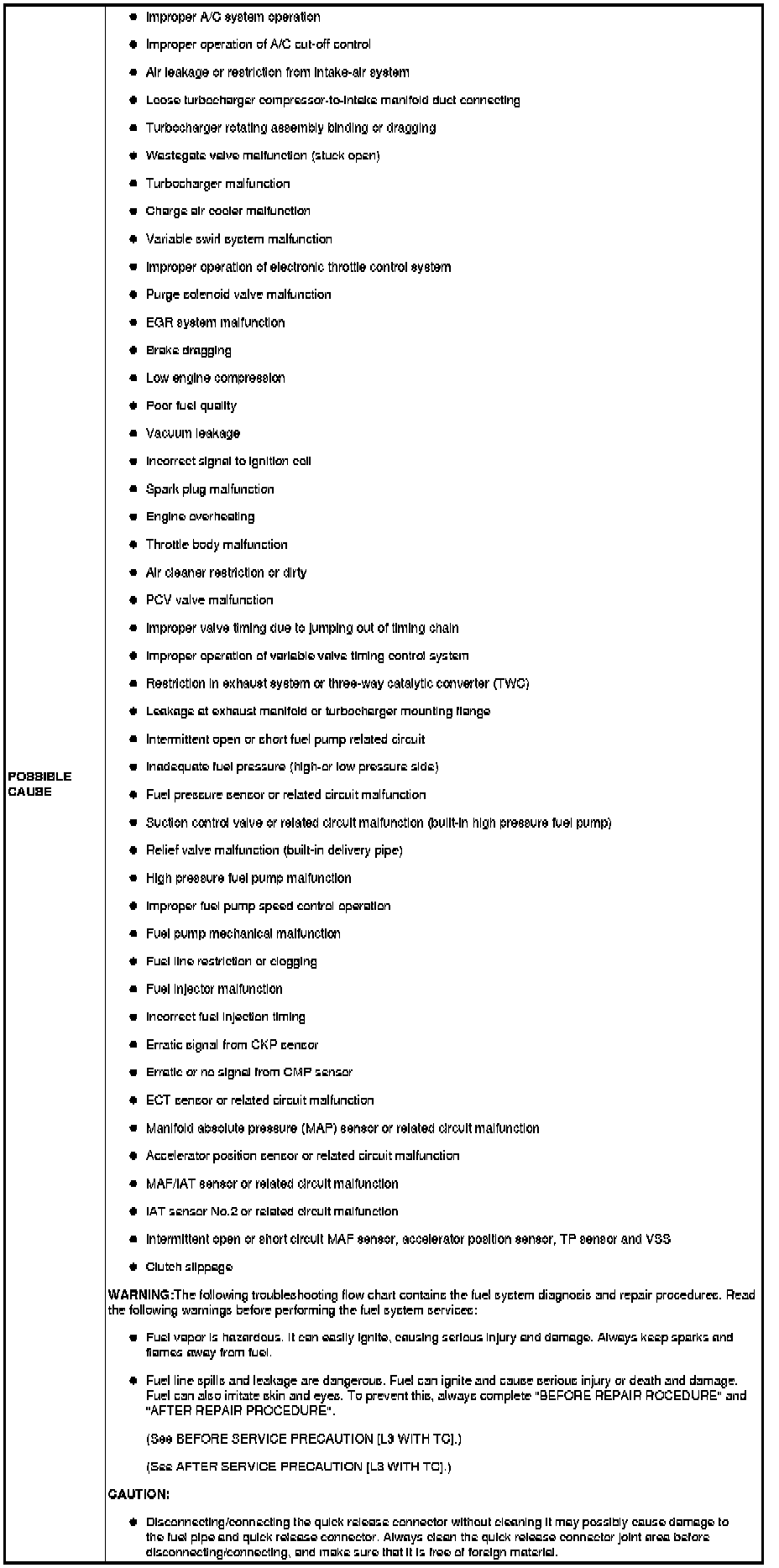

Possible Cause:






Diagnostic procedure

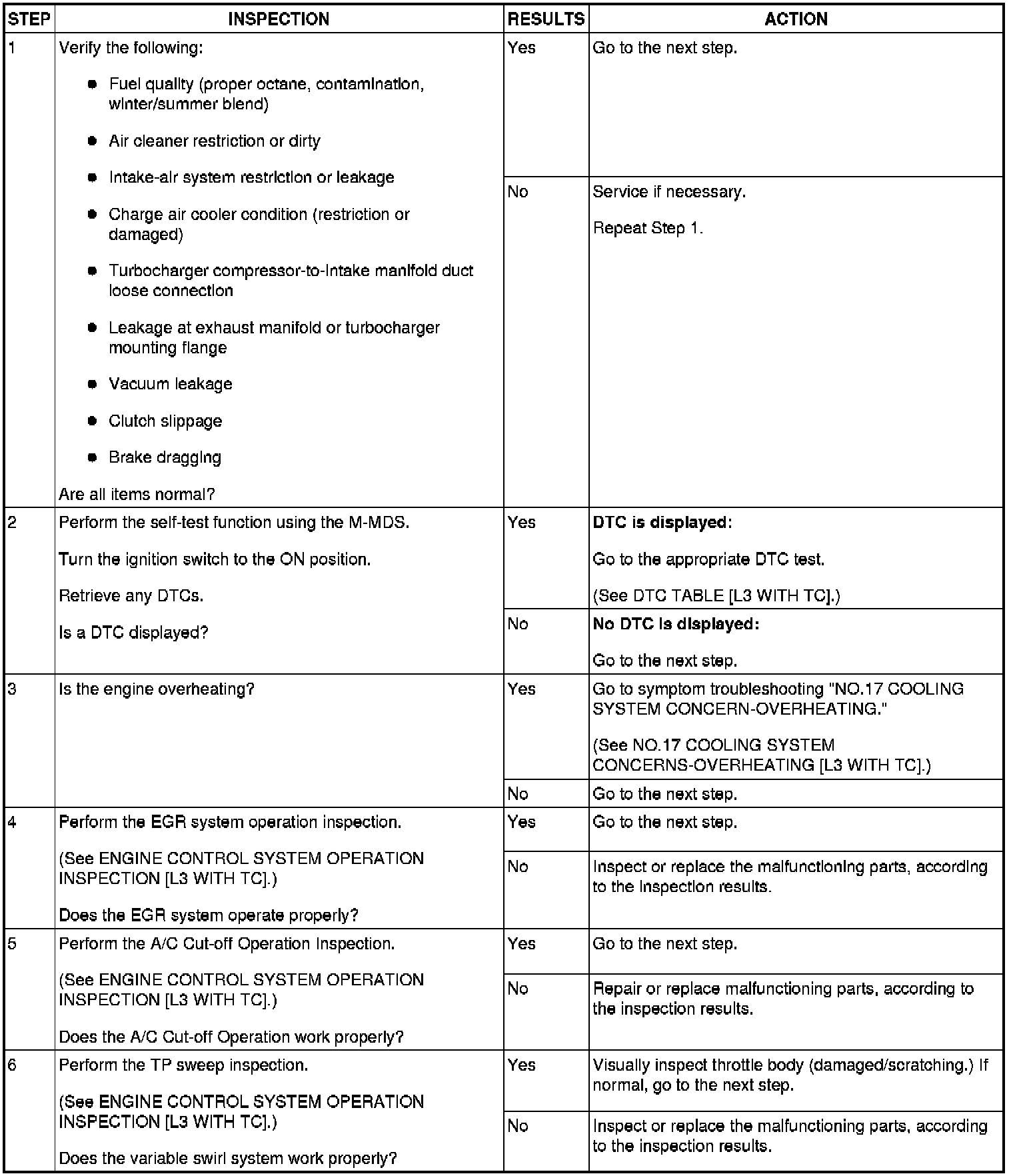

Step 1-Step 6:

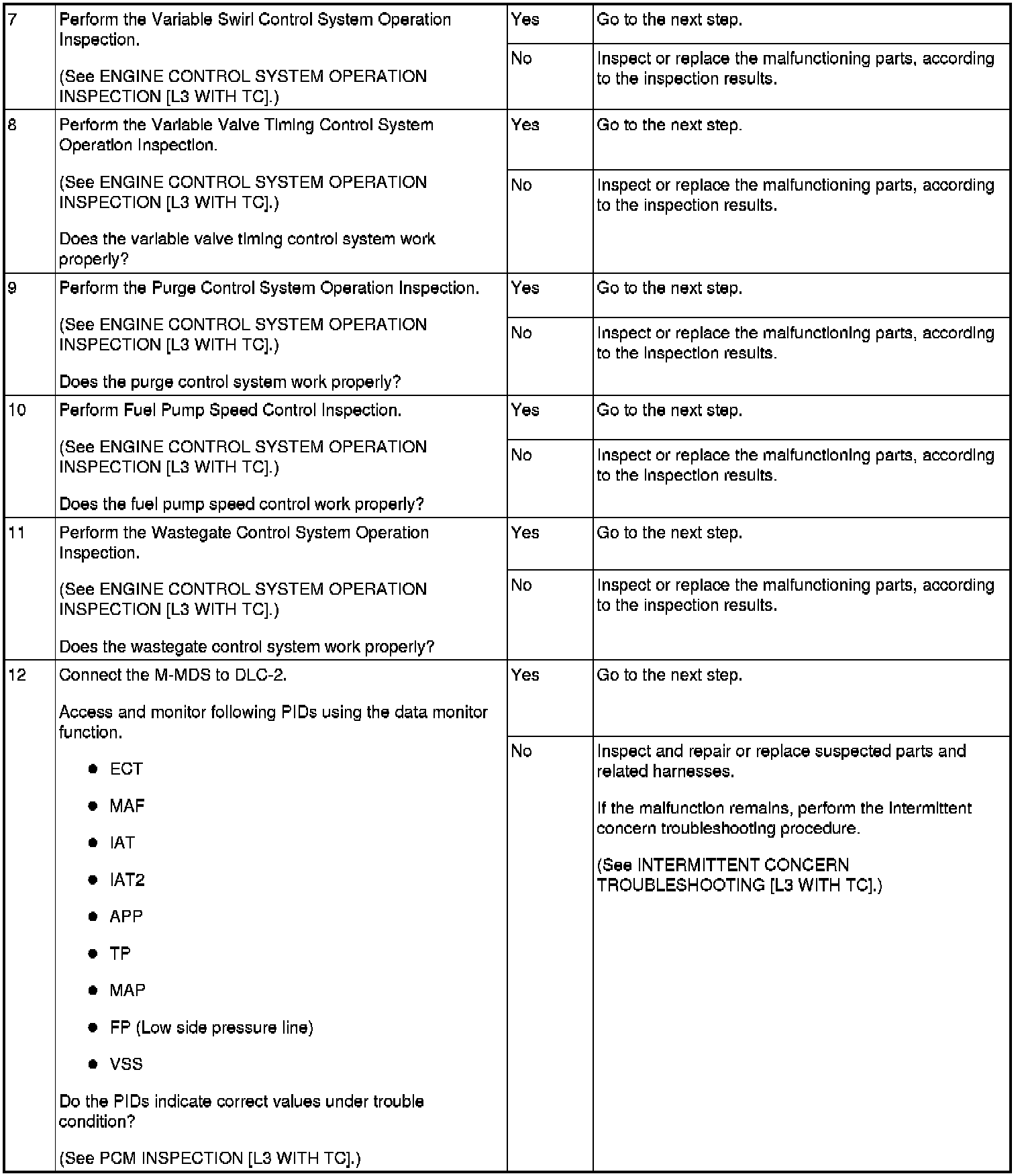

Step 7-Step 12:

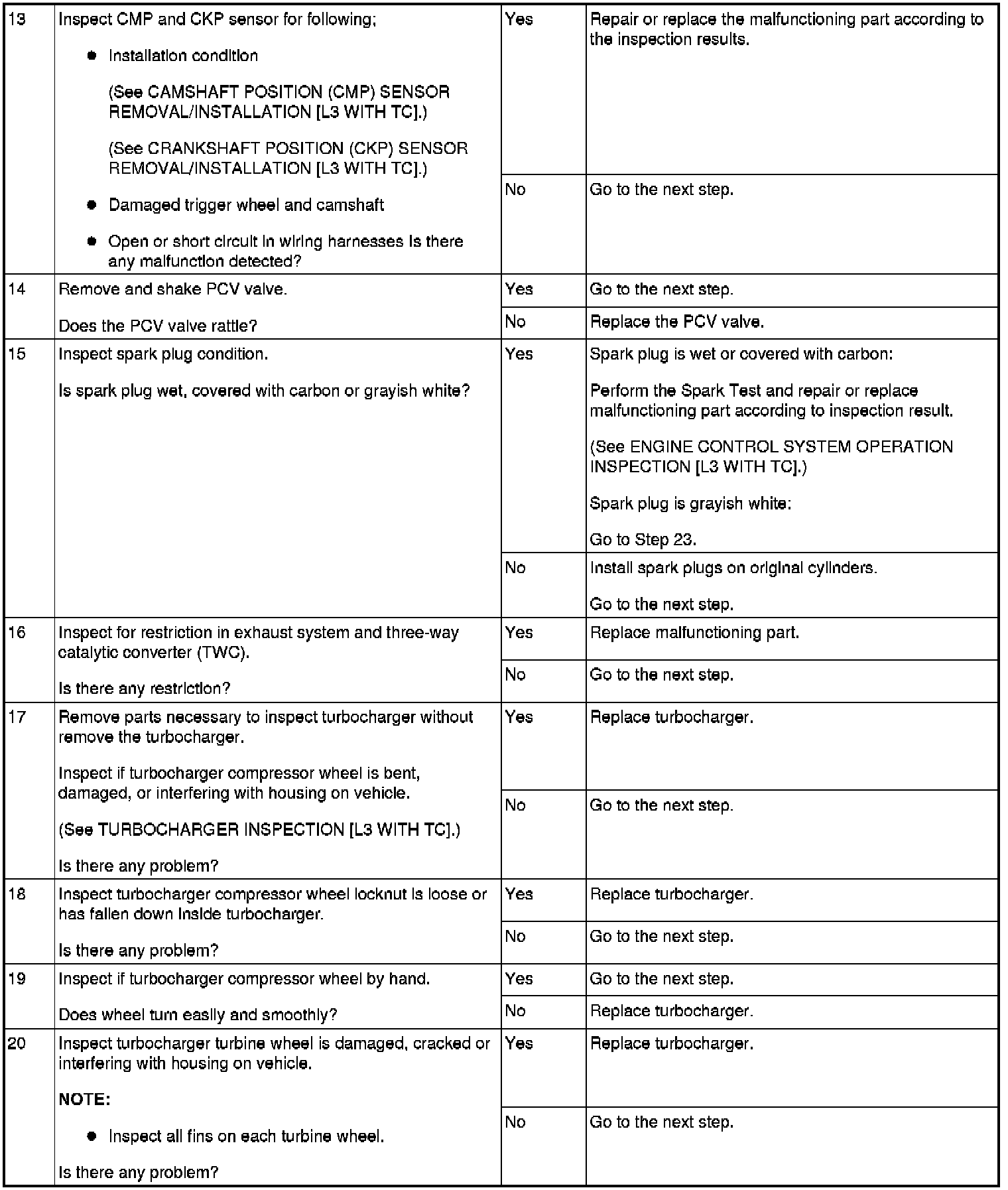

Step 13-Step 20:

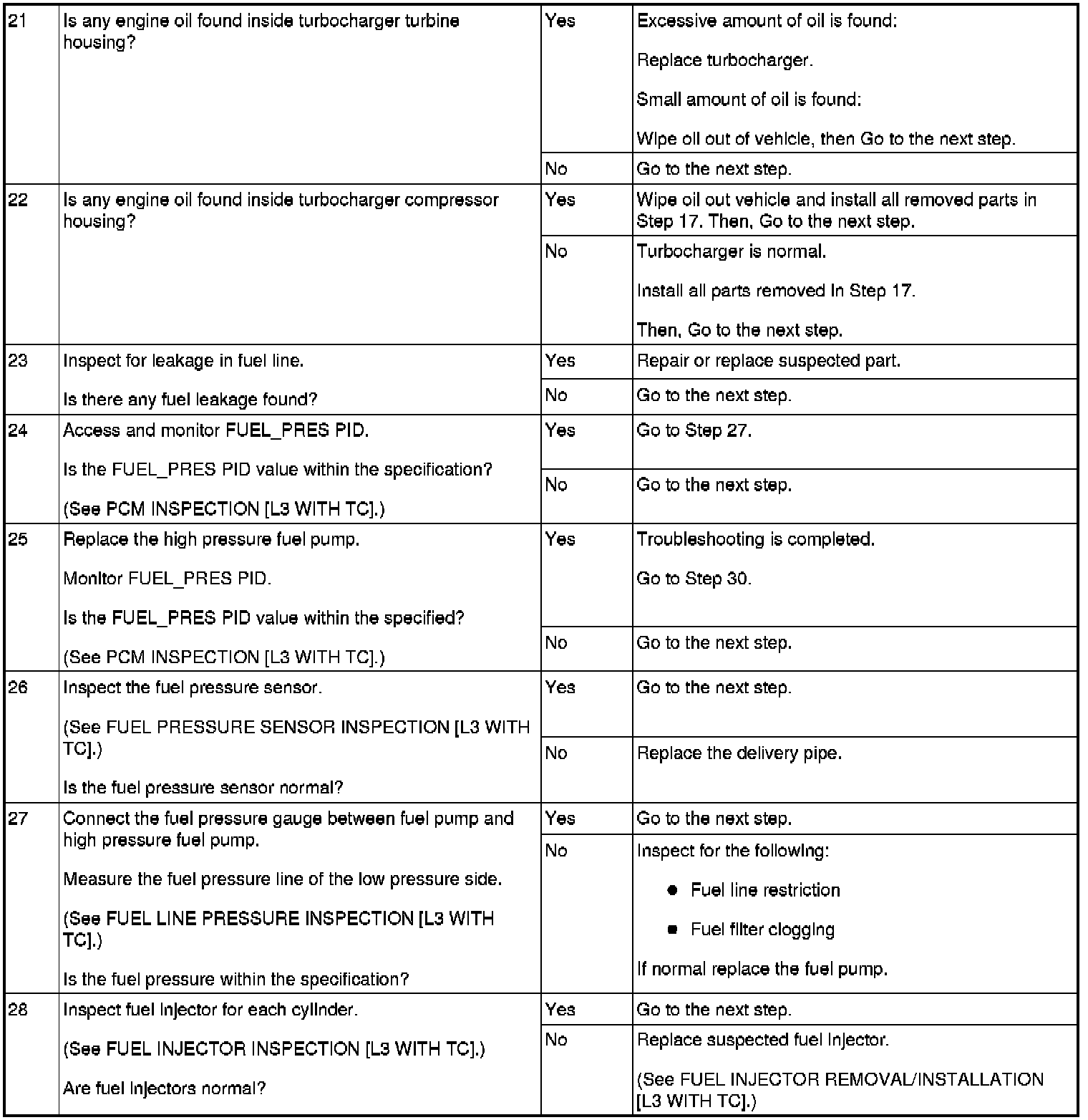

Step 21-Step 28:

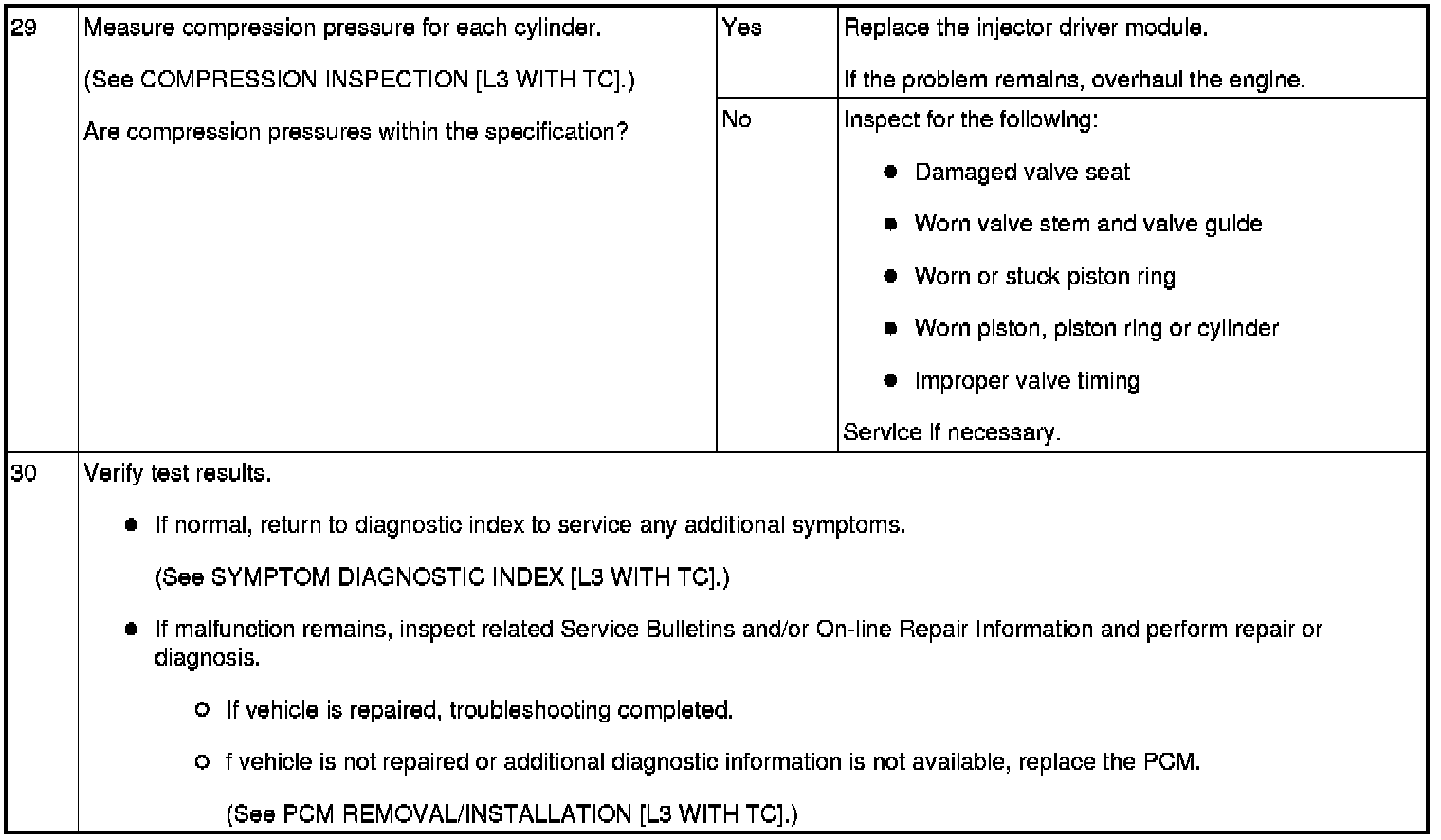

Step 29-Step 30:
