Camshaft Sprocket, Variable Valve Timing Actuator Disassembly Note

Camshaft Sprocket, Variable Valve Timing Actuator Disassembly Note

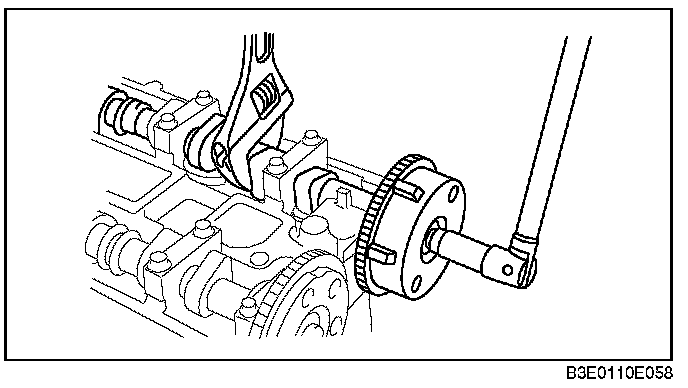

1. Before removing the camshaft, hold the camshaft using a wrench on the cast hexagon and loosen the camshaft sprocket installation bolt.
