Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Engine L3 With TC >> Engine Technical Data

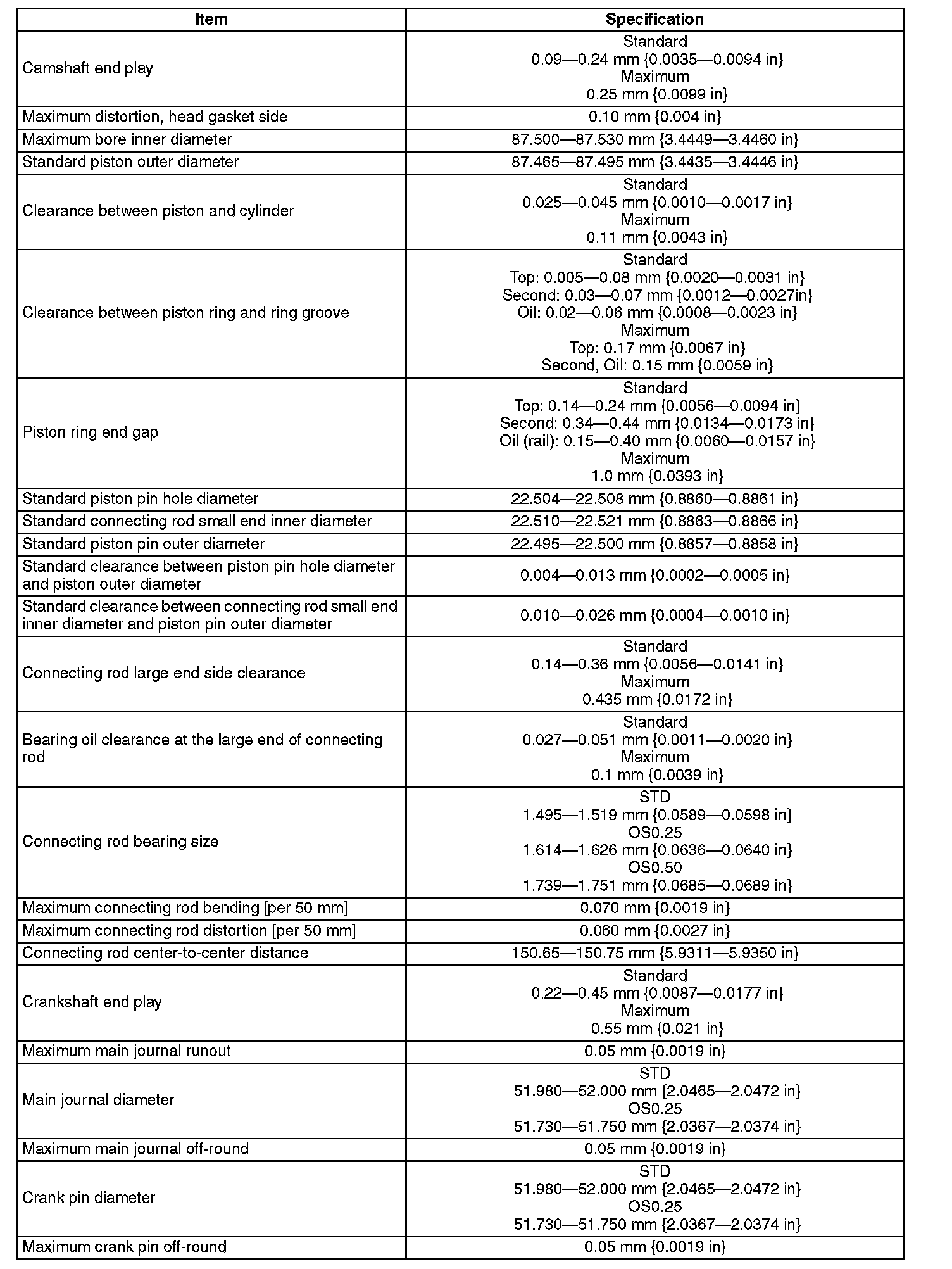

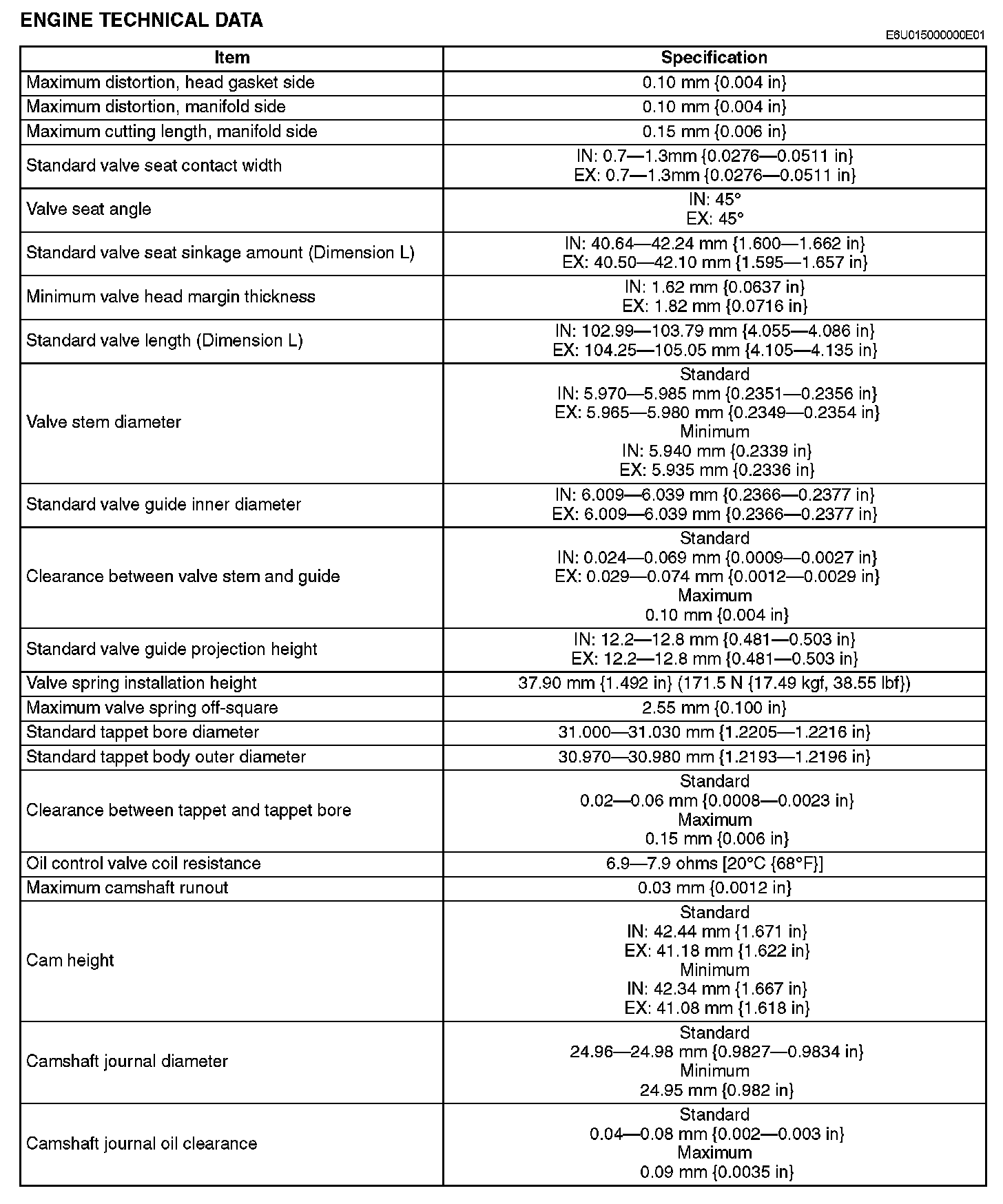

Engine Technical Data

Engine Technical Data
