Diagram 0140-3a

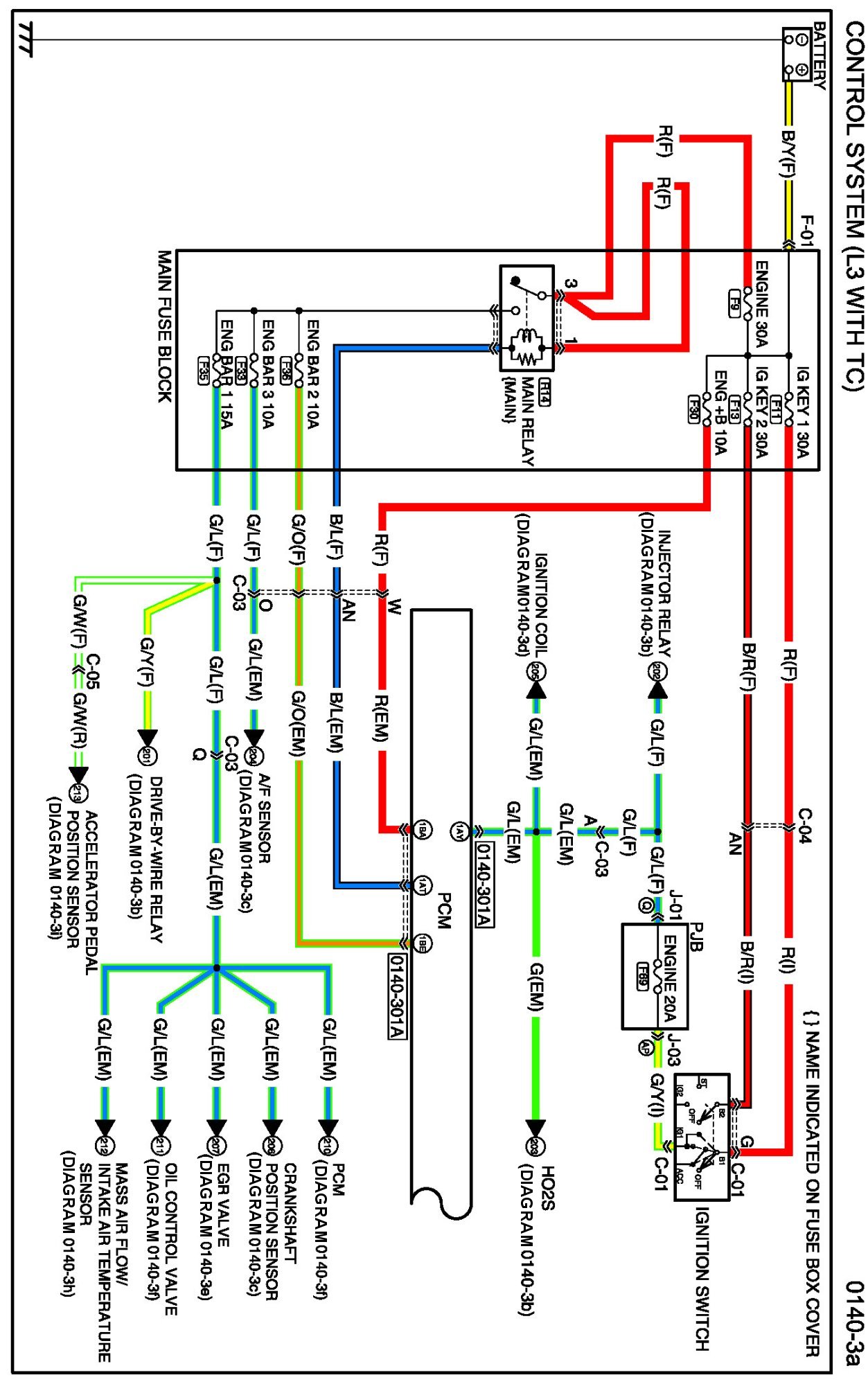

Diagram 0140-3a:

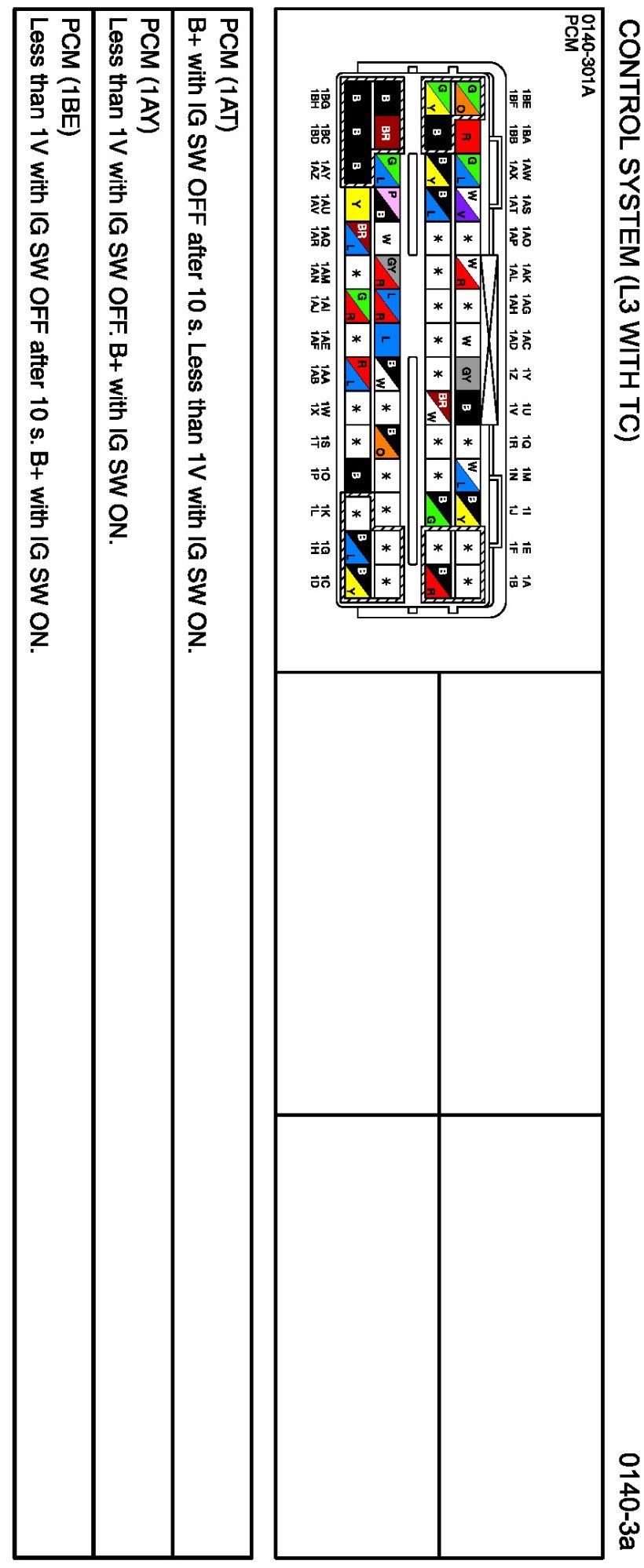

Connectors 0140-3a:
Routing View 0140-3a:
Next Diagram Diagram 0140-3b
