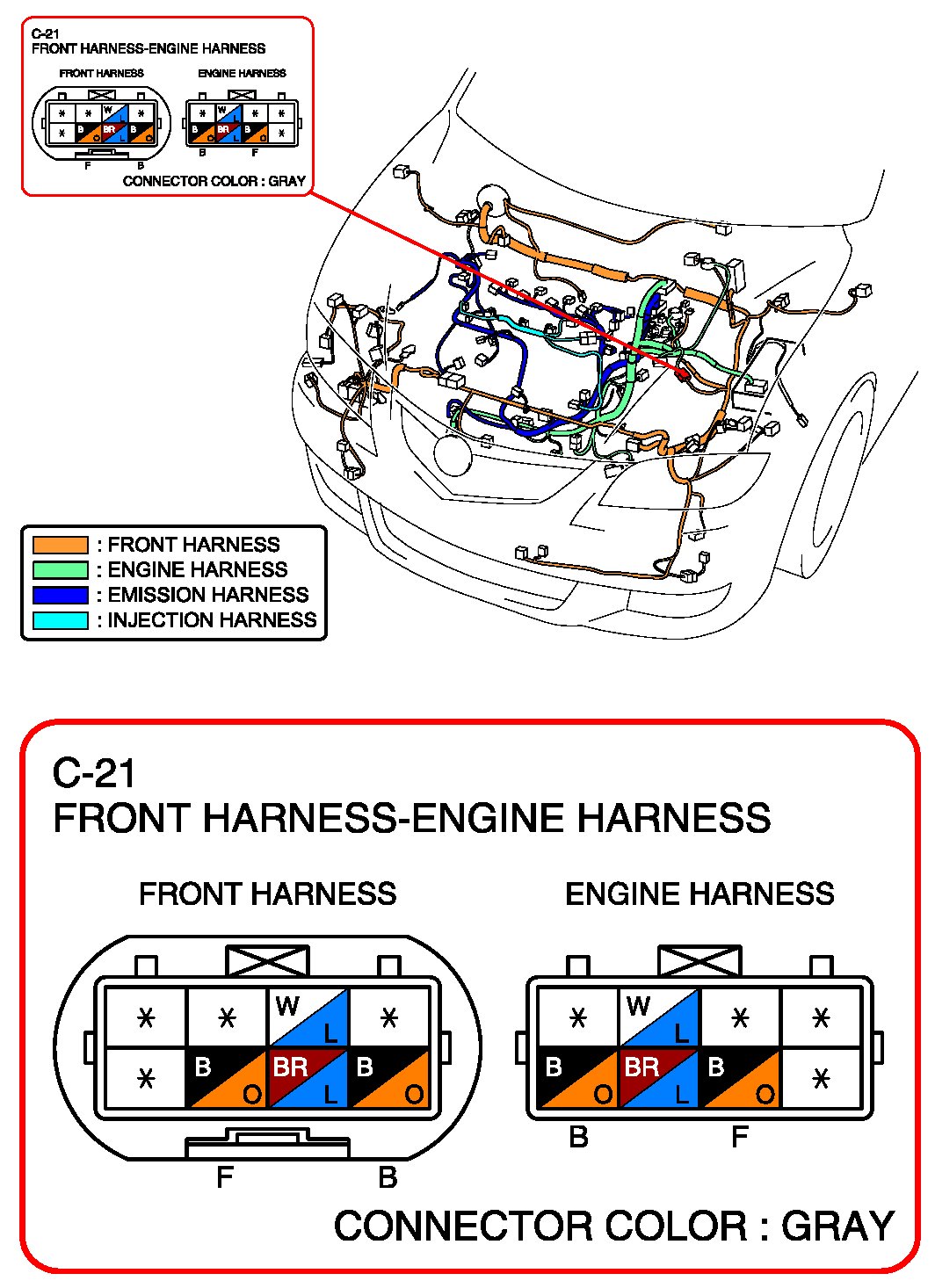

C-21 (Front Harness-Engine Harness)
C-21 (Front Harness-Engine Harness)
C-21 (Front Harness-Engine Harness):
