Passenger-Side Curtain Air Bag Module

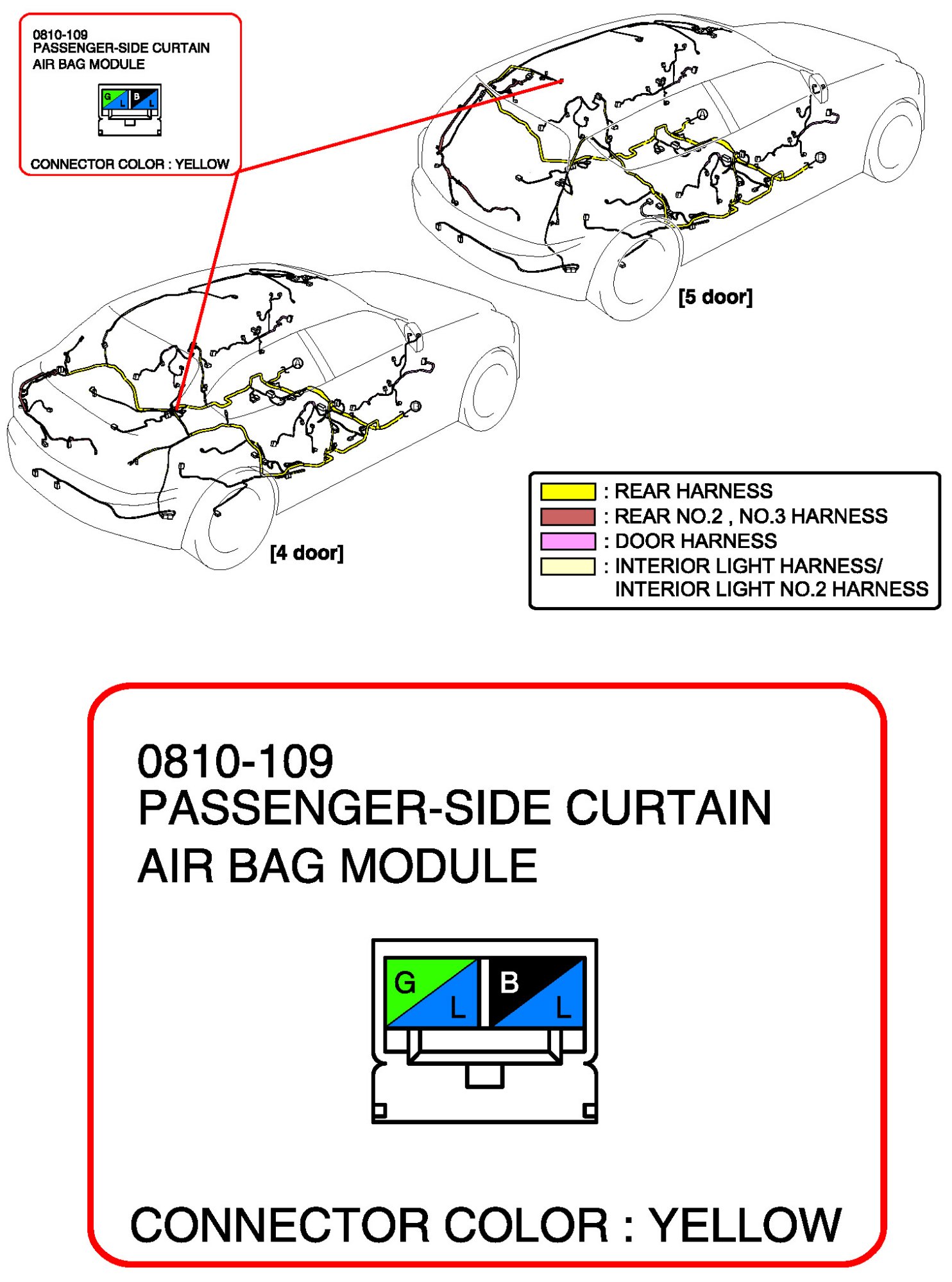

Passenger-Side Curtain Air Bag Module:



Driver-Side Curtain Air Bag Module:



Passenger-Side Air Bag Module:



Passenger-Side Air Bag Module:



Driver-Side Air Bag Module:
