Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Passenger-Side Air Bag Module

Passenger-Side Air Bag Module

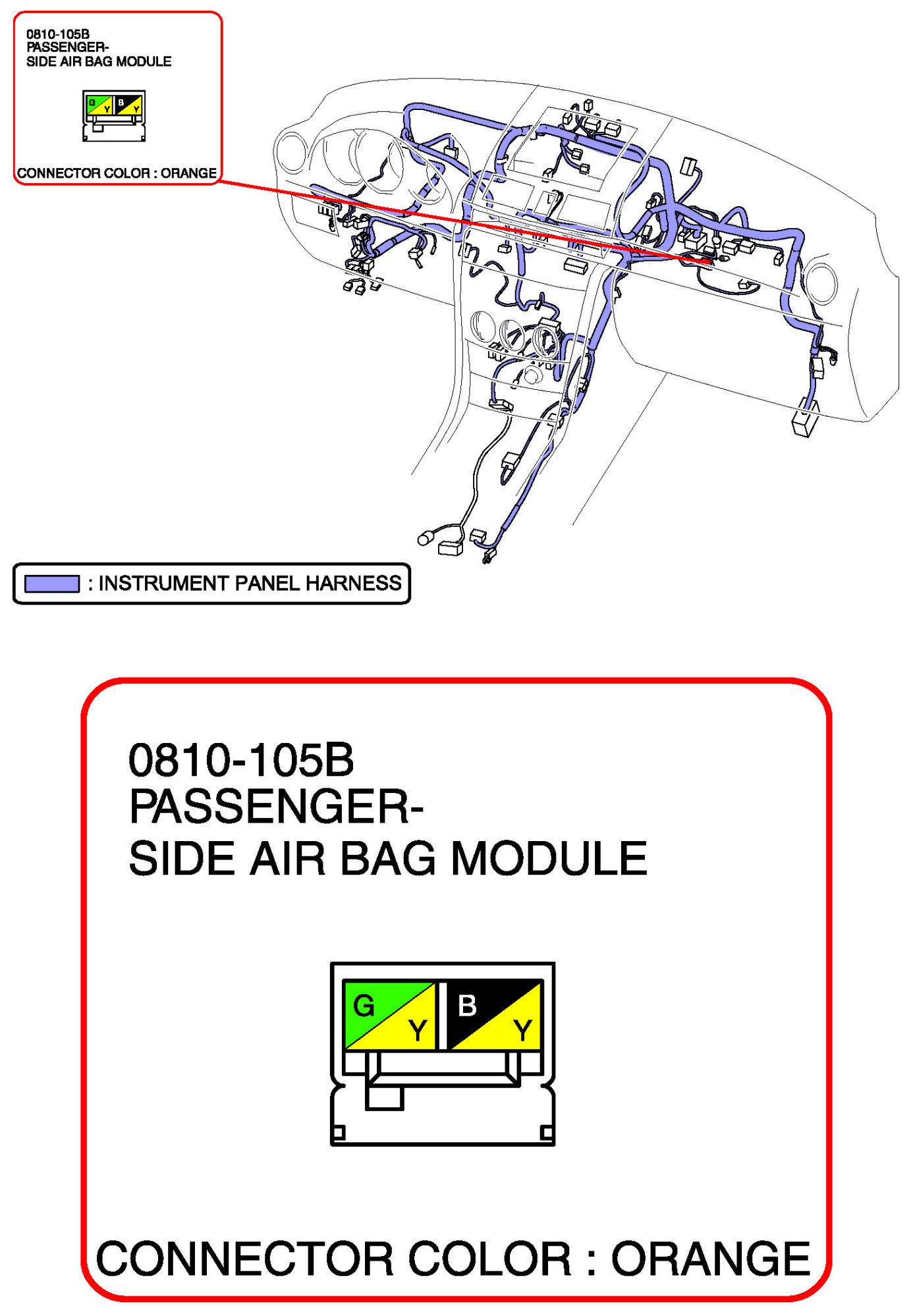

Passenger-Side Air Bag Module:

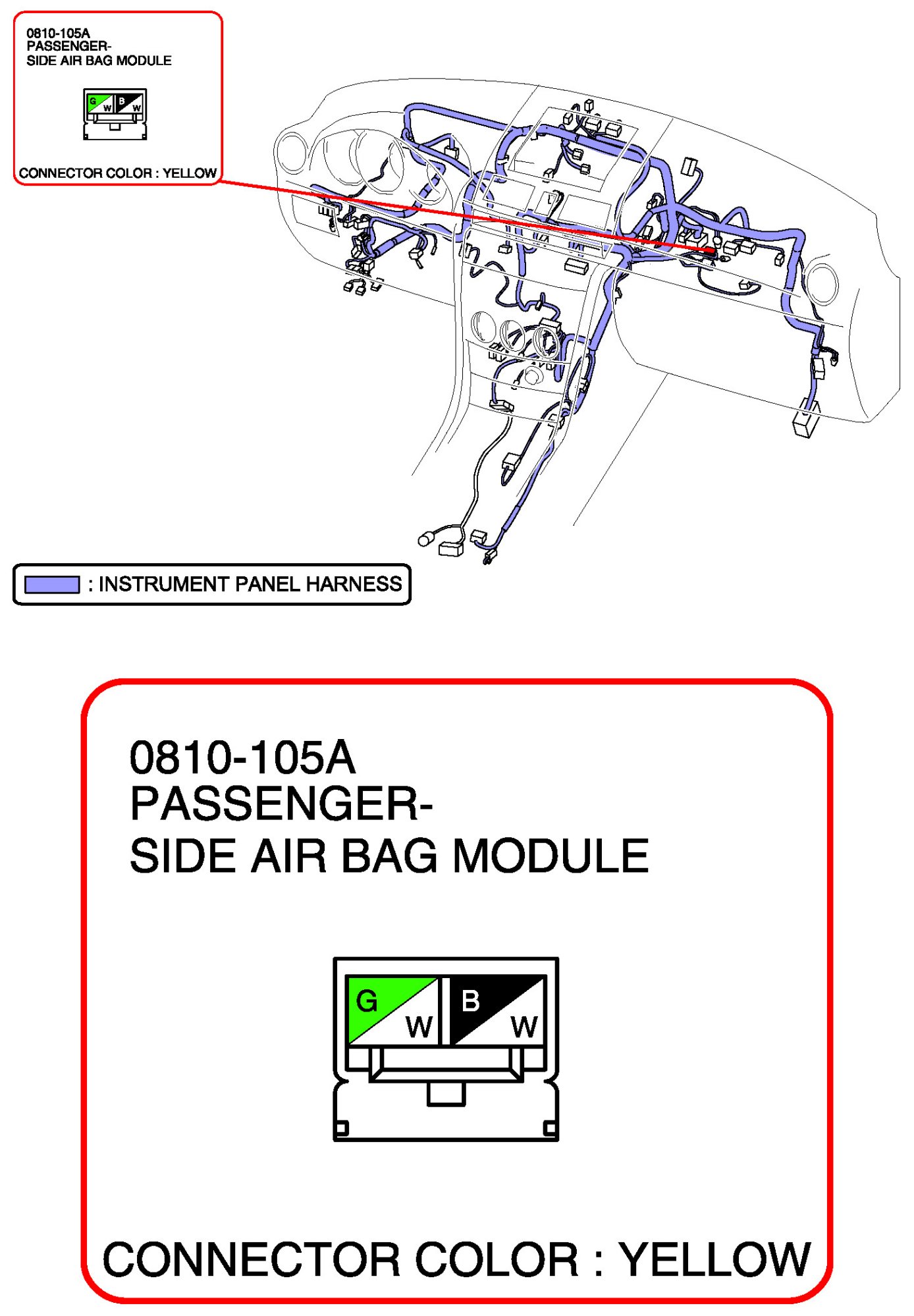

Passenger-Side Air Bag Module:
