Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> LCD Unit

LCD Unit

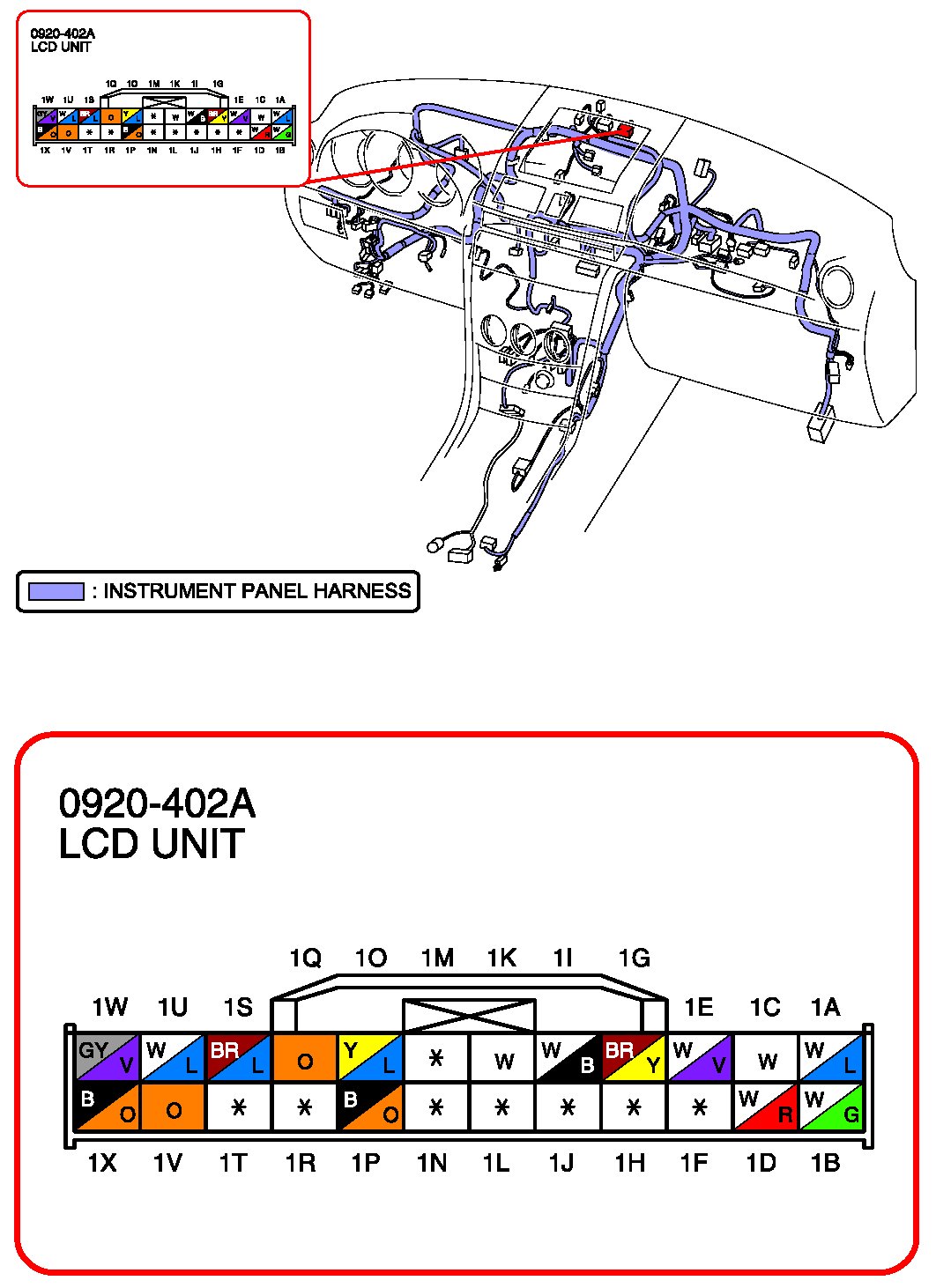

LCD Unit:

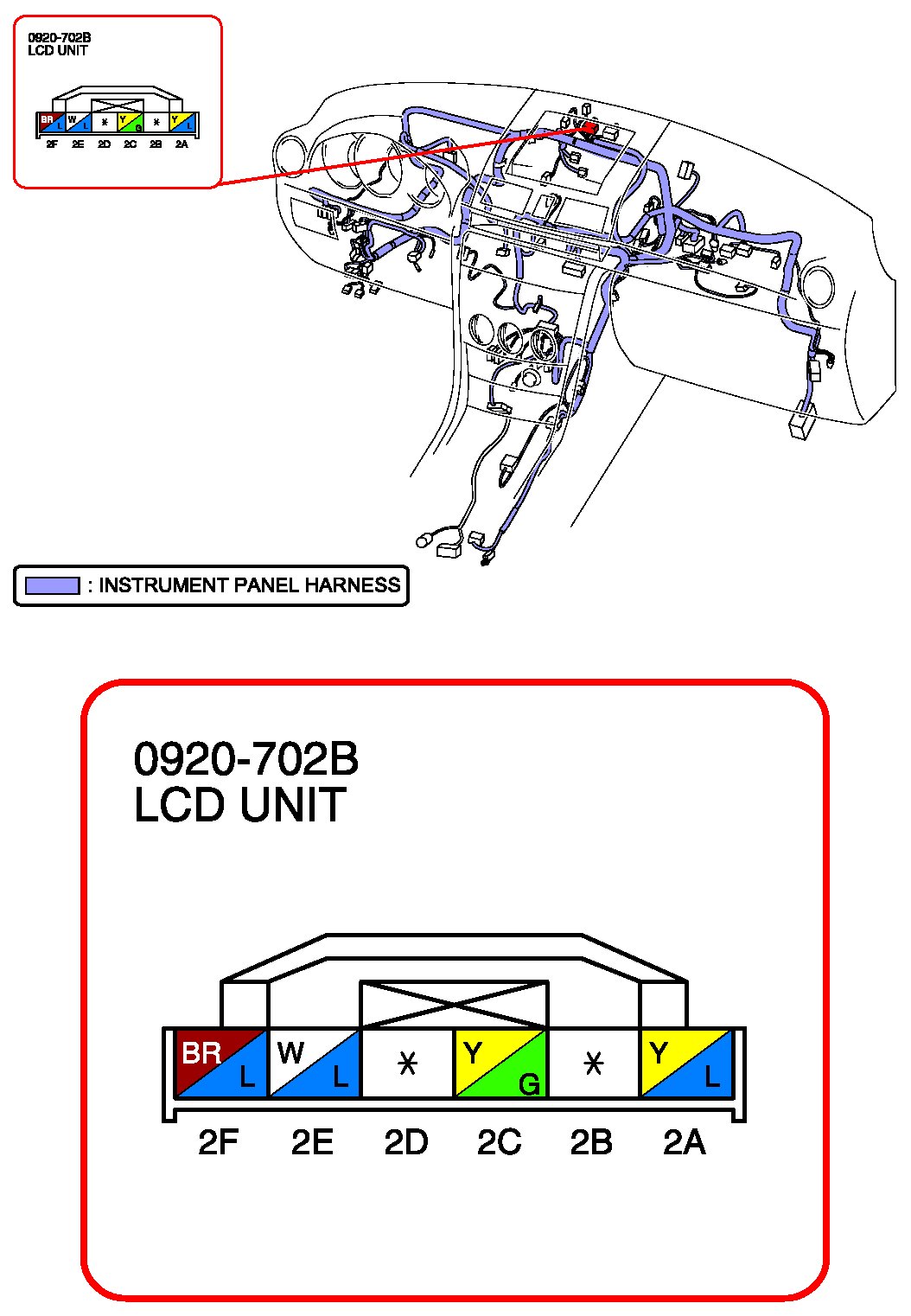

LCD Unit:

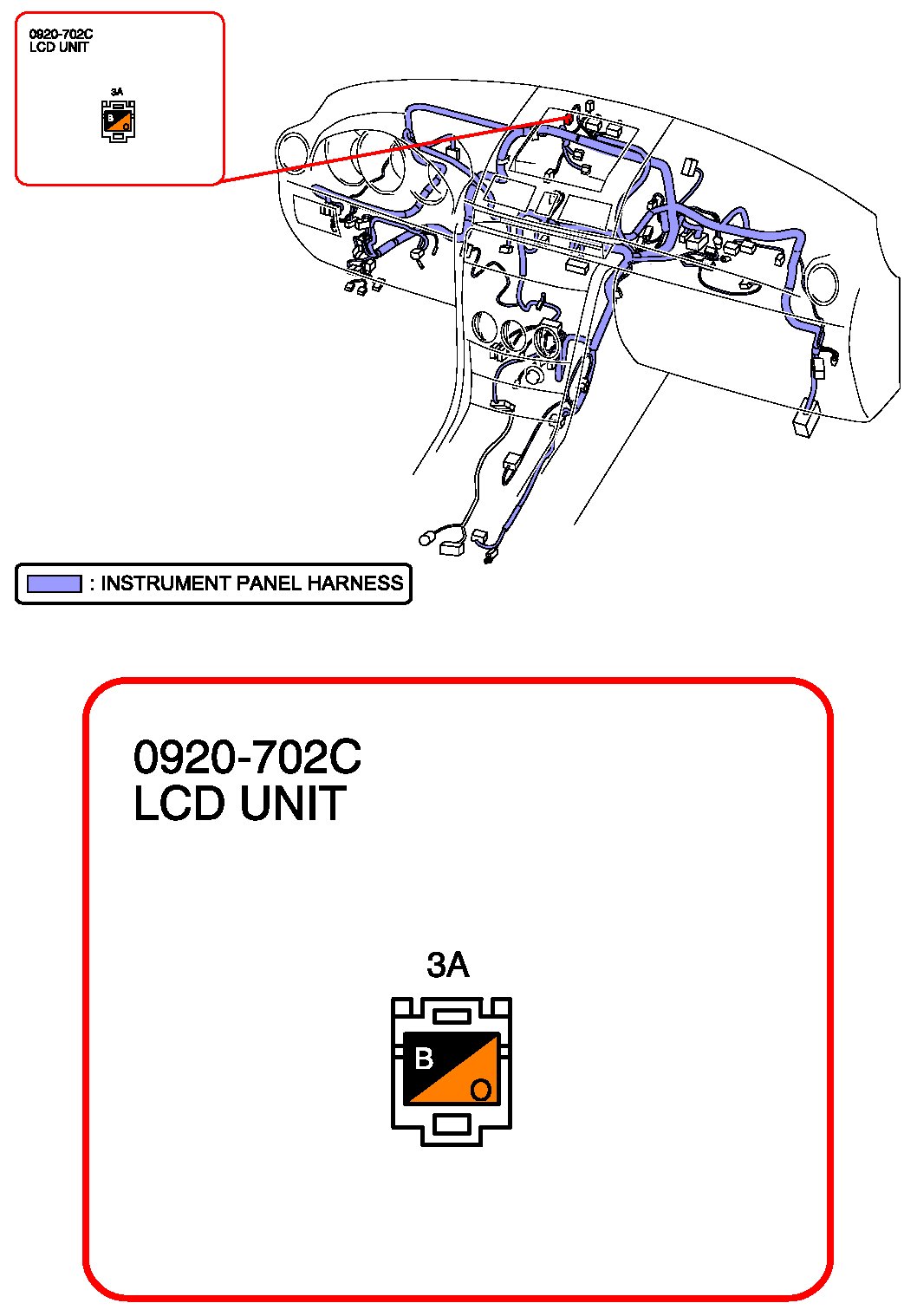

LCD Unit:

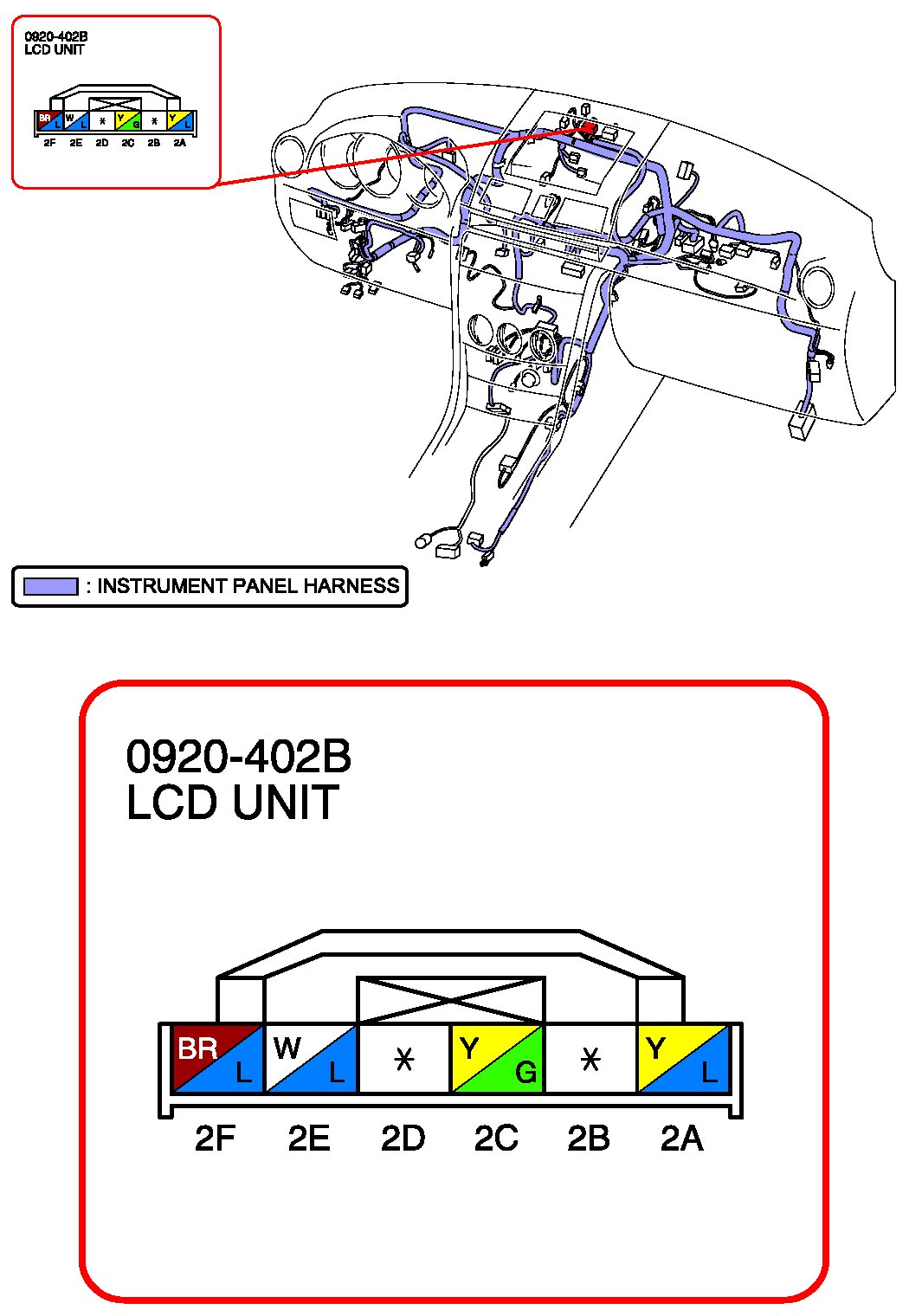

LCD Unit:



LCD Unit:



LCD Unit:
