Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Engine Harness-Transaxle Short Cord (Primary)

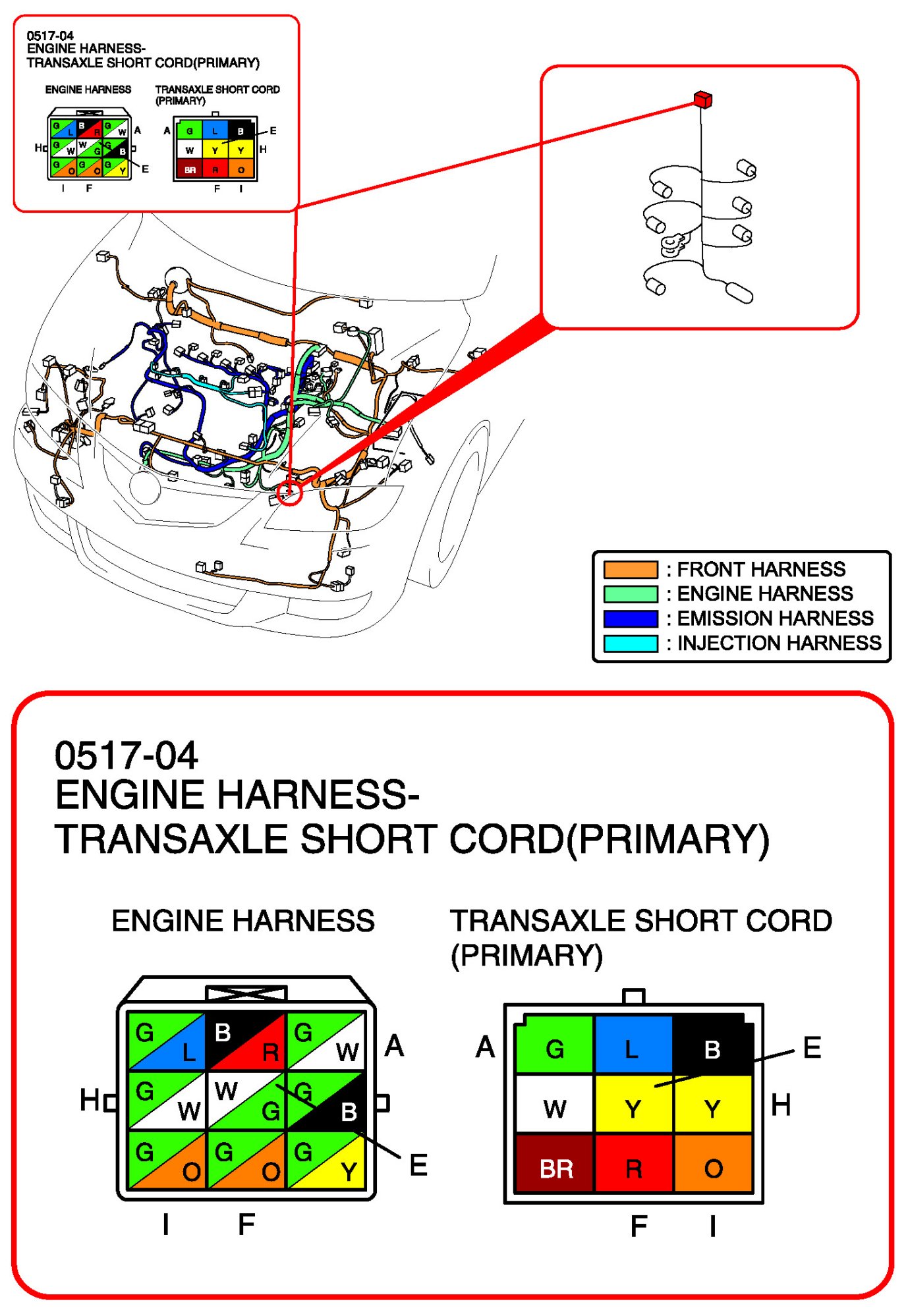

Engine Harness-Transaxle Short Cord (Primary)

Engine Harness-Transaxle Short Cord (Primary):
