Engine Harness-Transaxle Short Cord

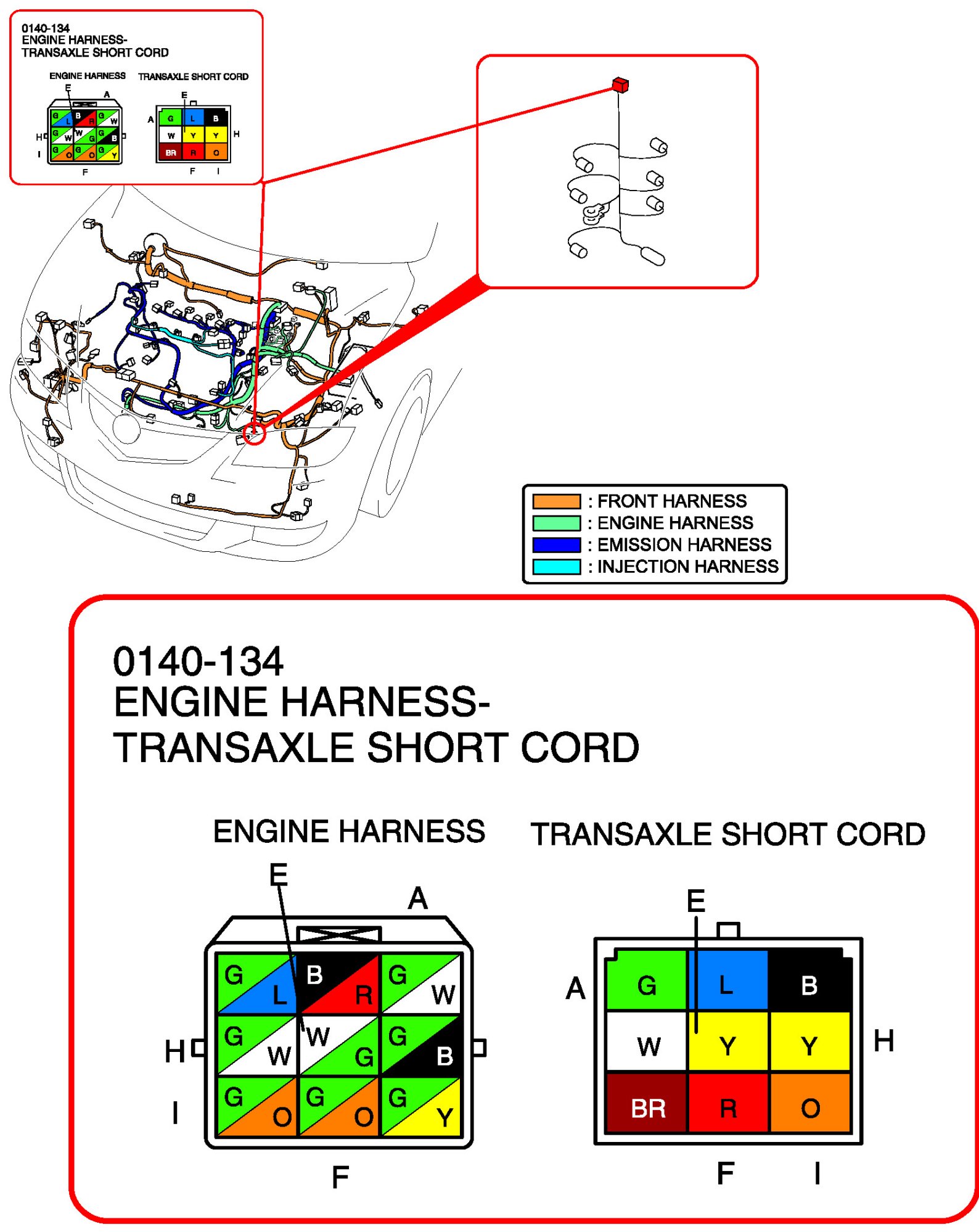

Engine Harness - Transaxle Short Cord:

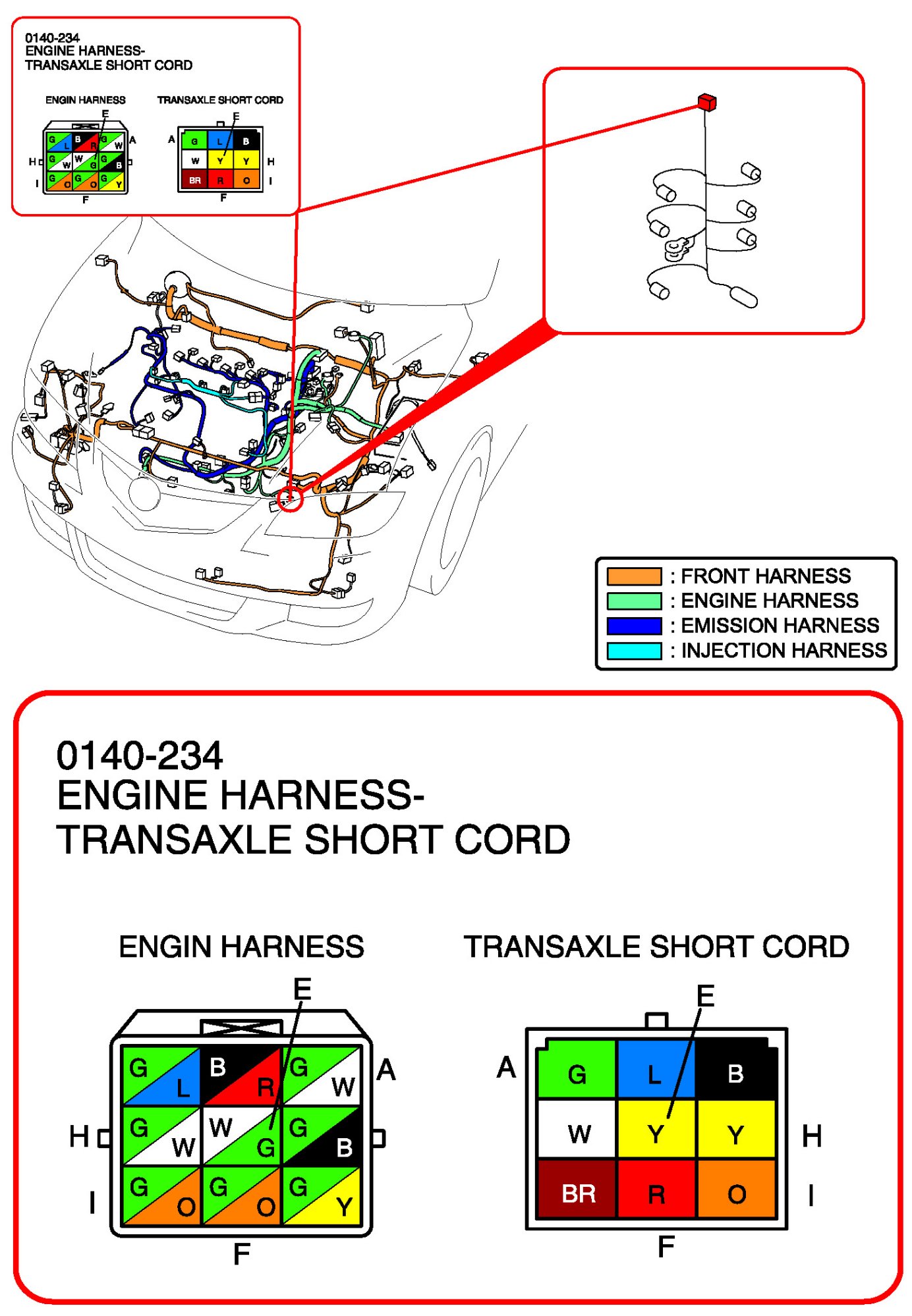

Engine Harness - Trasaxle Short Cord:
