EVAP System Leak Detection Pump

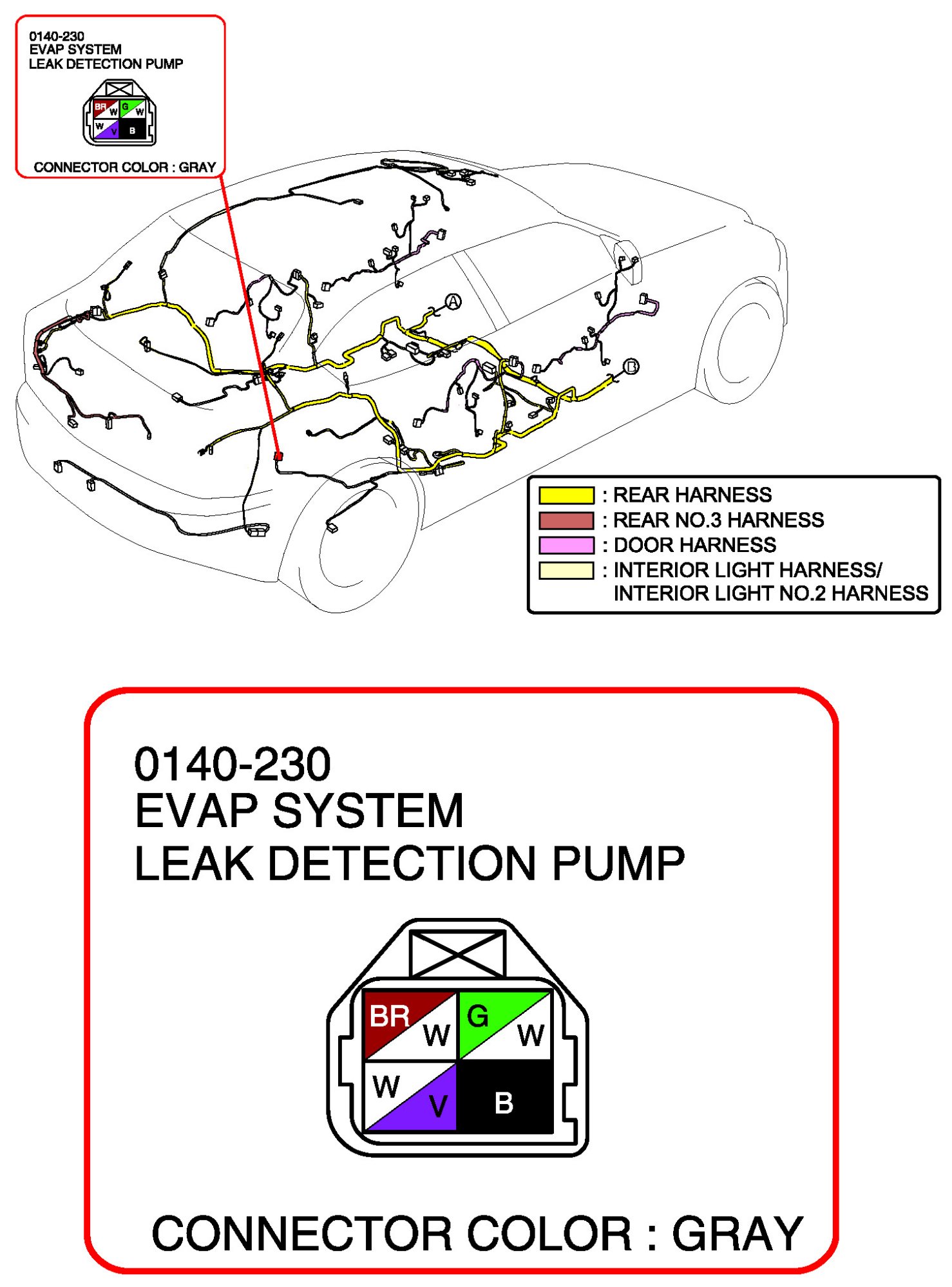

EVAP System Leak Detectio Pump:

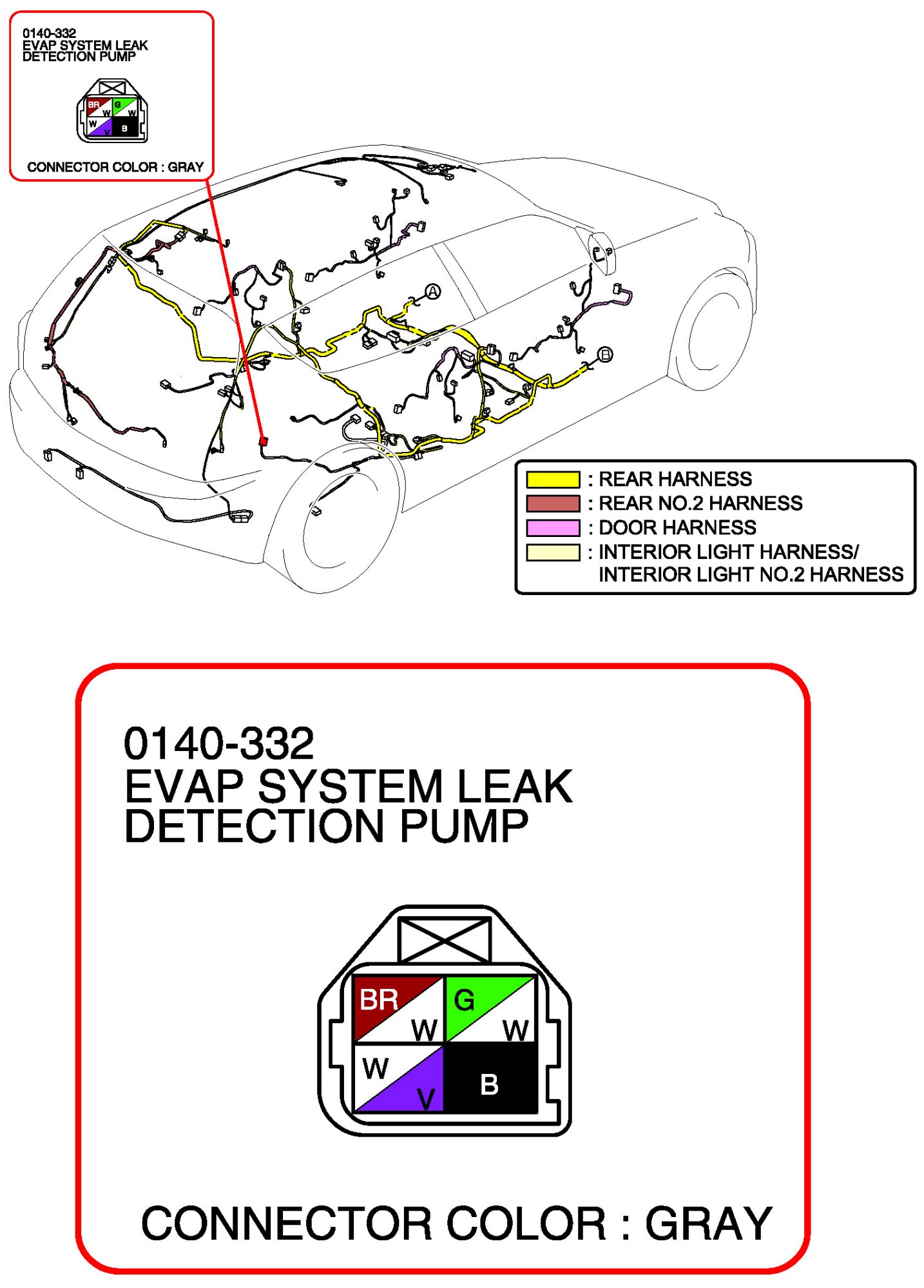

EVAP System Leak Detection Pump:

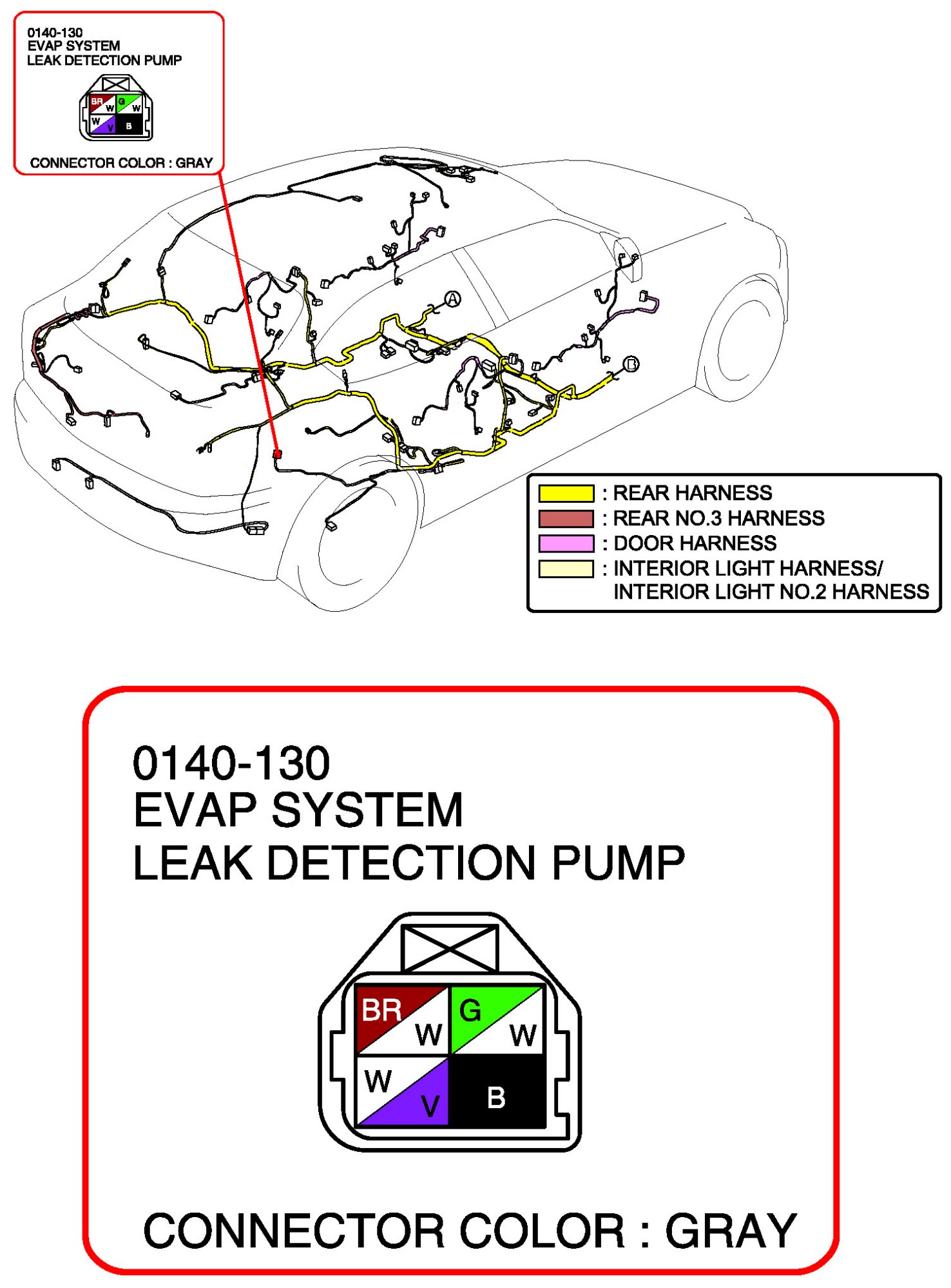

EVAP System Leak Detection Pump:
