Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Horn Switch
Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Horn Switch

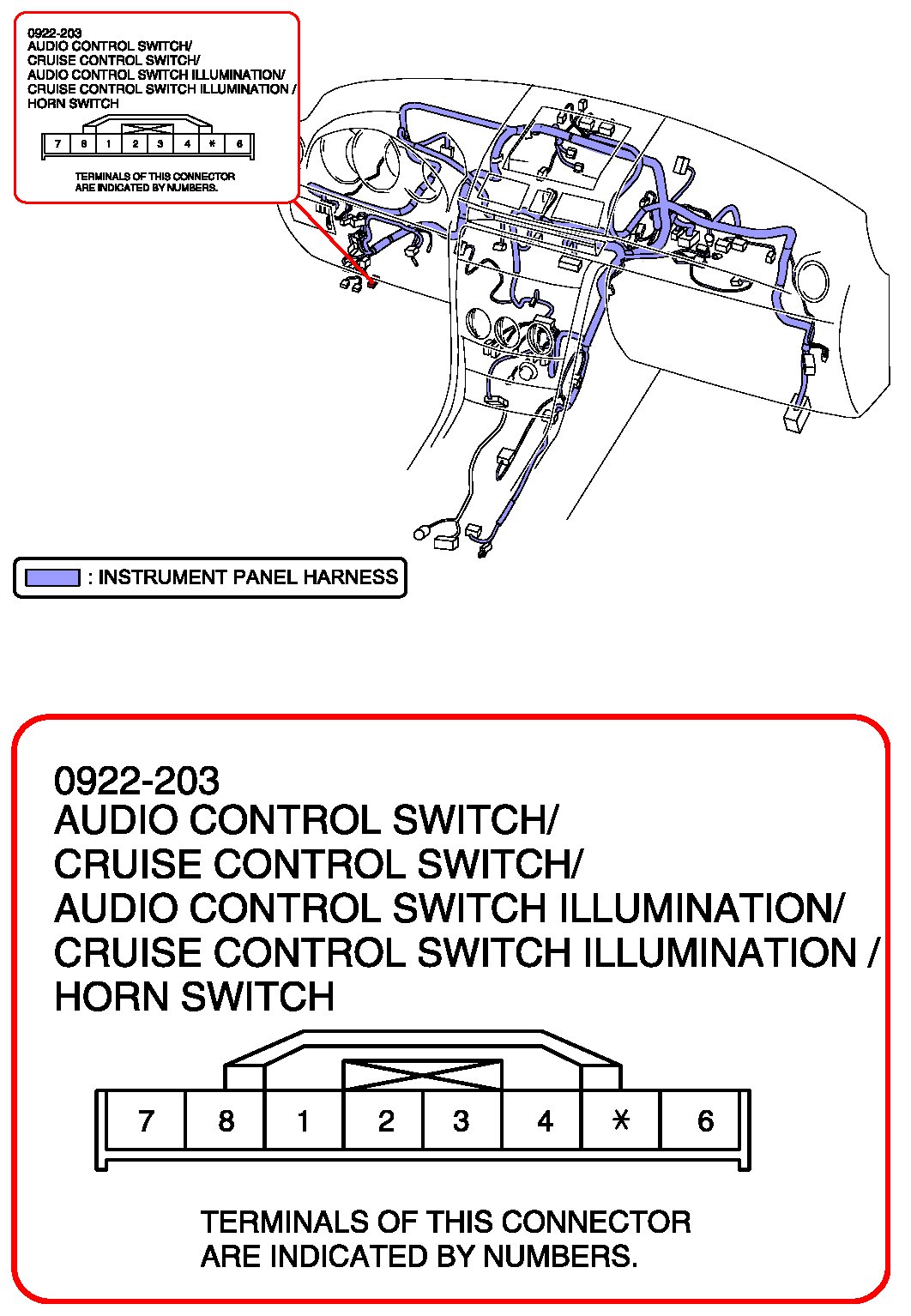

Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Horn Switch:
