Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]

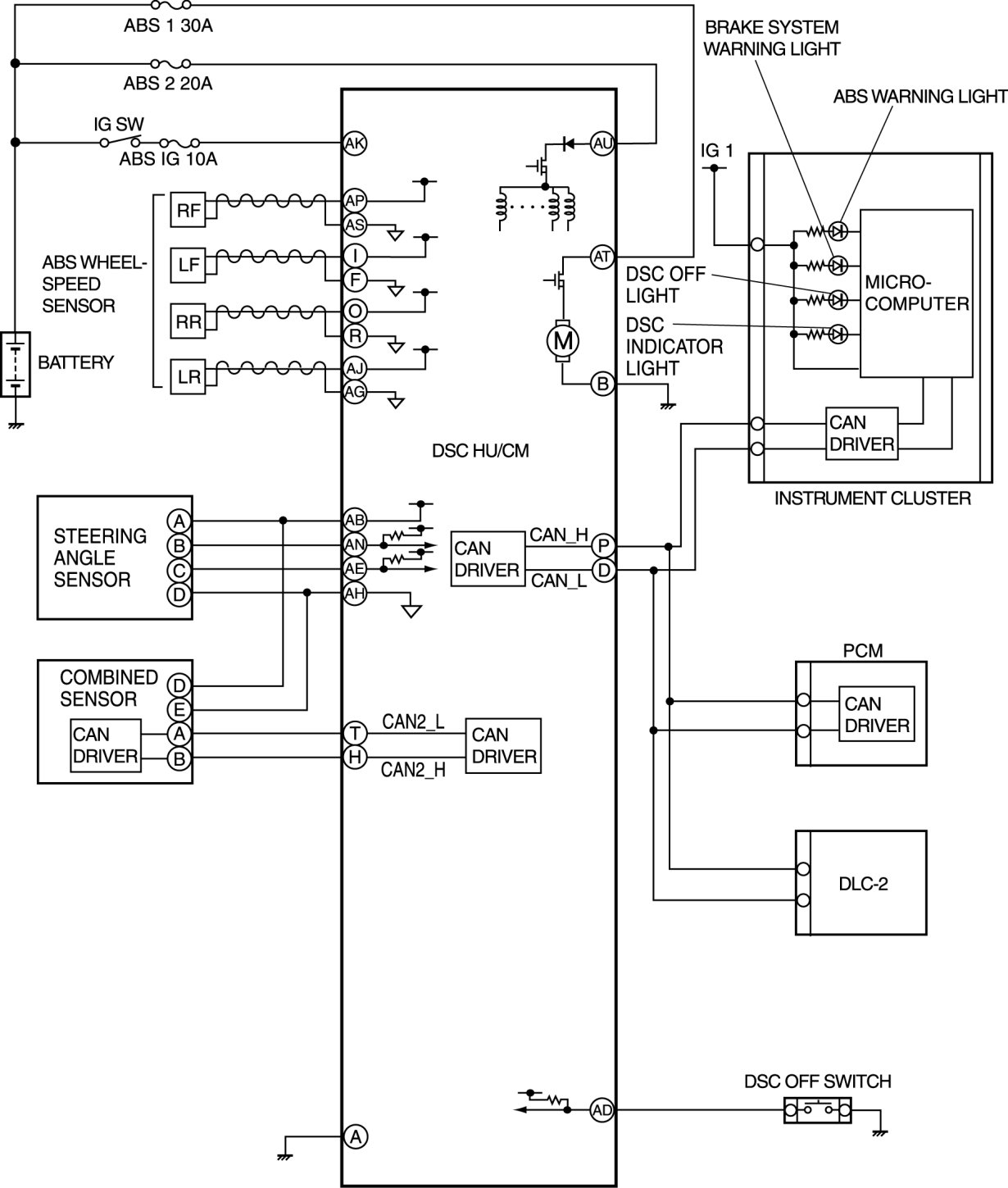

DYNAMIC STABILITY CONTROL SYSTEM WIRING DIAGRAM [DYNAMIC STABILITY CONTROL (DSC)]
