Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> ABS System Wiring Diagram [ABS]

ABS System Wiring Diagram [ABS]

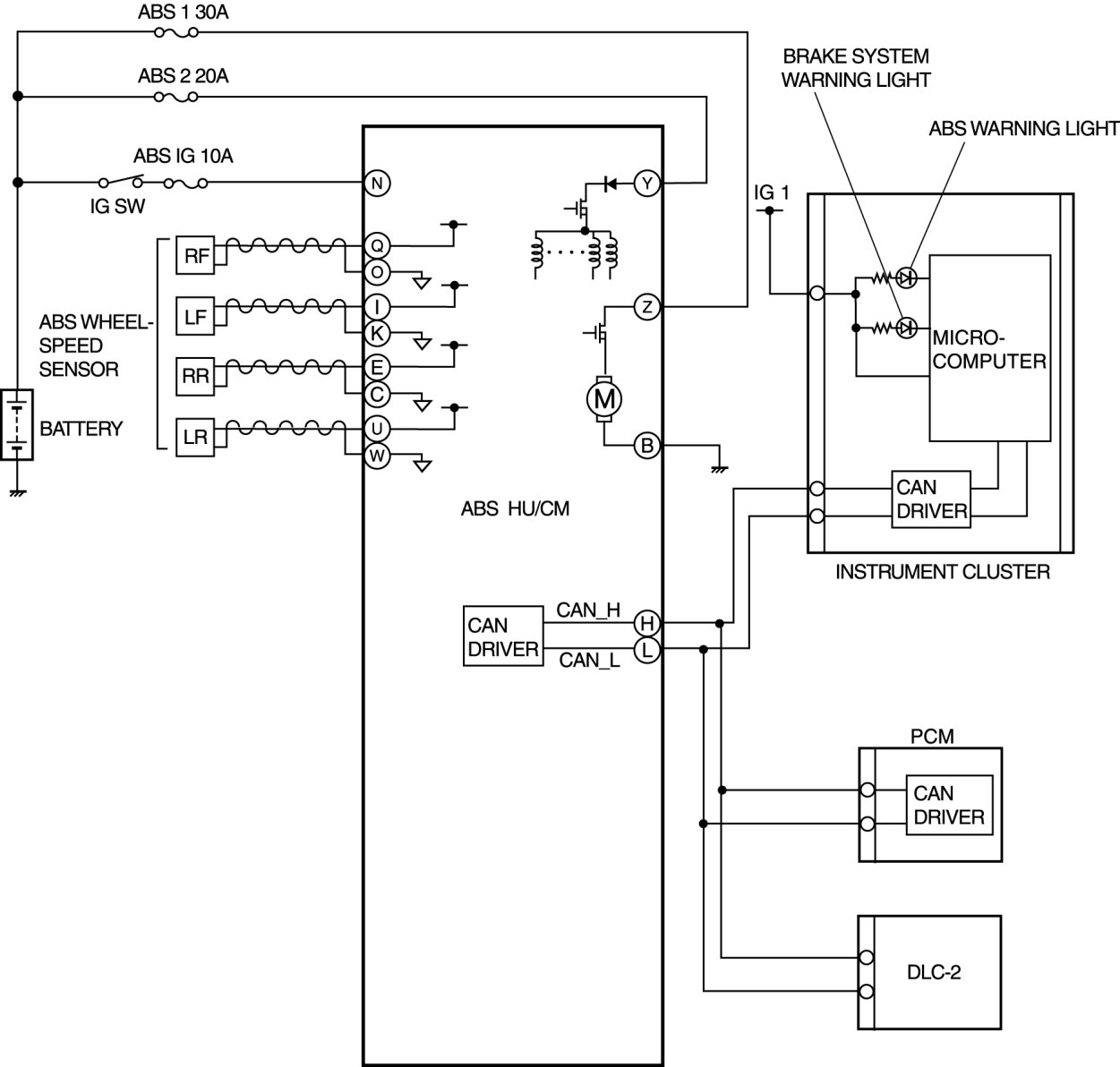

ABS SYSTEM WIRING DIAGRAM [ABS]
